SERVICE WORK ON THE CHASSIS 11
61
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid skin, eye and clothing contact with fuel.
– Immediately consult a doctor if you swallow fuel.
– Do not inhale fuel vapors.
– In case of skin contact, rinse the affected area with plenty of water.
– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
– Change your clothing in case of fuel spills on them.
– Keep fuels correctly in a suitable canister, and out of the reach of children.

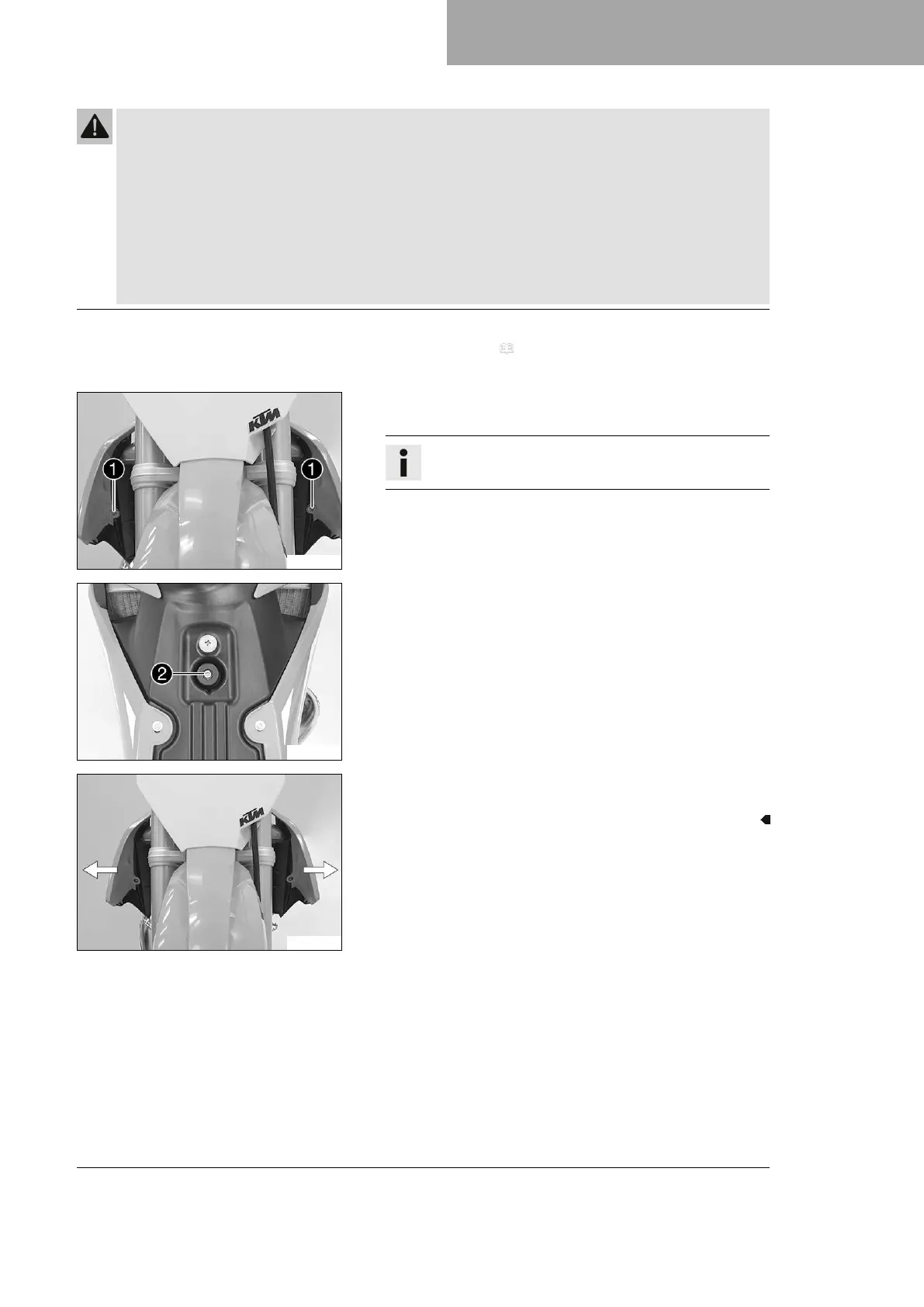

Preparatory work
– Remove the seat. ( p. 56)
– Turn tap handle of the fuel tap to the OFF position.
V00842-10
Main work
– Pull off the fuel hose.
Info
Remaining fuel may flow out of the fuel hose.
–
Remove screws
1
.
V00843-10
–
Remove screw
2
with the rubber bushing.
– Remove the hose from the fuel tank breather.
V00844-10
– Pull both spoilers off laterally from the radiator bracket and lift
off the fuel tank.

KTM 85 SX 2022 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XACT Monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	890 mm
Weight (without fuel)	68 kg
Front Tire	70/100-17"
Rear Tire	90/100-14"
Front Suspension	WP XACT USD, Ø 43 mm
Front Wheel Diameter	17 in
Rear Wheel Diameter	14 inches
Fuel Tank Capacity	5.2 liters
Fuel System	Keihin PWK 28
Wheelbase	1, 290 mm
Frame	Central double-cradle, chromoly steel
