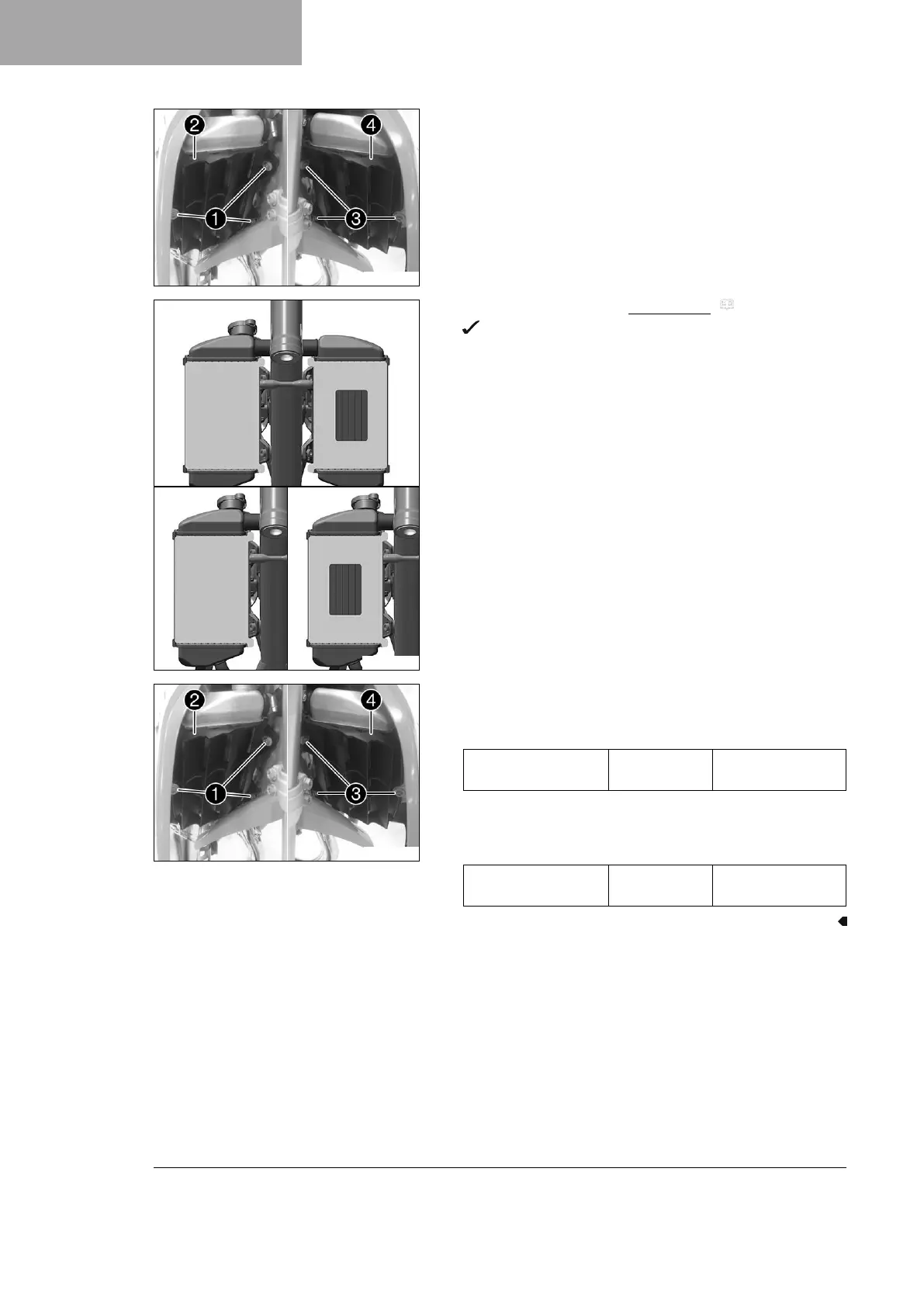

14 COOLING SYSTEM
92
V00886-10
–
Remove screws
1
.
–
Remove right radiator shield
2
.
–
Remove screws
3
.
–
Remove left radiator shield
4
.
H02356-01
–
Position the corresponding radiator cover ( p. 91).
The holding lugs point toward the frame.
V00886-10
–
Position left radiator shield
4
.
–
Mount and tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Position right radiator shield
2
.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 85 SX 2022 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	84.9 cm³
Starter	Kickstarter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XACT Monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Seat Height	890 mm
Weight (without fuel)	68 kg
Front Tire	70/100-17"
Rear Tire	90/100-14"
Front Suspension	WP XACT USD, Ø 43 mm
Front Wheel Diameter	17 in
Rear Wheel Diameter	14 inches
Fuel Tank Capacity	5.2 liters
Fuel System	Keihin PWK 28
Wheelbase	1, 290 mm
Frame	Central double-cradle, chromoly steel
