ELECTRIC
AL
SYSTEM
132
Tip
Insert
a
spare
fuse
so
that
it
is
available
if
needed.
–
Close
the
fuse
box
cover.
–
Mount
the
seat.
(
p.
84)
13.7

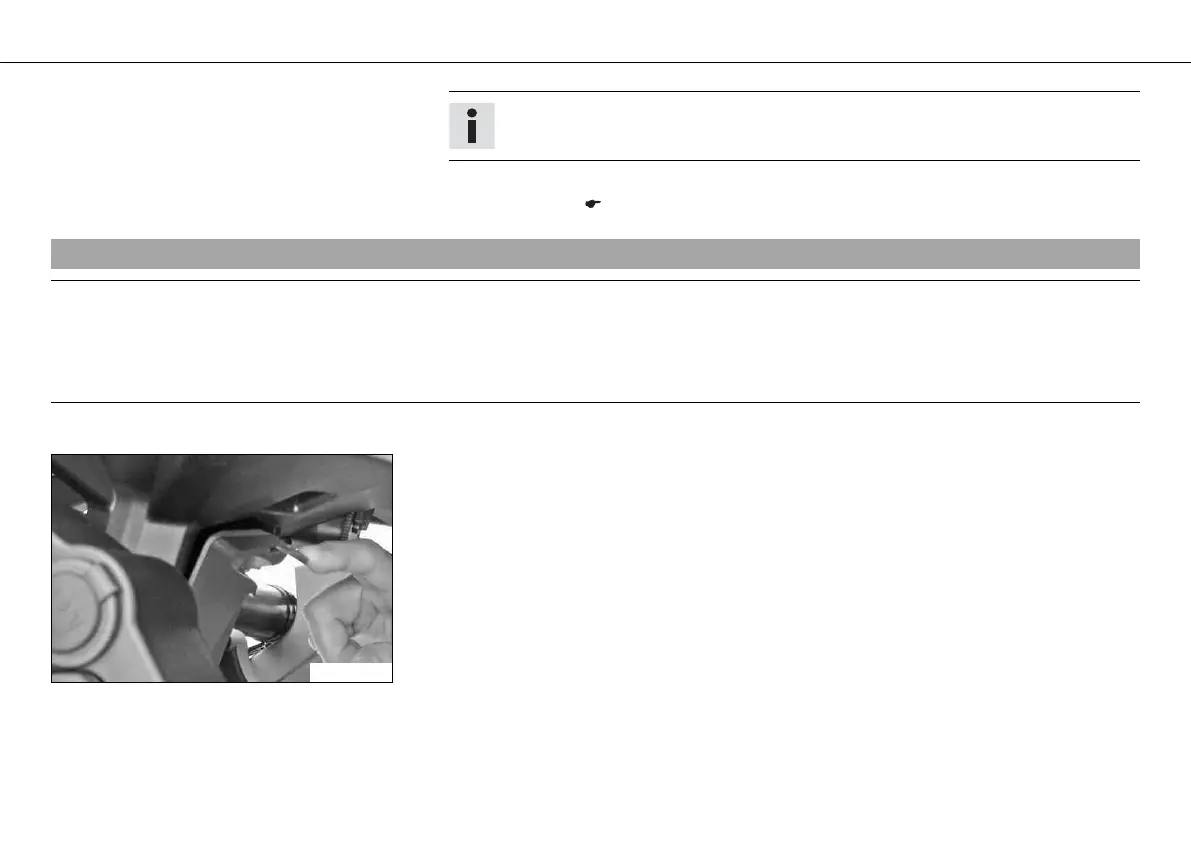

Changing
the
headlight
bulb
Note
Damage
to
reflector
Redu
ced
luminance.
–
Grease
on
the
lamp
will
evaporate
due
to
the
heat
and
be
deposited
on
the
reflector.
Clean
the
lamp
and
keep
it
free
of
grease
before
mounting.
–
Switch
off
all
power
consumers
and
switch
off
the
engine.
B00668-01
–
Remove
the
cover.
133
135
