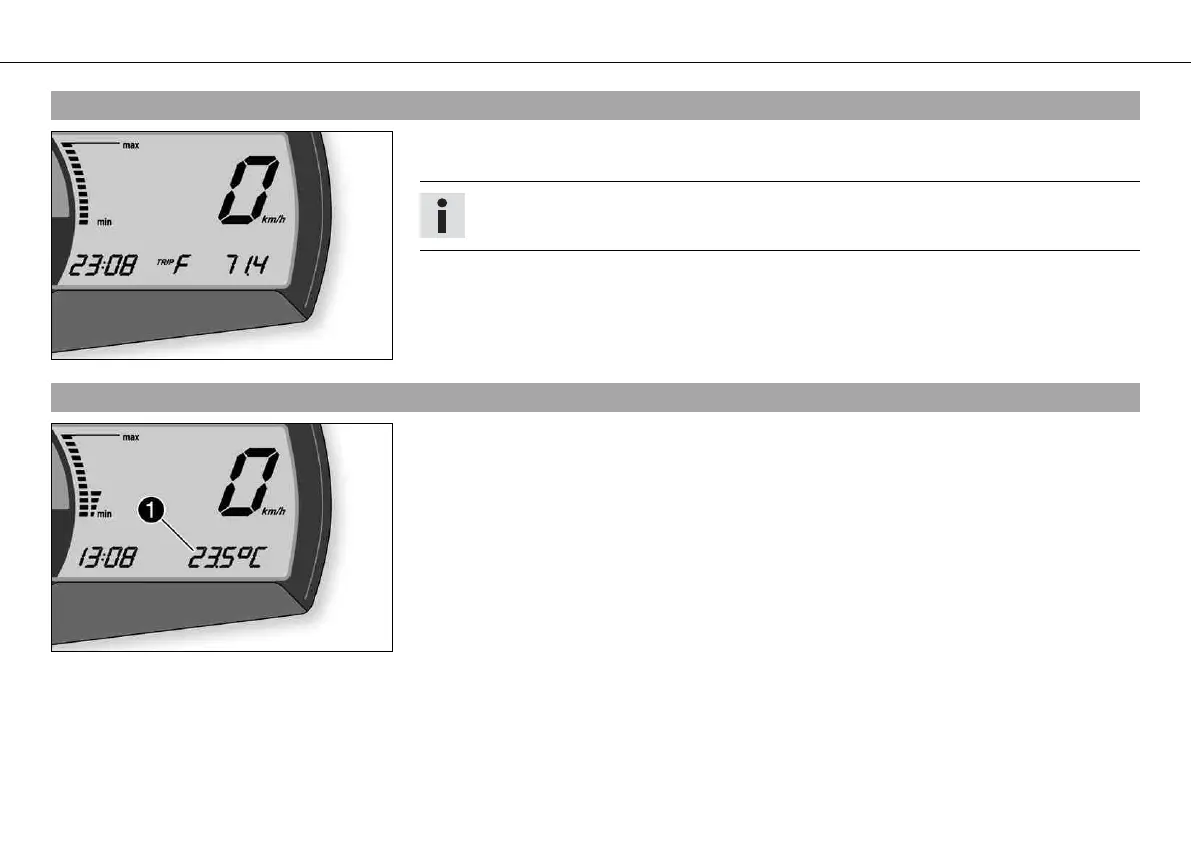

CONTROL
S
43
5.24
Combination
instrument
-
TRIP
F
display
400842-01
If
the
fuel
level
drops
to
the
reserve
mark,
the
display
automatically
changes
to
TRIP
F
and
starts
to
count
from
0.0
,
regardless
of
the
previous
display
mode.
Info
The
low
fuel
warning
lamp
lights
up
in
parallel
to
the
TRIP
F
display.
5.25
Combination
instrument
-
ambient
temperature
display
400893-13
The
ambient
temperature
is
displayed
in
°C
or
°F
.
44
46
