TUNING THE CHASSIS 77

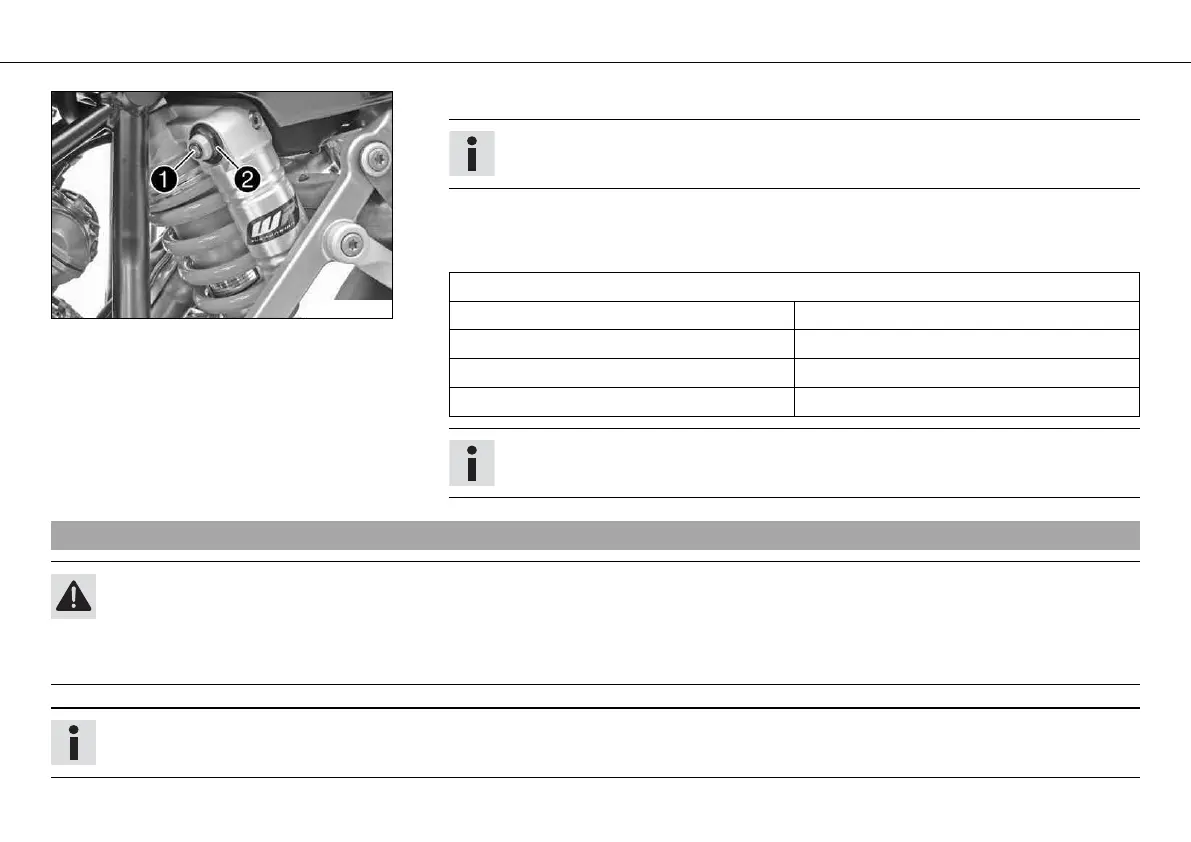

B00619-10
– Turn adjusting screw clockwise with a screwdriver up to the last perceptible click.
Info
Do not loosen nut !
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
Guideline
Compression damping, low-speed
Comfort 25 clicks
Standard 20 clicks
Sport 15 clicks
Full payload 15 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damping.
9.7Adjusting the high-speed compression damping of the shock absorber
Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will
be glad to help.)
Info
The high-speed setting can be seen during the fast compression of the shock absorber.
