Kubota L275 User Manual

Wiring Diagrams
KUBOTA
Head lamp
12V35/35W
Head lamp
12V 35/35W
Wire harness 3
Starter
Wire harness 2
Alternator
3R
Oil pressure switch
WG
WB
0B5R
WB
WG
Or
0.85R
2BW
Color of Wire Harness
B
W
R
G
Or
Y
Br
L
WB
BW
WR
WG
RB
RW
GB
GW
LW
Black
White
Red
Green
Orange
Yellow
Brown
Blue
White/Black
Black/White
White/Red
White/Green
Red/Black
Red/White
Green/Black
Green/Whiie
Blue/White
0 ,
Safety
switch
^ r-—I
"•*" ,1 I Horn switch
LW c ac 3 L f " I (Optional)
Glow plug
WB
Horn
(Optional)
WG
WR
Battery charge
lamp 12V 3.4W
BW
3BW
Fuse box
\
Regulator
Glow plug
indicator
Hazard unit
GB
Wire harness 1
RB
GB
Wire harness 7
Wire harness 5
0--
Wire
harness 6 [
0--.
Hazard lamp
(Optional)
12V 32 cp.
Tail lamp
(Optional)
12V 8W
Working lamp
(Optional)
12V 35W
Tail lamp
(Optional)
12V 8W
Hazard lamp
(Optional)
12V 32 cp.

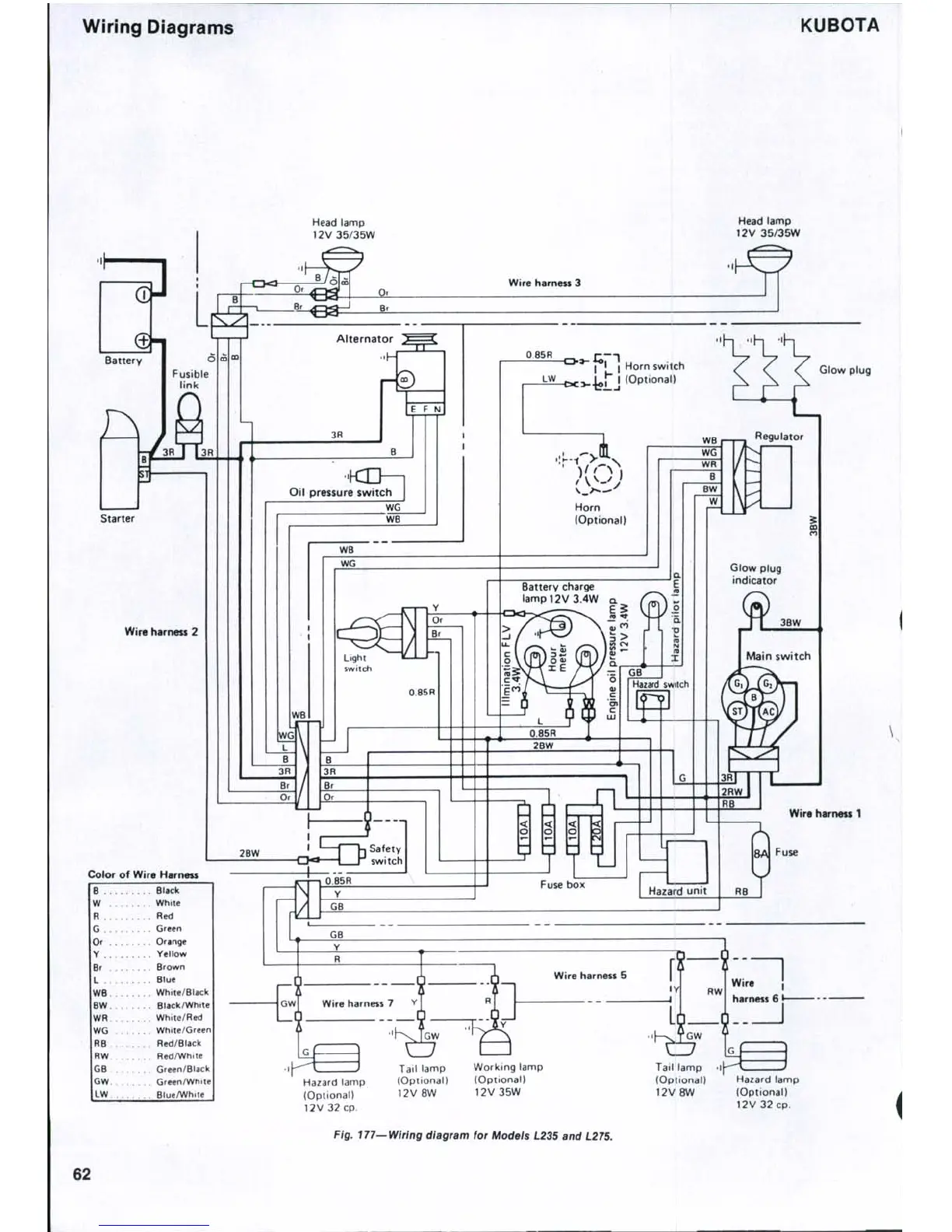

Fig. 177—Wiring diagram for Models L23S and L275.
62

Kubota L275 Specifications

General

Engine Type	Diesel
Engine Power	27 hp
Cylinders	3
Transmission Type	Gear
Number of Gears	8 forward and 2 reverse
Type	Utility tractor
PTO Power	22 hp
Hydraulic System	Open center
3-Point Hitch	Category I
Drive	2WD
Transmission	8-speed
