3. Pull the cab door all the way to the lock at the back
of cab.

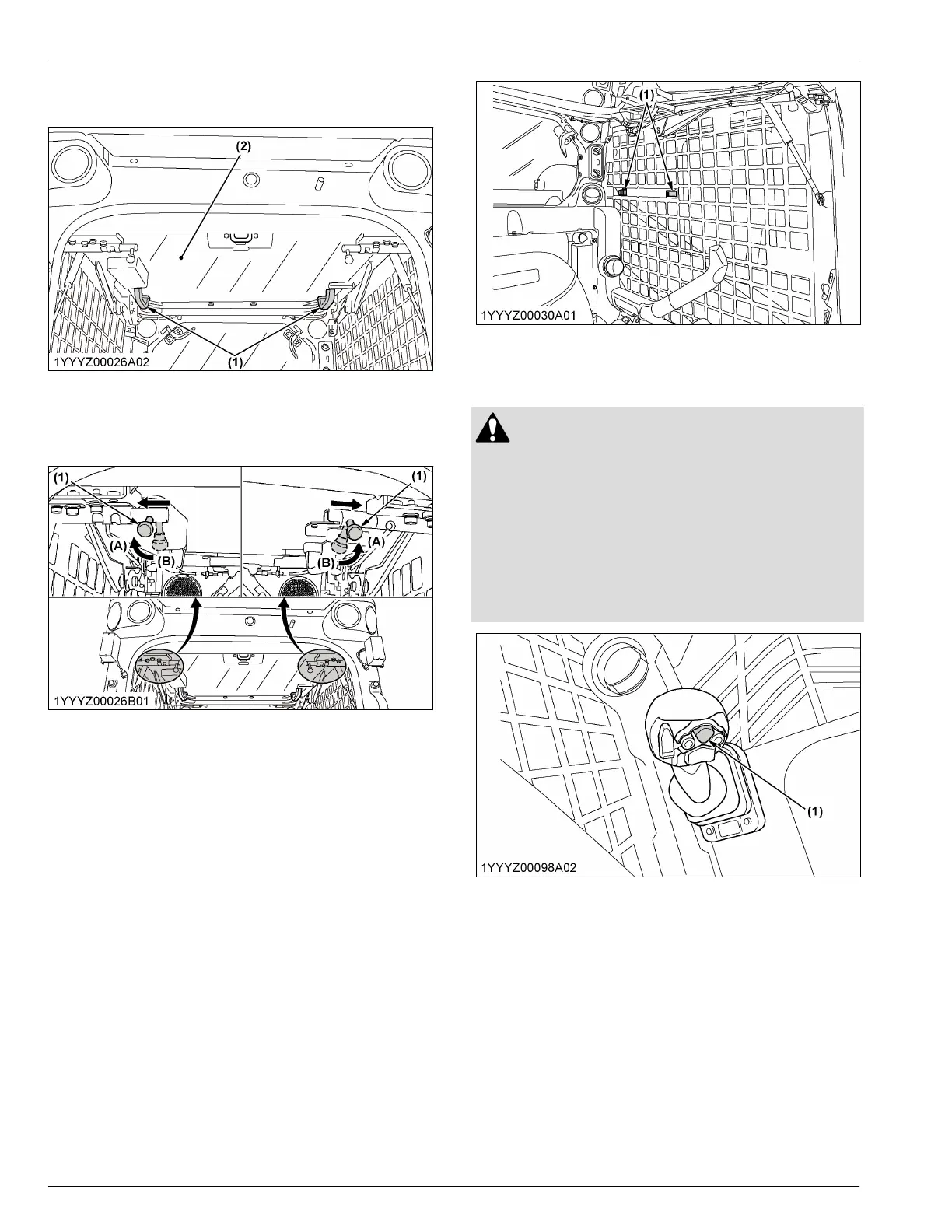

(1) Handle (2) Cab door
4. After opening the cab door, lock it in place by
moving both lock pins to outside to prevent the cab
door from inadvertently falling.
(1) Lock pin (A) Lock
(B) Unlock
Closing the cab door from inside
1. Before closing the cab door, unlock it in place by
moving both lock pins to inside.
2. Hold the handles tightly with both hands.
3. Pull the handles down and forward to move the cab
door from the horizontal to the vertical position.
4. Push the cab door until it is latched in the cab door
opening.
4. Opening and closing the side cab
window [Closed cab model]
1. Pull the grip to release the lock, and pull side cab
window to open it to the rear.
2. To close the side window, slide it forward until the
lock snaps into the window frame.
(1) Grip
OPERATION OF THE ENGINE
WARNING
To avoid personal injury or death:
• To avoid the danger of exhaust-fumes-
poisoning, do not operate the machine in a
closed building without proper ventilation.
• Always start the engine from the operator's
seat. Do not start the engine while standing
next to the machine. Before starting the engine,
sound the horn to get the attention of persons
standing nearby.
(1) Horn switch
IMPORTANT :
• Do not use starting fluid or ether.
• In order not to overload the battery and starter,
avoid engaging the starter for more than
10 seconds.
• If the engine does not start in 10 seconds,
please wait 20 seconds or more, before
restarting.
OPERATION CAB TYPE MACHINE
