Kyocera FS-1060DN User Manual

2M2/2M3
2-2-3
(2) Switches and sensors

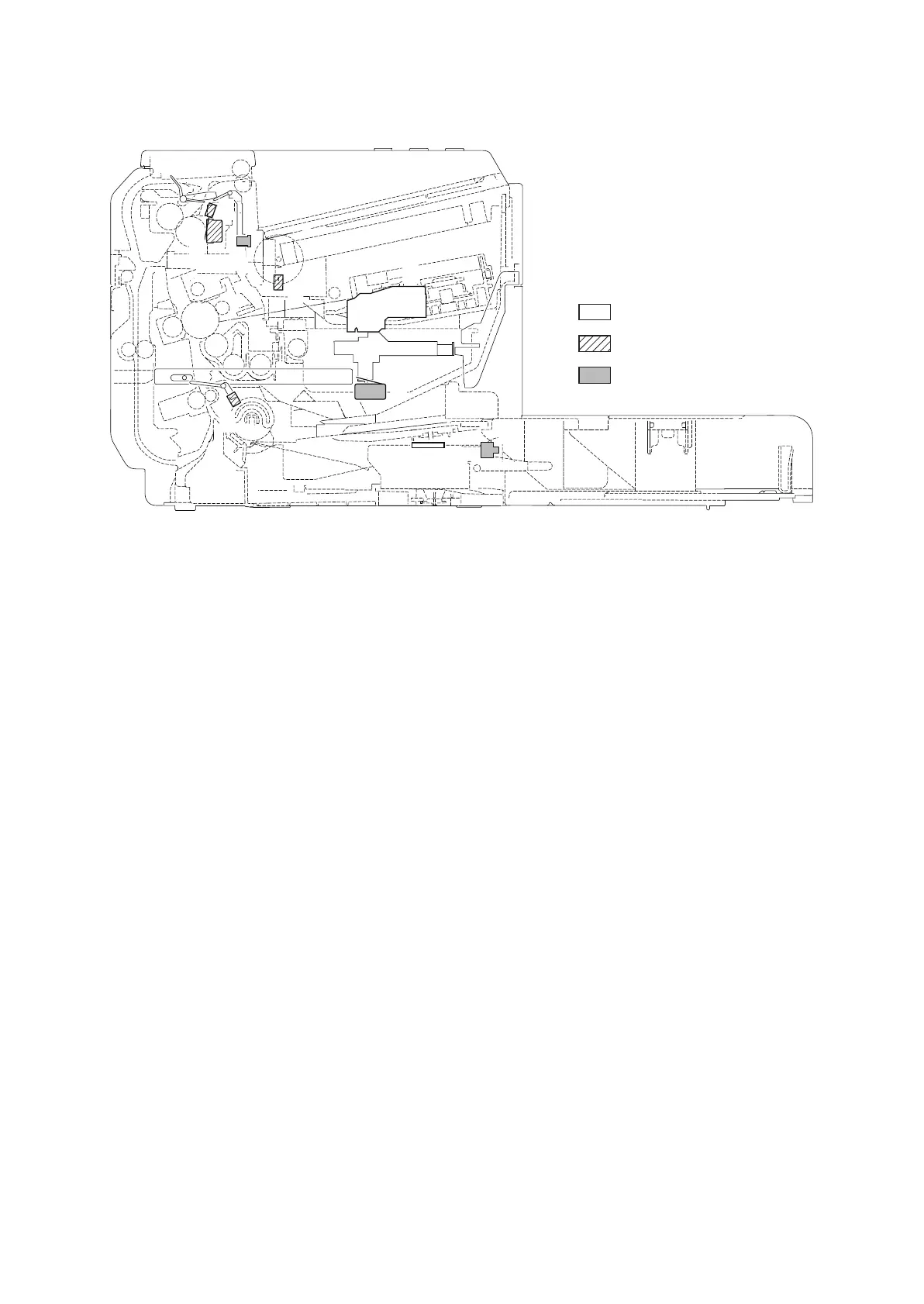

Figure 2-2-2 Switches and sensors
1. Cover switch (CSW).............................. Shuts off 24 V DC power line when the front cover and rear cover
is opened.
2. Registration sensor (RS)....................... Detects the timing of paper conveying.
3. Toner sensor (TS) ................................. Detects the quantity of toner in a toner container.
4. Motor count sensor (MCS).................... Detects revolution pulses of the motor.
5. Duplex sensor (DUS)*........................... Detects a paper misfeed in the duplex section.
6. Fuser thermistor (FTH) ......................... Measures the heat roller temperature.
7. Fuser thermostat (FTS)......................... Shuts off the power source to the fuser heater lamp when the heat
roller reaches extremely high temperature.
8. Outer temperature sensor (OTEMS)..... Detects the outside temperature.
9. Power switch (PSW) ............................. Turns ON/OFF the AC power source.
*: 25/26 ppm model only.
1
2
3
4
5
6
7
8
Machine inside
Machine left
Machine right
9

Kyocera FS-1060DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Printing colors	Black
Maximum duty cycle	15000 pages per month
Number of print cartridges	1
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Processor model	ARM926EJ
Maximum internal memory	- MB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	2
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (printing)	134 W
Product color	Black, White
Networking features	Fast Ethernet
Networking standards	IEEE 802.3, IEEE 802.3u
Compatible operating systems	Windows Vista 32/64 bit\\r Windows XP 32/64 bit\\r Windows 7 32/64 bit\\r Windows Server 2003\\r Windows Server 2008 32/64 bit\\r Mac OS X

Weight and Dimensions

Dimensions (WxDxH)	358 x 276 x 241 mm
