Kyocera FS-1060DN User Manual

2M2/2M3
1-5-7
1-5-4 PWBs

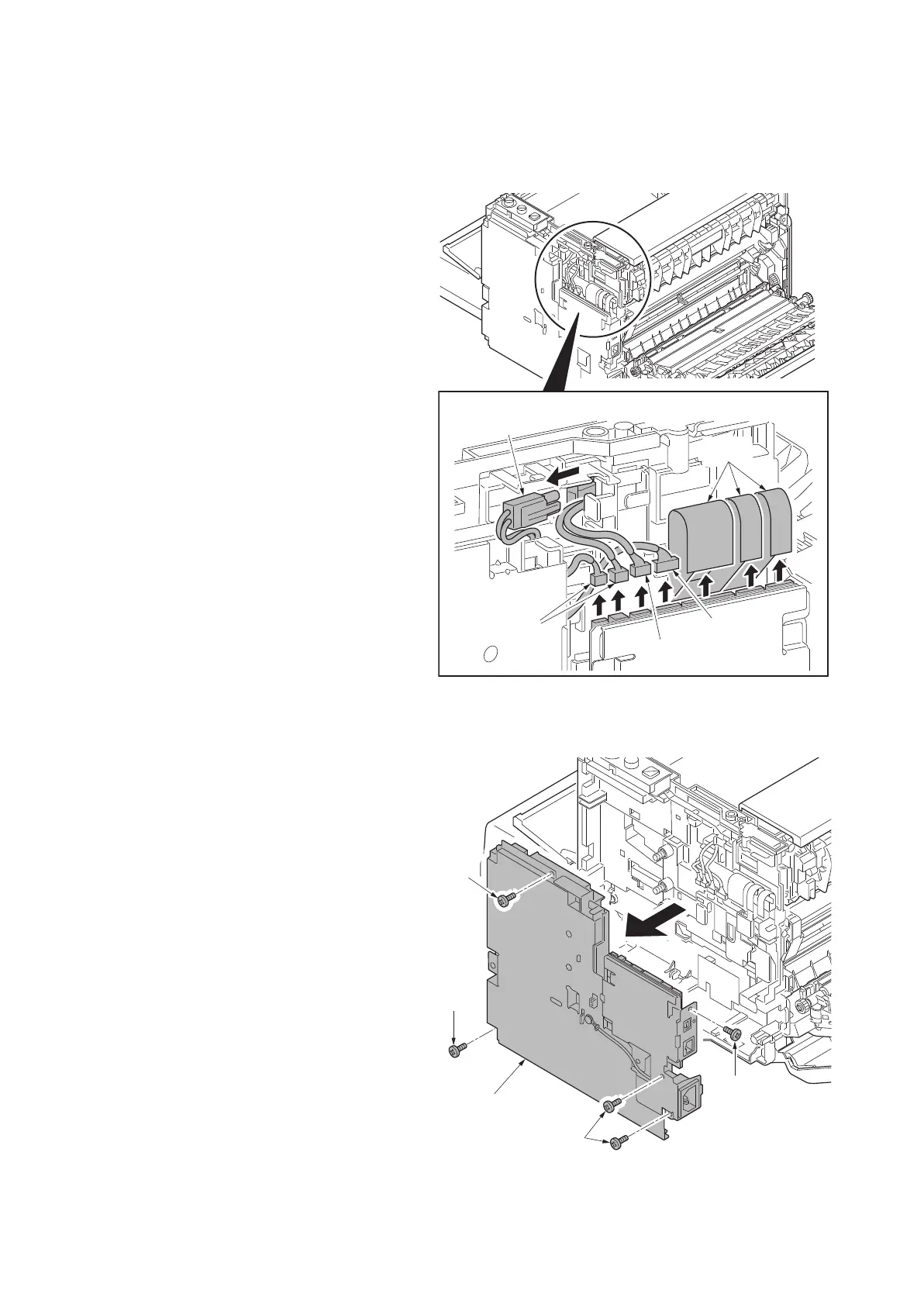

(1) Detaching and refitting the main PWB,high voltage PWB and power source PWB
Procedure
1. Remove the top cover and right cover
(see page 1-5-3,1-5-4).
2. Remove connector from the fuser
heater.
Remove the four connectors (25/26
ppm model only) and the three FFC
connectors from the main PWB.
*: 20/21-ppm model has only three
connector.
Figure 1-5-9
3. Remove five screws and then remove
the control unit.
Figure 1-5-10
FFC
Connectors
Connector
Connector
(Fuser heater)
Connector
(25/26 ppm model only)
Screw
Screw
Screws
Screw
Controller
unit

Kyocera FS-1060DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Printing colors	Black
Maximum duty cycle	15000 pages per month
Number of print cartridges	1
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Processor model	ARM926EJ
Maximum internal memory	- MB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	2
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (printing)	134 W
Product color	Black, White
Networking features	Fast Ethernet
Networking standards	IEEE 802.3, IEEE 802.3u
Compatible operating systems	Windows Vista 32/64 bit\\r Windows XP 32/64 bit\\r Windows 7 32/64 bit\\r Windows Server 2003\\r Windows Server 2008 32/64 bit\\r Mac OS X

Weight and Dimensions

Dimensions (WxDxH)	358 x 276 x 241 mm
