Kyocera FS-1060DN User Manual

2M2/2M3
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MF
tray (Manual feed tray) paper feed unit that feeds paper from the MF tray(25/26 ppm model), and the paper
conveying section that conveys the fed paper to the transfer/separation section.
(1) Cassette paper feed /paper conveying section
Cassette paper feed section consists of the paper holder with the cassette operation plate, and the paper feed
pulley and the separation pad, for extracting and conveying the paper. Paper is fed out of the cassette by the
rotation of the paper feed pulley.
The paper conveying section conveys paper to the transfer/separation section as paper feeding from the cas-
sette or MF tray, or as paper refeeding for duplex printing (25/26 ppm model). Paper by feeding is conveyed
by the upper registration roller and lower registration roller to the transfer/separation section.The timing to
start image formatting by laser is triggered by the regist sensor (RS) and in synchronization with the paper.

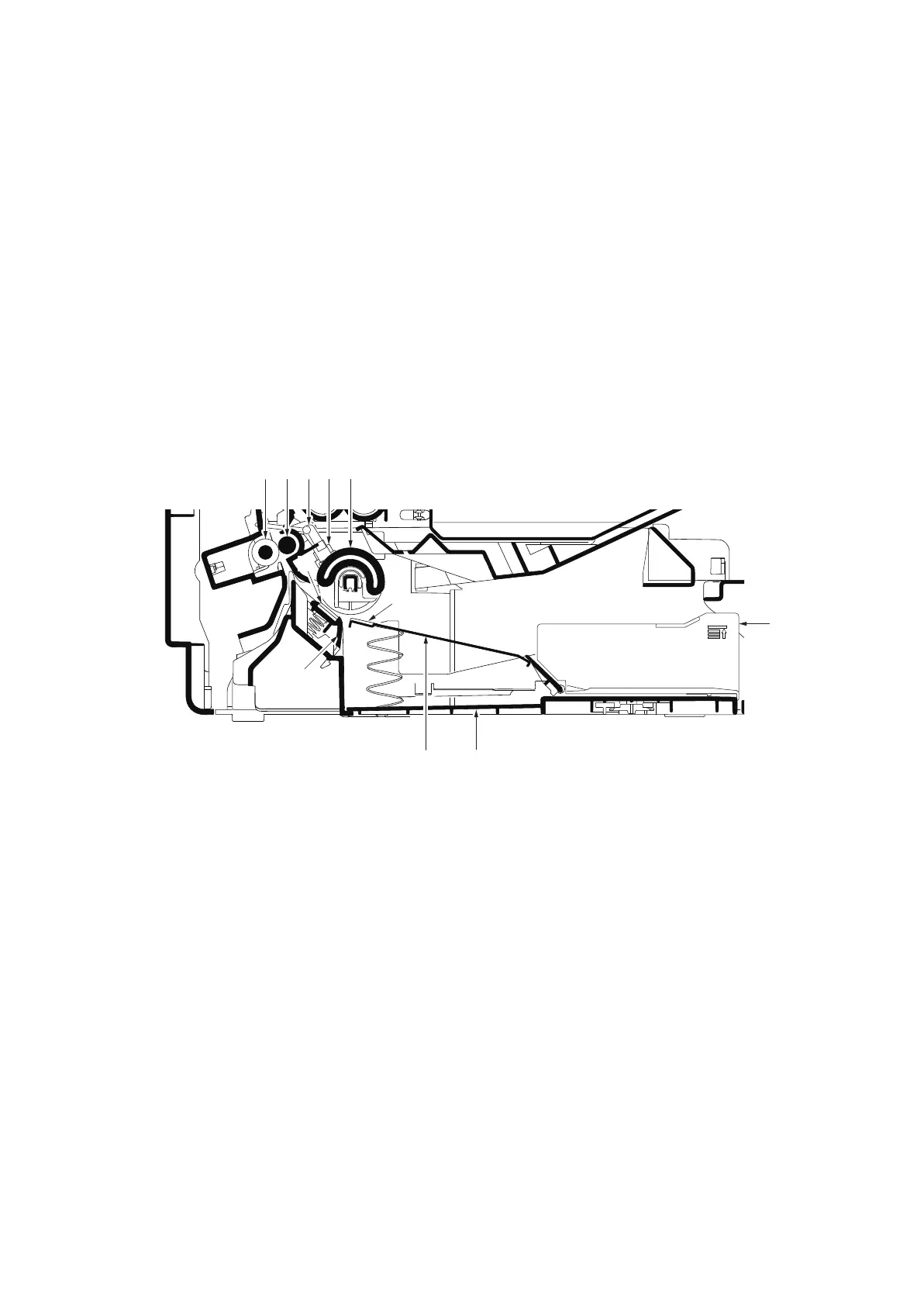

Figure 2-1-1 Cassette paper feed section
1
2
4
3
5 6
7
98 10 11
1. Paper feed pulley
2. Separation pad
3. Separation pad holder
4. Cassette operation plate
5. Bottom pad
6. Cassette base
7. Guide R/F
8. Lower registration roller
9. Upper registration roller
10. Actuator (regist deflection sensor)
11. Registration sensor (RS)

Kyocera FS-1060DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Printing colors	Black
Maximum duty cycle	15000 pages per month
Number of print cartridges	1
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Processor model	ARM926EJ
Maximum internal memory	- MB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	2
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (printing)	134 W
Product color	Black, White
Networking features	Fast Ethernet
Networking standards	IEEE 802.3, IEEE 802.3u
Compatible operating systems	Windows Vista 32/64 bit\\r Windows XP 32/64 bit\\r Windows 7 32/64 bit\\r Windows Server 2003\\r Windows Server 2008 32/64 bit\\r Mac OS X

Weight and Dimensions

Dimensions (WxDxH)	358 x 276 x 241 mm
