Kyocera FS-1060DN - 1-5-5 Component Removal and Installation

2M2/2M3
1-5-12
1-5-5 Others
(1) Detaching and refitting the laser scanner unit
Procedure
1. Remove the top cover (see page 1-5-3).
2. Remove the connectors and the FFC
from the main PWB.

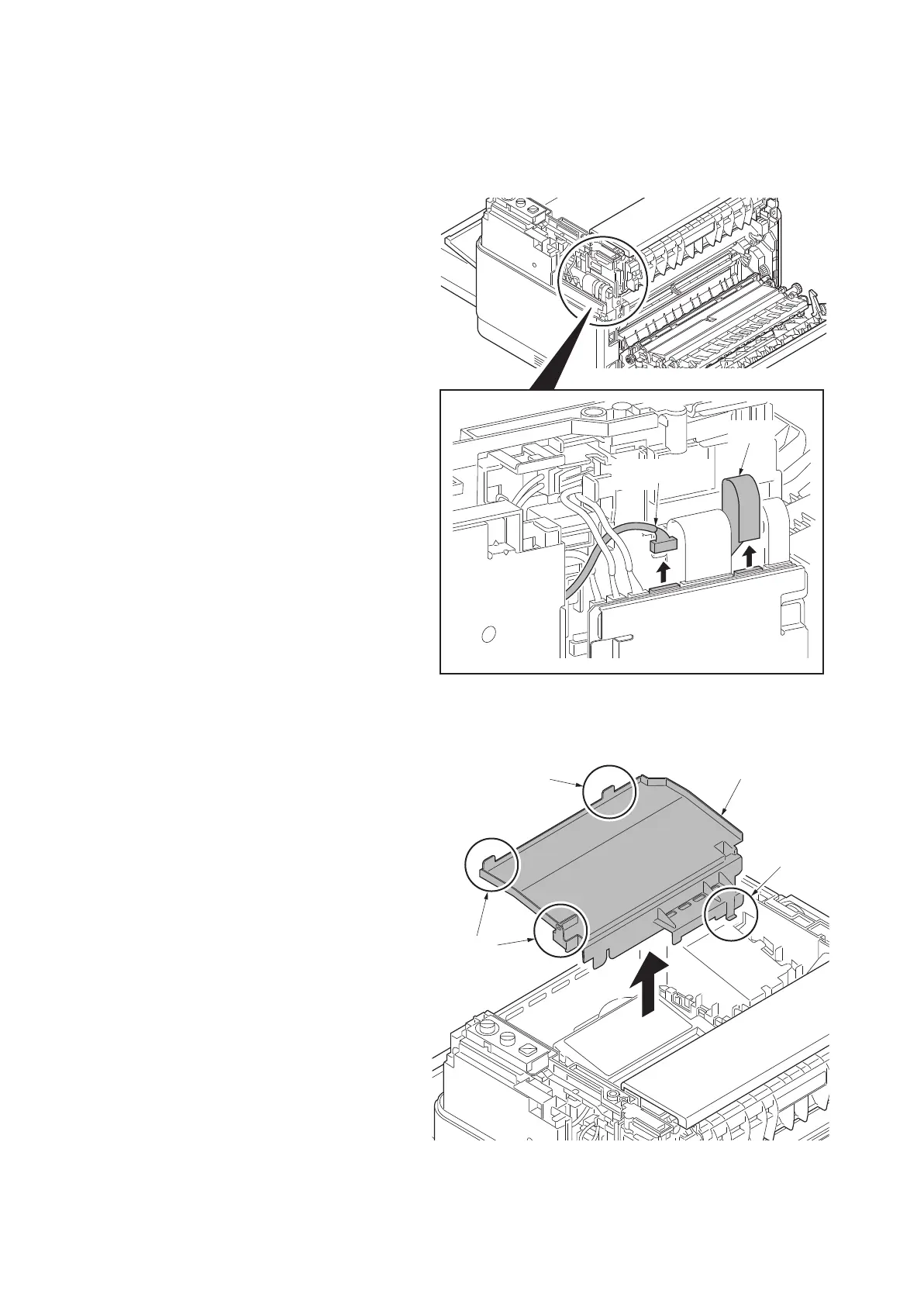

Figure 1-5-19
3. Unhook the four hooks and then
remove the upper LSU cover.
Figure 1-5-20
FFC
Connector
Hook
Hook
Hooks
Upper LSU cover
