Kyocera FS-1060DN User Manual

2M2/2M3
1-4-2
(2) Paper misfeed detection condition

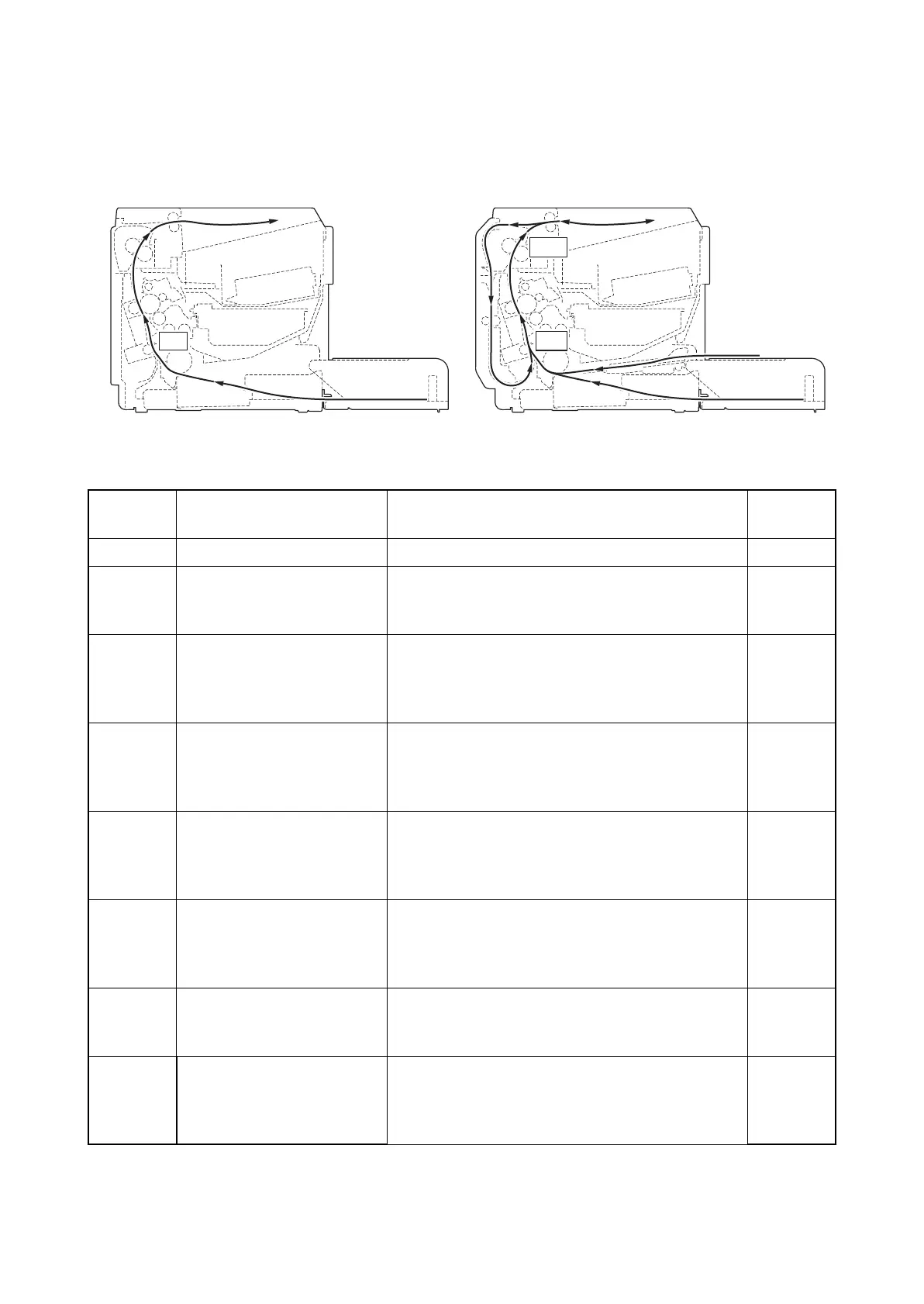

Figure 1-4-2 Paper jam location
Code Contents Conditions
Jam
location*
0111 Rear cover open Cover is opened during printing. -
0508 No paper feed from duplex
section(25/26ppm model)
Registration sensor (RS) does not turn on in 2.4
seconds after the duplex sensor (DUS) has turned
on, during paper is feed from the duplex section.
A
0511 Multiple sheets in cassette Registration sensor (RS) does not turn off in (3.4/
2.7)*1 seconds after the registration sensor (RS)
has turned on, during paper is feed from the cas-
sette or MF tray.
B
0518 Multiple sheets in duplex
section(25/26ppm model)
Registration sensor (RS) does not turn off in 2.7
seconds after the registration sensor (RS) has
turned on, during paper is feed from the duplex
section.
B
4020 Registration sensor on
(Power up or warm up)
Duplex sensor (DUS) does not turn on in 1.0 sec-
onds after the registration sensor (RS) has turned
on, during paper is feed from the cassette or MF
tray.
B
4201 Duplex sensor non arrival
jam(25/26ppm model)
Duplex sensor (DUS) does not turn on in 1.0 sec-
onds after the registration sensor (RS) has turned
on, during paper is feed from the cassette or MF
tray.
B,C
4208 Duplex sensor non arrival
jam(25/26ppm model)
Duplex sensor (DUS) does not turn on in 1.0 sec-
onds after the registration sensor (RS) has turned
on, during paper is feed from the duplex section.
A
4211 Duplex sensor stay jam(25/
26ppm model)
Duplex sensor (DUS) does not turn off in 1.0 sec-
onds after the registration sensor (RS) has turned
off, during paper is feed from the cassette or MF
tray.
A
*: Refer to figure 1-4-1 for paper misfeed indication (see page 1-4-1).
RS
RS
DUS
20/21 ppm model 25/26 ppm model

Kyocera FS-1060DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Printing colors	Black
Maximum duty cycle	15000 pages per month
Number of print cartridges	1
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Processor model	ARM926EJ
Maximum internal memory	- MB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	2
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (printing)	134 W
Product color	Black, White
Networking features	Fast Ethernet
Networking standards	IEEE 802.3, IEEE 802.3u
Compatible operating systems	Windows Vista 32/64 bit\\r Windows XP 32/64 bit\\r Windows 7 32/64 bit\\r Windows Server 2003\\r Windows Server 2008 32/64 bit\\r Mac OS X
