Kyocera FS-1060DN User Manual

2M2/2M3
2-3-8
2-3-4 Operation panel PWB

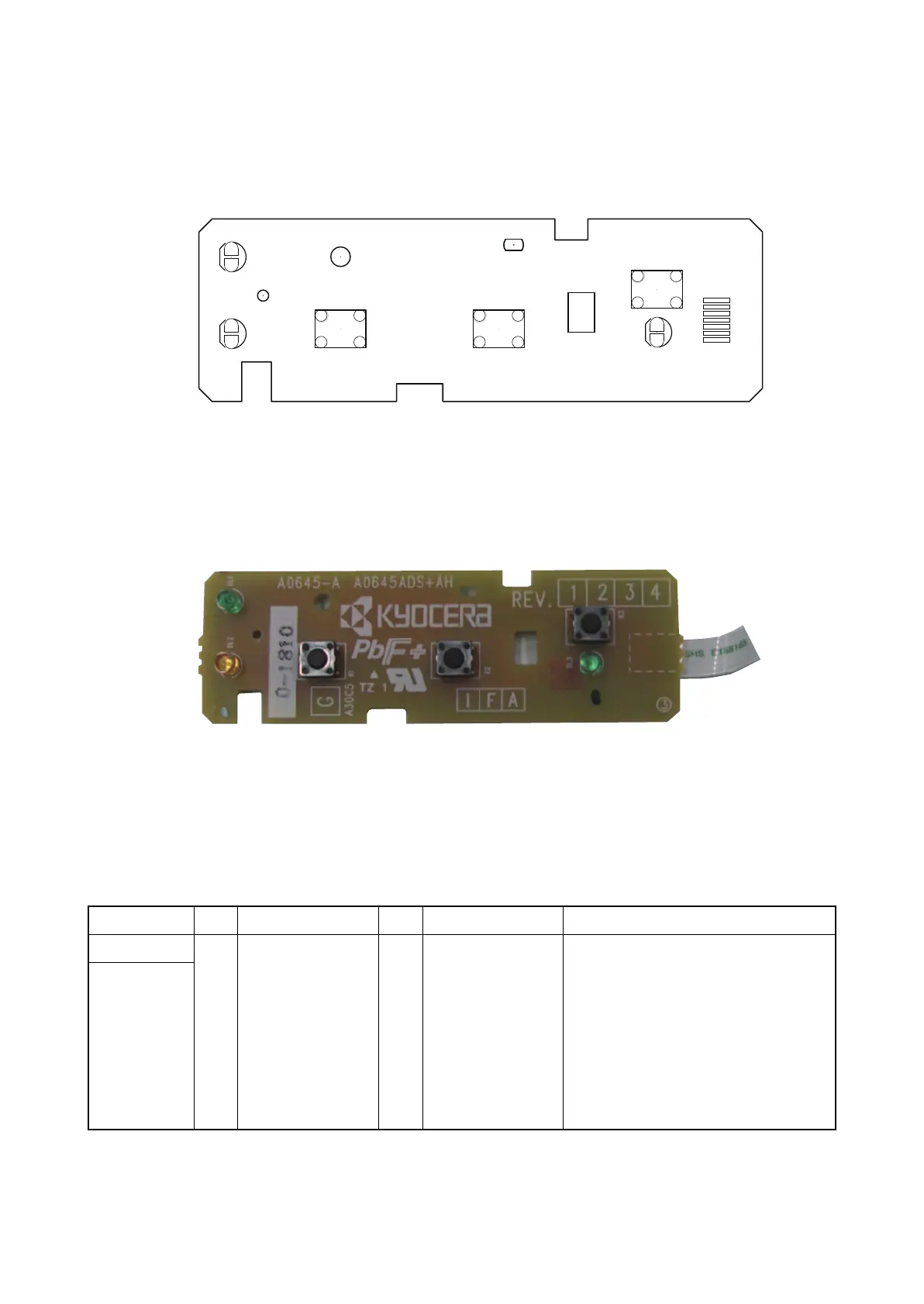

Figure 2-3-7 Operation panel PWB silk-screen diagram
Figure 2-3-8 Operation panel PWB
Connector Pin Signal I/O Voltage Description
YC1 1 KEY1 O 0/3.3 V DC KEY1: On/Off
Connected to
main PWB
2 KEY2 O 0/3.3 V DC KEY2: On/Off
3 KEY3 O 0/3.3 V DC KEY3: On/Off
4 LED1 I 0/3.3 V DC LED1: On/Off
5 LED2 I 0/3.3 V DC LED2: On/Off
6 LED3 I 0/3.3 V DC LED3: On/Off
7 GND - - Ground
1
7
LED3
KEY3
YC1
KEY2 KEY1
LED2 LED1

Kyocera FS-1060DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Printing colors	Black
Maximum duty cycle	15000 pages per month
Number of print cartridges	1
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols (IPv4)	TCP/IP
Processor model	ARM926EJ
Maximum internal memory	- MB
Sound pressure level (printing)	50 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Total number of input trays	2
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 220 g/m²
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (printing)	134 W
Product color	Black, White
Networking features	Fast Ethernet
Networking standards	IEEE 802.3, IEEE 802.3u
Compatible operating systems	Windows Vista 32/64 bit\\r Windows XP 32/64 bit\\r Windows 7 32/64 bit\\r Windows Server 2003\\r Windows Server 2008 32/64 bit\\r Mac OS X

Weight and Dimensions

Dimensions (WxDxH)	358 x 276 x 241 mm
