Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
1-6-2
1-6-2 Paper feed section

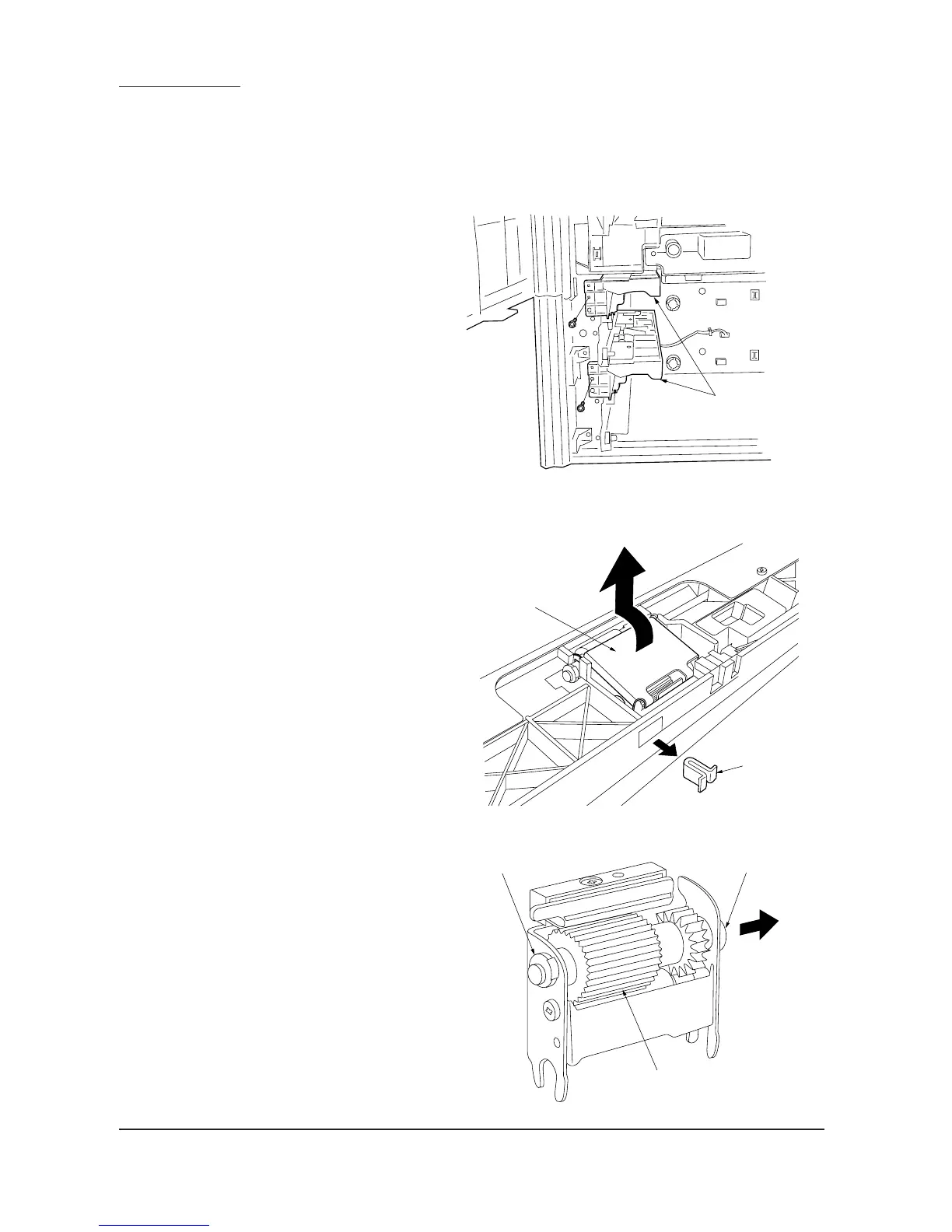

(1) Detaching and refitting the forwarding, paper feed and separation pulleys
Follow the procedure below to replace the forwarding, paper feed and separation pulleys.
Procedure
• Removing the primary paper feed units
1. Open the front cover and pull out the upper
and lower cassettes.
2. Remove the one screw from each of the
primary paper feed units and then the units.
Figure 1-6-1
• Removing the forwarding pulley
3. Remove the stopper.
4. Raise the forwarding pulley retainer in the
direction the arrow, and remove from the
primary paper feed unit.
Figure 1-6-2
5. Remove the stop ring, pull the forwarding
pulley shaft in the direction of the arrow, and
remove the forwarding pulley.
Figure 1-6-3
Primary paper feed units
Forwarding pulley
retainer
Stopper
Forwarding pulley shaft
Stop ring
Forwarding pulley

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
