Kyocera FS-9120DN Service Manual

1-4-1
FS-9120DN/9520DN
1-4-1 Service mode
The printer is equipped with the service mode that can be accessed in the manu system. The service mode is intended
for use by the service person for maintenance and service for the items explained in the following sections.

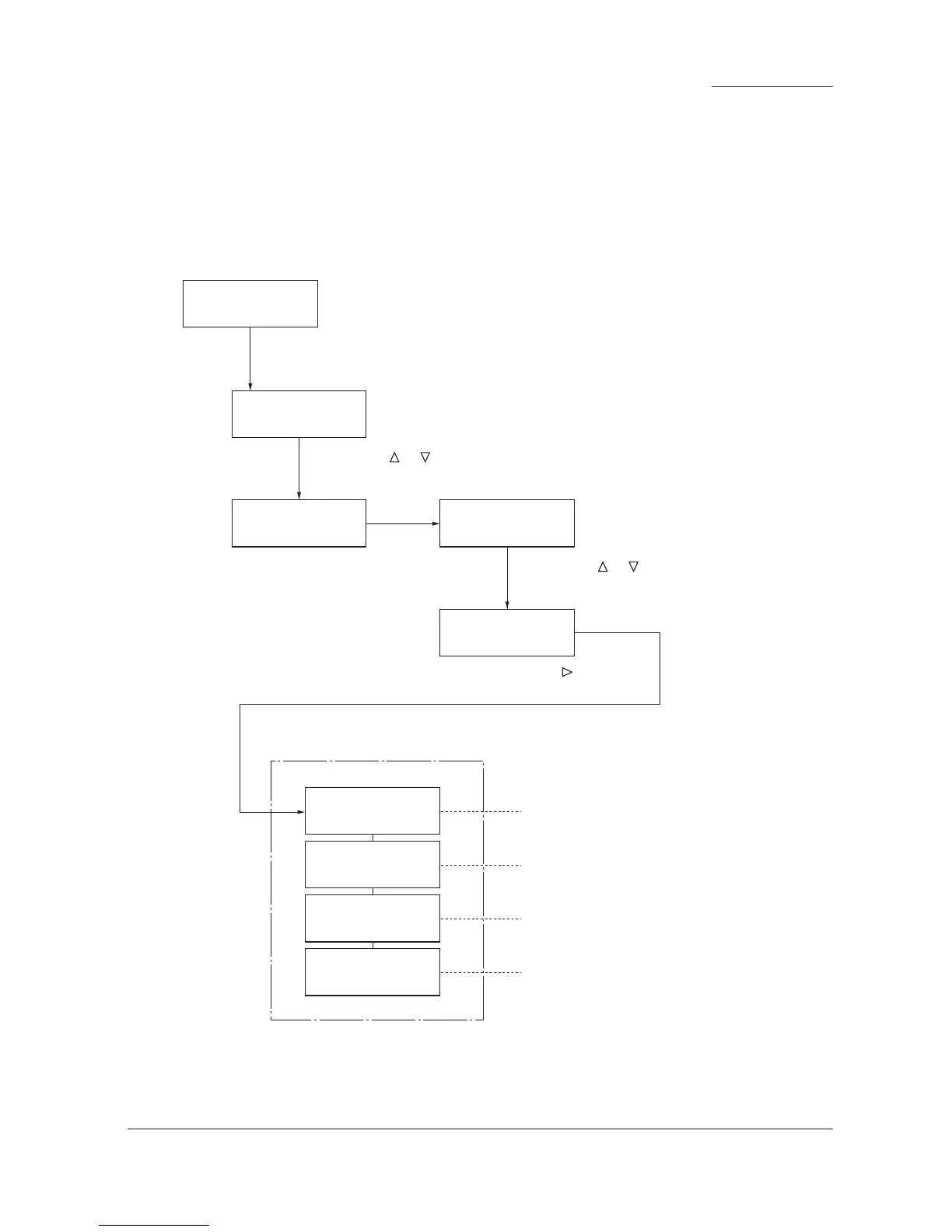

(1) Executing service mode
Ready
––– A4 PLAIN
1 Press the MENU key.
Message display
To print a status page for service purpose.
See page 1-4-2.
2 Press the or key several times
until [Others >] is displayed.
Print
Menu Map
>>Print
Status Page
>>Print
Event Log
Service mode items
3 Press the ENTER key.
5 Press the key.
To print a status page for event log.
See page 1-4-6.
To initial setting for the developer.
See page 1-4-8.
To performing a drum refreshing.
See page 1-4-8.
>>Developer
>>Drum
>MSG Language
English
Others >
4 Press the or key several times
until [>Service >] is displayed.
>Service >

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
