Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-2-4
(3) Motors

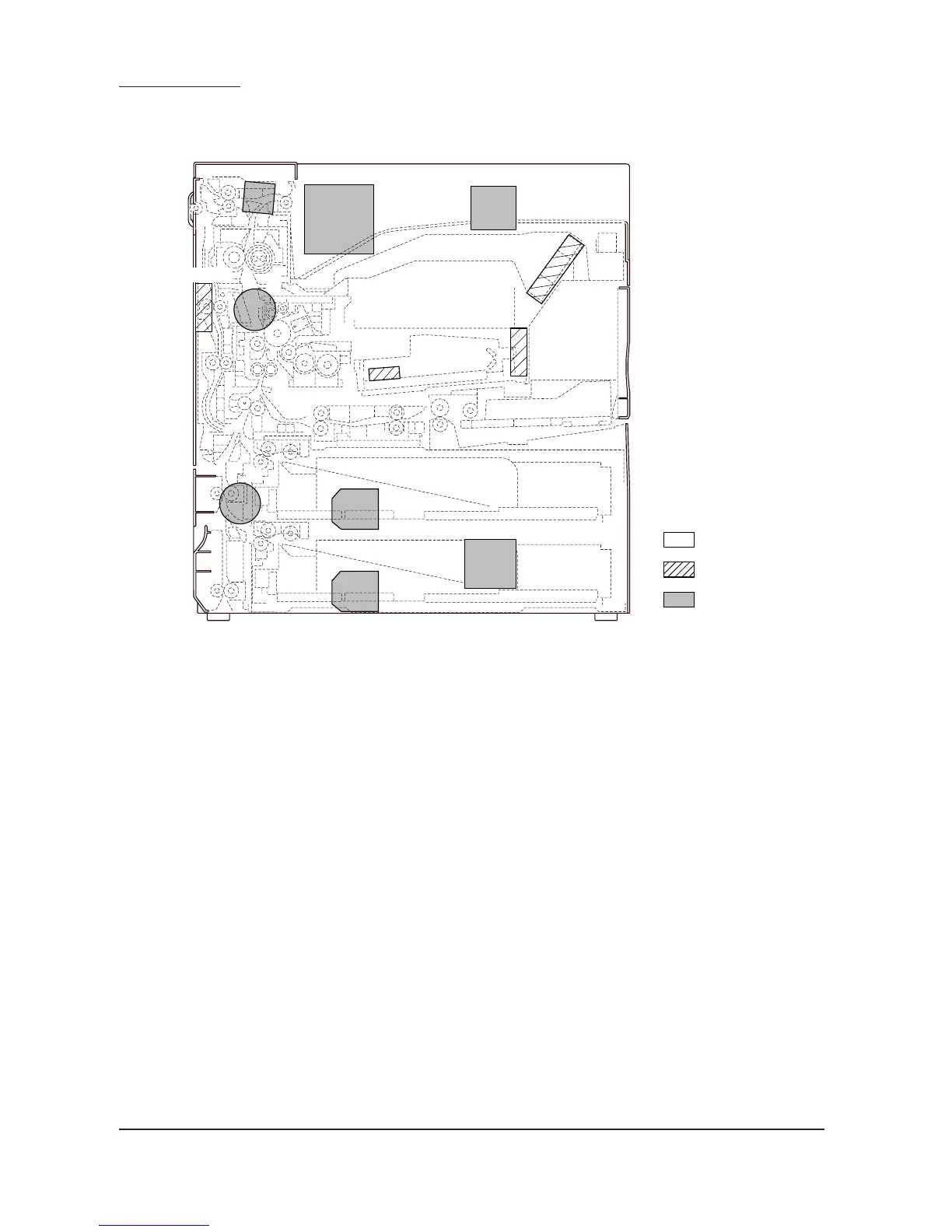

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Paper feed motor (PFM) .............................. Drives paper feed section.
3. Upper lift motor (LM-U) ................................ Drives upper cassette lift.
4. Lower lift motor (LM-L) ................................. Drives lower cassette lift.
5. Eject motor (EM) .......................................... Drives the eject section.
6. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
7. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
8. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior.
9. Cooling fan motor 4 (CFM4) ........................ Cools the machine interior (around the power supply unit).
10. Cooling fan motor 5 (CFM5) ........................ Cools the machine interior and supports paper transfer for duplex
printing.
11. Cooling fan motor 6 (CFM6) ........................ Cools the machine interior and supports paper transfer for duplex
printing.
12. Cooling fan motor 7 (CFM7) ........................ Cools the machine interior and supports paper transfer for duplex
printing.
13. Cooling fan motor 8 (CFM8) ........................ Cools the machine interior (around the main controller PWB).
14. Polygon motor (PM) ..................................... Drives the polygon mirror.
3
4
14
5
6
13
7
8
9
1
10,11,12
2
Machine front
Machine inside
Machine rear

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
