Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-2-2

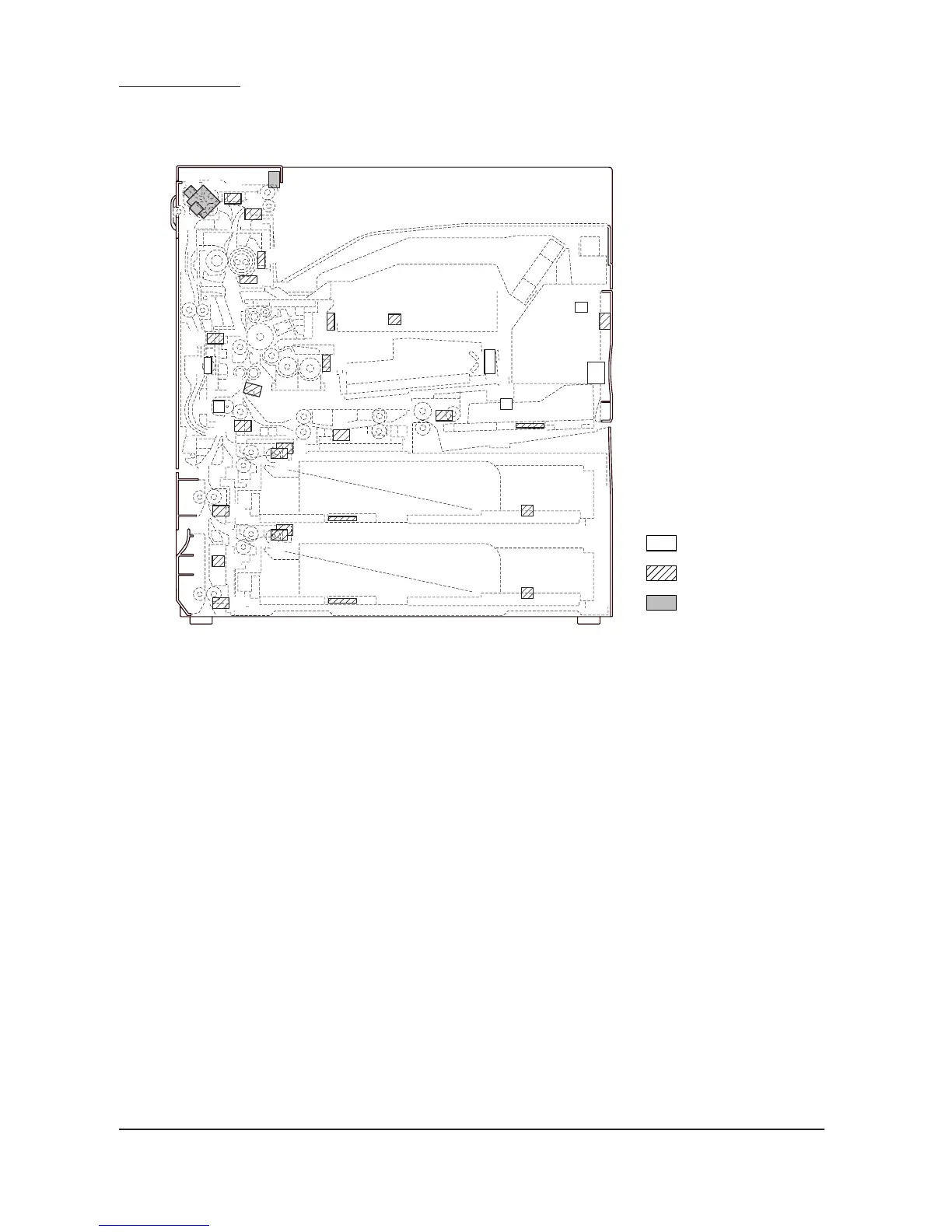

(2) Switches and sensors
Figure 2-2-2 Switches and sensors
1. Power switch (POWSW) .............................. Turns the AC power on and off.
2. Interlock switch (ILSW) ................................ Turns the AC power for the fuser heater on and off.
3. Safety switch 1 (SSW1) ............................... Breaks the safety circuit when the front cover is opened.
4. Safety switch 2 (SSW2) ............................... Breaks the safety circuit when the conveying unit is opened.
5. Upper paper switch (PSW-U)....................... Detects the presence of paper in the upper cassette.
6. Lower paper switch (PSW-L) ....................... Detects the presence of paper in the lower cassette.
7. Upper lift limit switch (LICSW-U).................. Detects the upper cassette lift reaching the upper limit.
8. Lower lift limit switch (LICSW-L) .................. Detects the lower cassette lift reaching the upper limit.
9. Upper paper size length switch
(PLSW-U)..................................................... Detects the length of paper in the upper cassette.
10. Lower paper size length switch
(PLSW-L) ..................................................... Detects the length of paper in the lower cassette.
11. Upper paper size width switch
(PWSW-U) ................................................... Detects the width of paper in the upper cassette.
12. Lower paper size width switch
(PWSW-L) .................................................... Detects the width of paper in the lower cassette.
13. MP paper switch (MPPSW) ......................... Detects the presence of paper on the MP tray.
14. MP paper size length switch
(MPPLSW) ................................................... Detects the length of paper on the MP tray.
15. MP paper size width switch
(MPPWSW) ................................................. Detects the width of paper on the MP tray.
16. Feed switch 1 (FSW1) ................................. Controls feed clutch 1 drive timing.
17. Feed switch 2 (FSW2) ................................. Controls feed clutch 2 drive timing
18. Feed switch 3 (FSW3) ................................. Controls feed clutch 3 drive timing
19. MP feed switch (MPFSW) ............................ Controls MP feed clutch drive timing
1
9
10
11
16
35
30
20
17
33
23
26
27
25
18
19
31
29
32
21
34
22
15
14
28
24
13
12
2
3
4
5
7
6
8
Machine front
Machine inside
Machine rear

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
