Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
1-6-17
1-6-6 Transfer section
(1) Detaching and refitting the transfer roller assembly
Follow the procedure below to replace the transfer roller assembly.
Procedure
1. Open the conveying cover.
2. While holding down the projection, slide the
transfer roller assembly toward the front to
remove it.
3. Replace the transfer roller assembly and refit
all the removed parts.

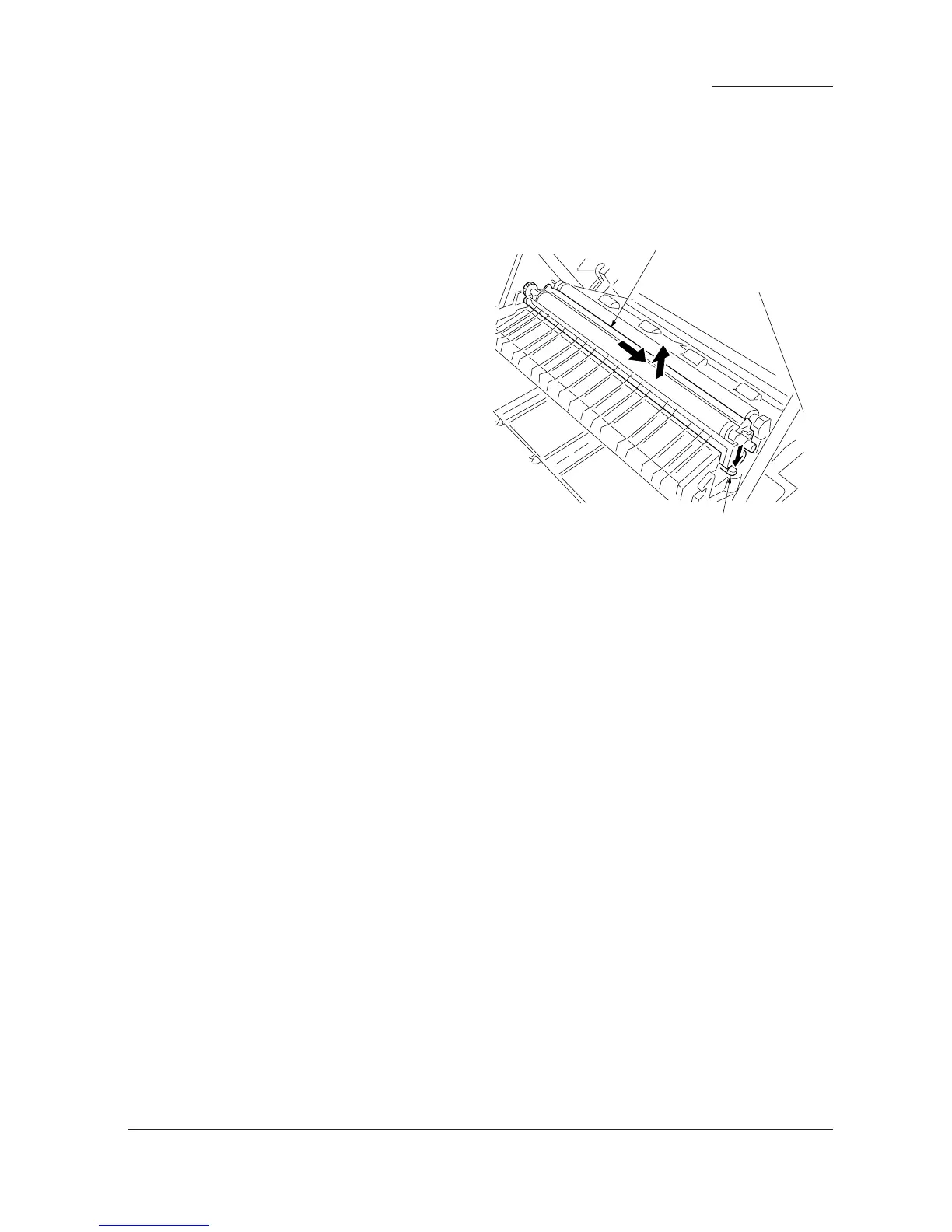

Figure 1-6-34
Transfer roller assembly
Projection

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
