Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
1-1-3

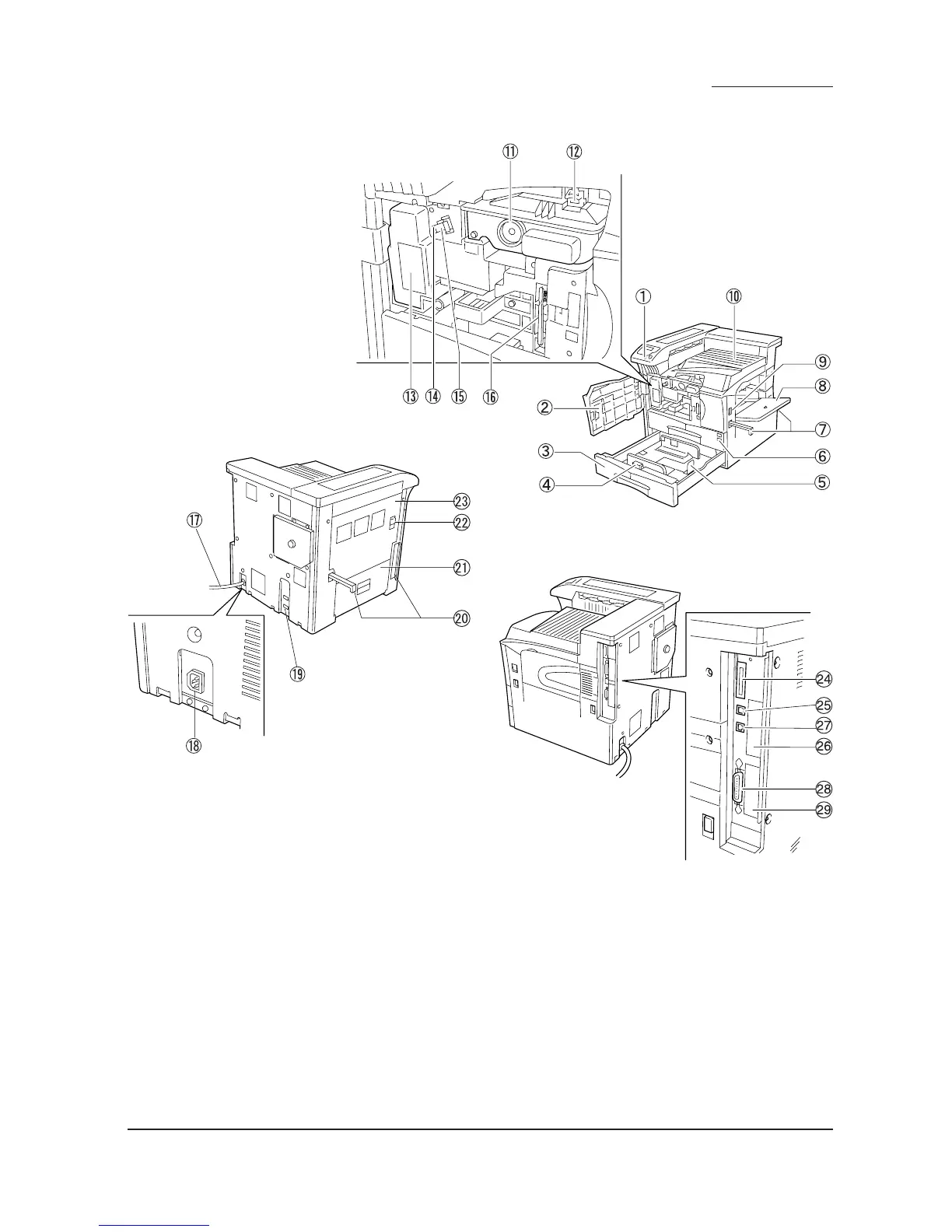

1-1-2 Parts names
(1) Printer
1 Operator panel
2 Front cover
3 Lower paper cassette
4 Paper guide
5 Paper stopper
6 Upper paper cassette
7 Handles for transport
8 MP (Multi-Purpose) tray
9 Power switch
0 Face-down tray
! Toner container
@ Toner container release lever
# Waste toner box
$ Cleaning knob
% Main charger unit
Figure 1-1-1
^ Cleaning brush
& Power cord
* Power cord connector
( Option unit connector
) Handles for transport
⁄ Side cover
¤ Conveying cover lock lever
‹ Conveying cover
› Memory card slot
fi USB cable connector
fl Optional network interface card slot (OPT)
‡ Network cable connector
— Parallel cable connector
· Optional hard disk unit slot (HDD)

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
