4-39
Using the Operation Panel
Activating the duplexer is done by selecting either short edge or long
edge binding mode.
IMPORTANT Duplex printing for coated paper (COATED) is possible
if the optional paper feeder PF-530 is installed.
Binding Modes
Binding refers to the manner in which printed pages of paper are joined
together (by gluing, stitching, etc.) in book form. The two possible types
of binding are: long-edge binding, in which pages are joined together
along their long edge; and short-edge binding, in which they are joined
together along their short edge. In selecting a binding type, you must also
consider the orientation of the printed page. You can use long-edge or
short-edge binding with either landscape or portrait printing.

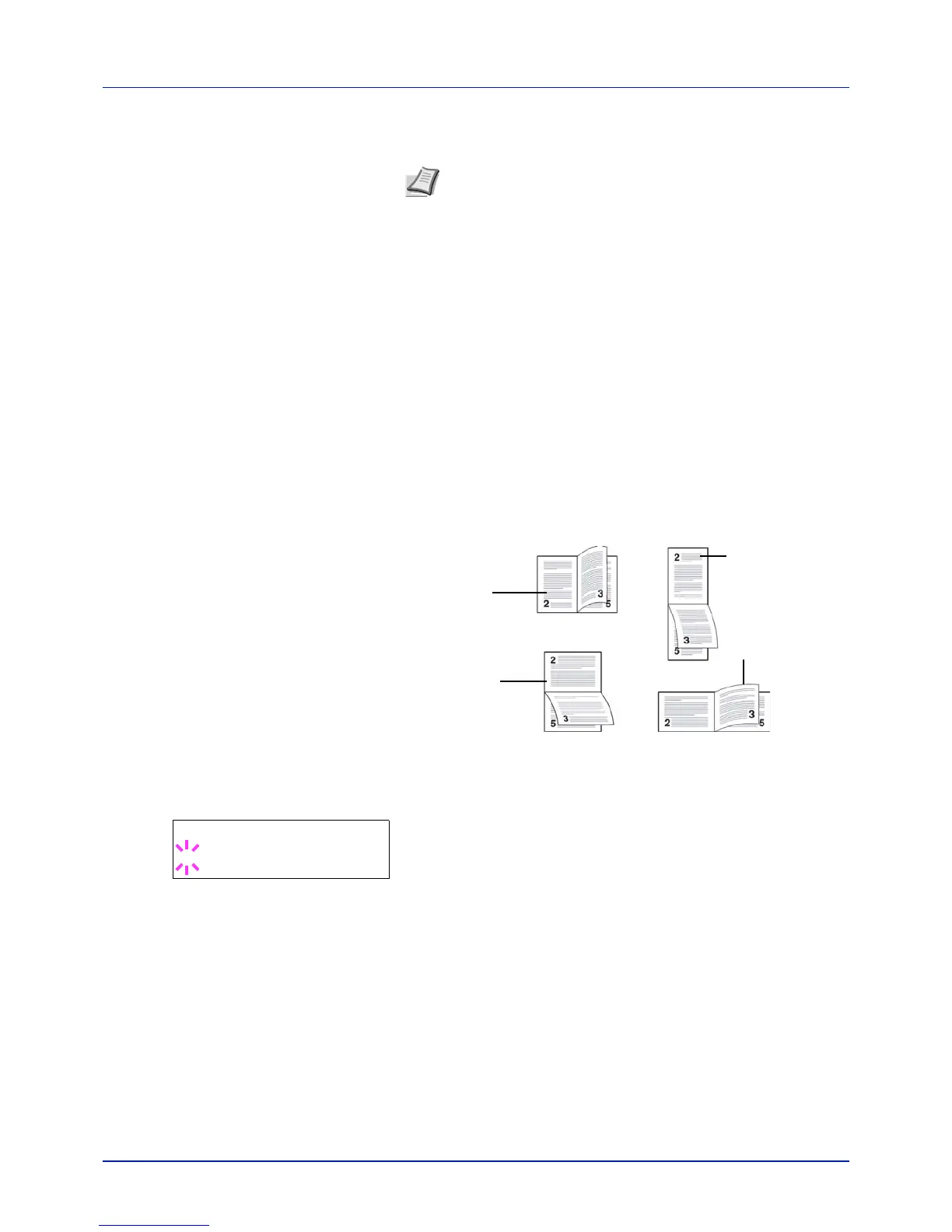

Depending on the binding type and print orientation, the duplexer
provides four types of binding. These are: (1) portrait, long-edge, (2)
portrait, short edge, (3) landscape, long-edge, and (4) landscape, short-
edge. The figure below shows these binding methods.
1 Press Z while Print Settings > is displayed.
2 Press U or V repeatedly until >Duplex appears.
3 Press [OK]. A blinking question mark (?) appears.
4 Press U or V to display the desired binding mode. The message
display toggles through the following:
Off (default)
Short edge bind
Long edge bind
5 Press [OK].
6 Press [MENU]. The display returns to Ready.
Note Duplex printing can be also performed from the MP tray. If
the paper to be fed from the MP tray does not match the paper
size and paper type of the current paper feed source cassette, a
paper jam may occur.
(1)
(3)
(2)
(4)
Portrait,
long-edge
Landscape,
long-edge
Portrait,
short-edge
Landscape,
short-edge
>Duplex
? Off
