7-1
Section 7 OPTIONAL EQUIPMENT
Document Processor
The Document Processor automatically feeds one-sided originals
one by one for scanning. If also reverses two-sided originals
automatically for duplex copying and page separation copying.
Originals that can be used with the Document
Processor
• Sheet originals only.
• Single-sided originals that have a paper weight within the range
of 45 g/m
2
to 160 g/m
2
.
Two-sided originals that have a paper weight within the range of
50 g/m
2
to 120 g/m
2
.
• Sizes: 11" × 17" to 5
1/2" × 8 1/2", Oficio II, A3 to A5R, Folio
• No. of Sheets that can be loaded:
50 sheets (50 - 80 g/m
2
)
(Note, however, that when in Mixed Size Mode, this number is
reduced to 30 sheets.)
Notes on acceptable documents
Be sure NOT to use the following as originals in the Document
Processor. In addition, originals with punched holes or perforations
should be set so that the edge of the paper with the holes or
perforations is facing away from the direction of insertion into the
Document Processor.
• OHP film or other transparencies.
• Soft originals such as carbon or vinyl paper, or other originals
that are curled, wrinkled or creased.
• Irregularly shaped originals, wet originals, or originals that have
adhesive tape or glue on them.
• Originals bound with clips or staples. (If you must use such
originals, be sure to remove the clips or staples, and straighten
any curls, wrinkles or creases, before setting them in the
Document Processor. Failure to do so may result in the originals
being misfed.)
• Originals with cut-out sections or that have a slippery surface on
either side.
• Originals on which any correction fluid is still wet.
• Originals with strong folds. (If you must use such originals, be
sure to smooth out the folds before setting them in the Document
Processor. Failure to do so may result in the originals being
misfed.)
• Originals with sharp curves (when use of a curved original is
unavoidable, straighten out the curves before setting it).
Section Names
(1) Original Table
Set the original here.
(2) Original Insert Guides
Adjust these to match the size of the original.
(3) Left Cover
Open this when the original is jammed.
(4) Original Eject Table
Originals that have been copied are stored here.
(5) Ejection Extension
Open this when A3 or B4 originals are to be copied.
(6) Document Processor Open/Close Handle
Grasp this handle to Open/Close the Document Processor.
(7) Ejection Tray
The original will be temporarily ejected when copies of both
sides are made.

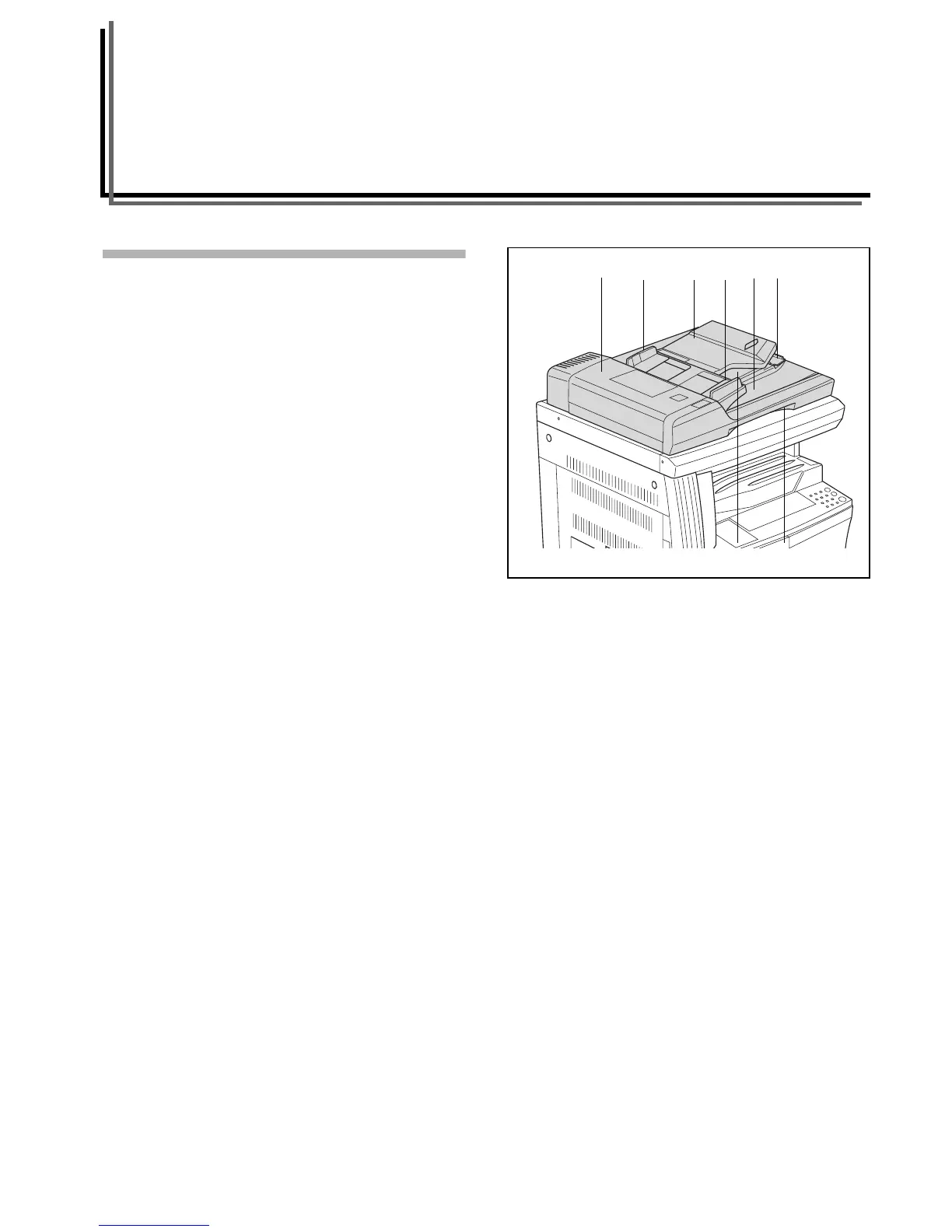

(2)(1)(2)(3)
(6)
(5)(4)
(7)
To Next Page
