Section 8 TROUBLESHOOTING
8-3

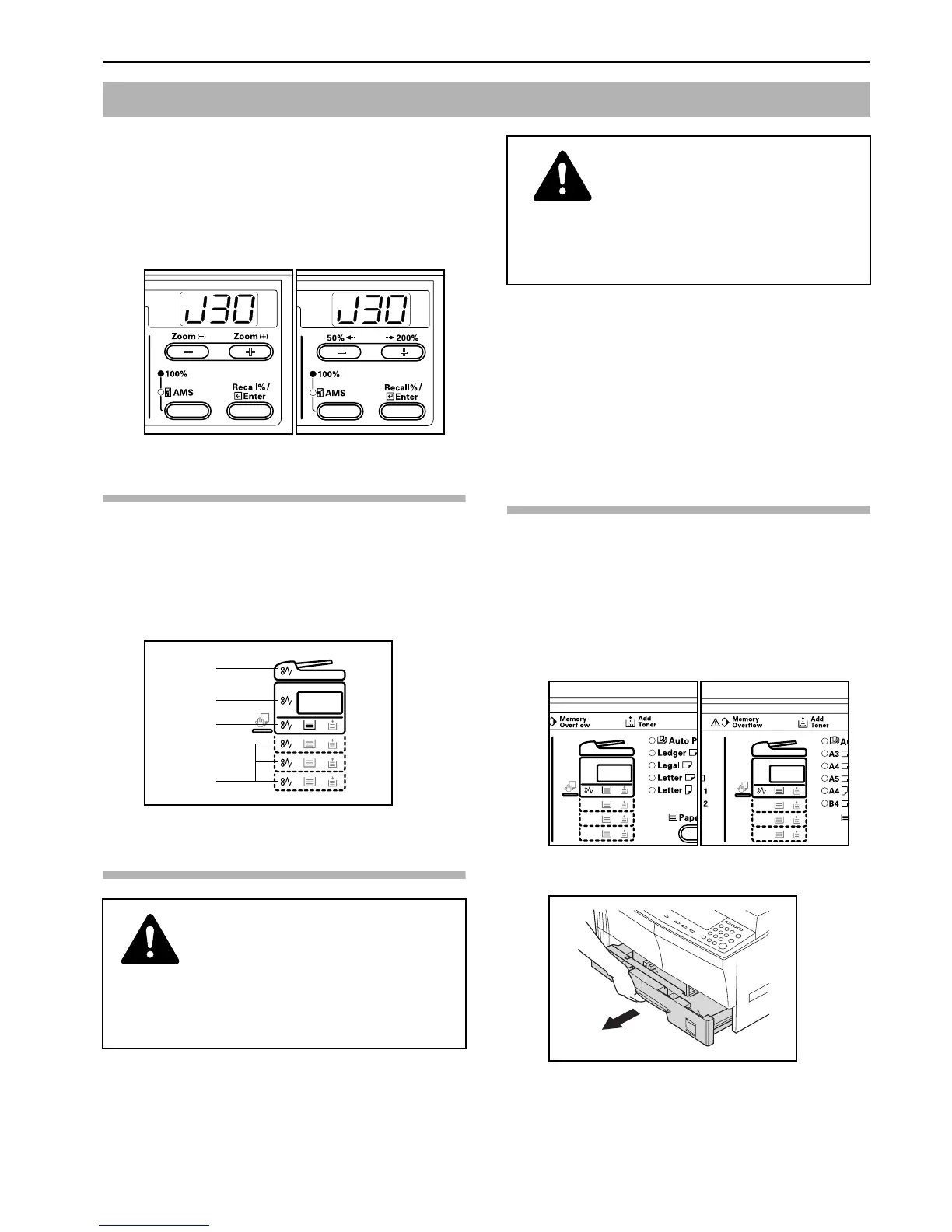

Stop copying operations when a paper misfeed occurs. When a
paper misfeed occurs, the indicator for the location of the paper
misfeed will light up on the Operation Panel and either “J” plus a
2-digit number or “PF” will be displayed as notification of the
location of the paper misfeed.
With the Power Switch in the ON (|) position, refer to P.8-3
"Removal Procedure" and clear the paper misfeed.
Inch specifications Metric specifications
Misfeed location indicators
(1) Paper misfeed in the paper supply section – Refer to
P.8-3.
(2) Paper misfeed in the left cover internal section – Refer
to P.8-4.
(3) Paper misfeed in the optional Document Processor –
Refer to P.8-5.
(4) Paper misfeed in the optional drawer – Refer to P.8-6.
Cautions
* Do not attempt to reuse paper that has jammed before.
* When a sheet gets torn during removal, make sure that the
remnants do not remain in the machine. Failure to completely
remove remnants of torn pages can lead to paper misfeeds.
* The copier will start warm up operations after the paper misfeed
processing has been completed. The paper misfeed indicator
lamp will go off and the copier will be restored to the state it was
in before the paper misfeed occurred.
Removal Procedure
Paper misfeed in the paper supply section
Paper misfeed in the drawer (J11, J21)
When the paper misfeed location is lit as shown in the illustration
below, the paper misfeed has occurred in the drawer. Use the
procedure below to clear it.
Inch specifications Metric specifications
1 Pull the drawer out.
If paper jams
WARNING
The electrically charged section inside the main
unit of the copier uses high voltage. Exercise
caution in handling it to prevent electric shock.
(3)
(2)
(1)
(4)
CAUTION
The fixation section inside the main unit of the
copier is extremely hot. Exercise caution in
handling it to prevent getting burned.
To Next Page
