12: Modbus

EDS1100/2100 Device Server User Guide 101

Modbus Statistics

This read-only web page displays the current connection status of the Modbus servers listening on

the TCP ports. When a connection is active, the remote client information is displayed as well as

the number of PDUs that have been sent and received. Additionally, a Kill link will be present

which can be used to kill the connection.

To view modbus statistics:

1. Click Modbus on the menu bar and click Statistics at the top of the page. The Modbus

Statistics page appears.

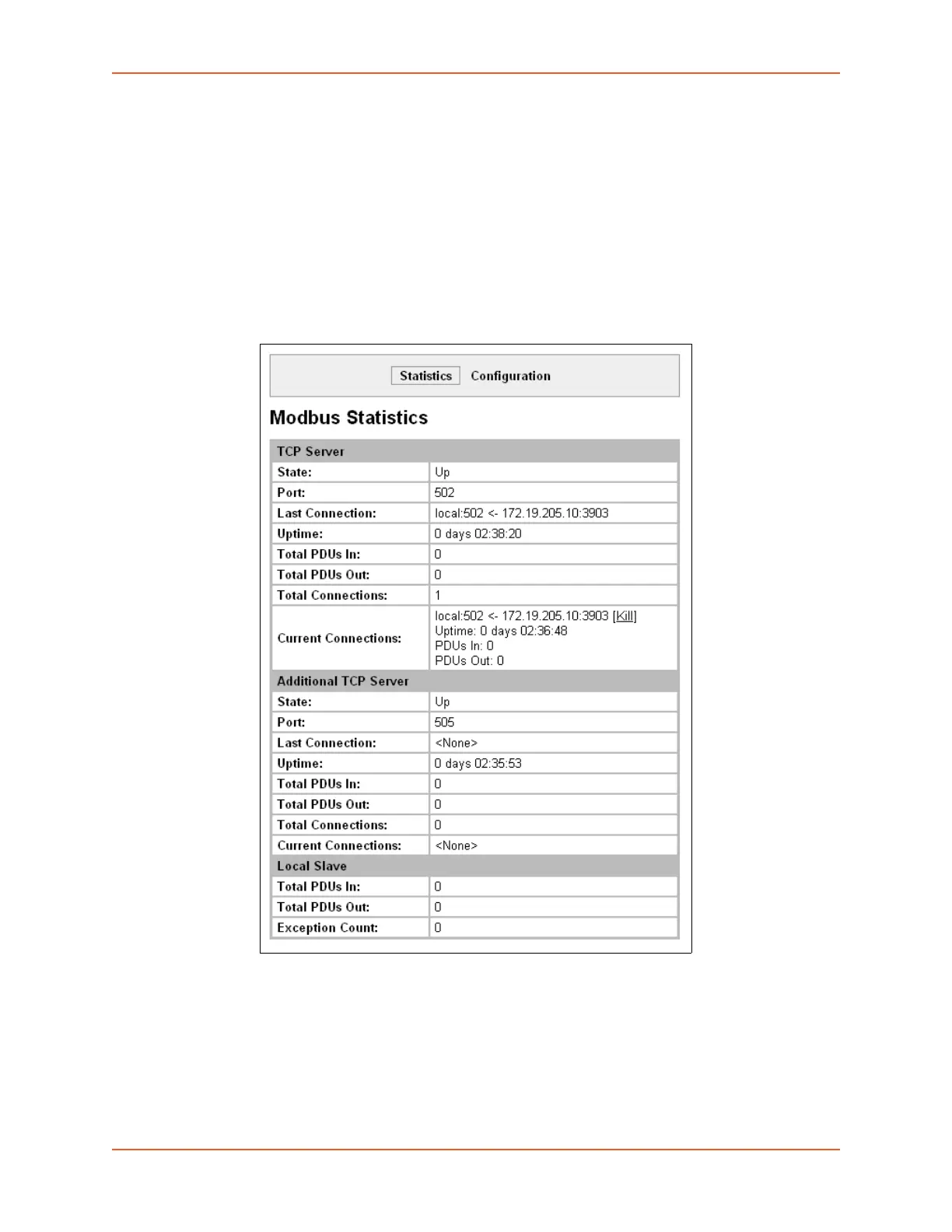

Figure 12-3 Modbus Statistics
