13: Maintenance and Diagnostics Settings

EDS1100/2100 Device Server User Guide 113

Diagnostics

The EDS1100/2100 device server has several tools to perform diagnostics and view device

statistics. These include information on:

 Hardware

 MIB-II Statistics

 IP Sockets

 Ping

 Traceroute

 Log

 Memory

 Buffer Pools

 Processes

Hardware

This read-only page shows the current device’s hardware configuration.

To display hardware diagnostics:

1. Select Diagnostics on the menu bar. The Diagnostics: Hardware page opens and shows the

current hardware configuration.

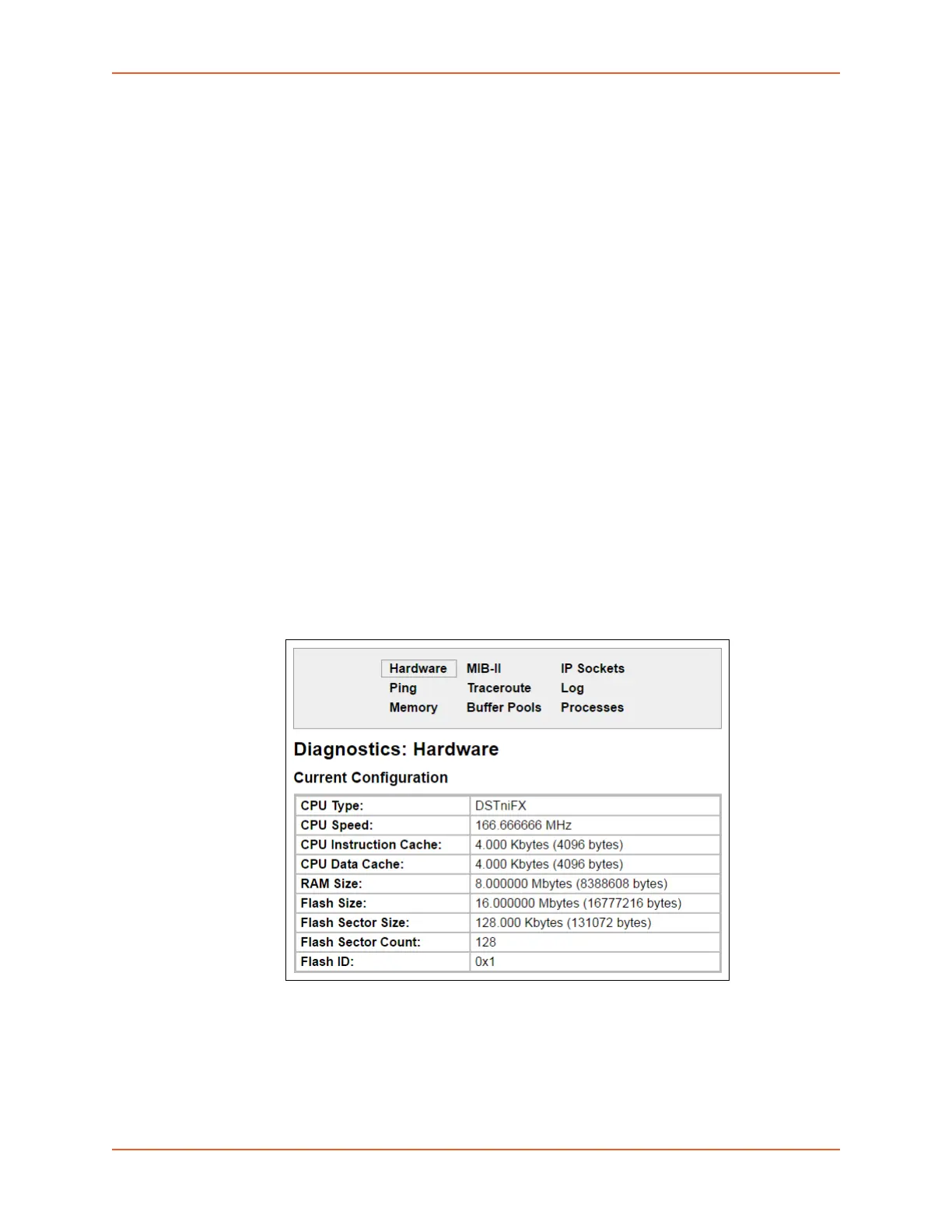

Figure 13-17 Diagnostics: Hardware
