4: Installation of EDS2100

EDS1100/2100 Device Server User Guide 30

Top LEDs

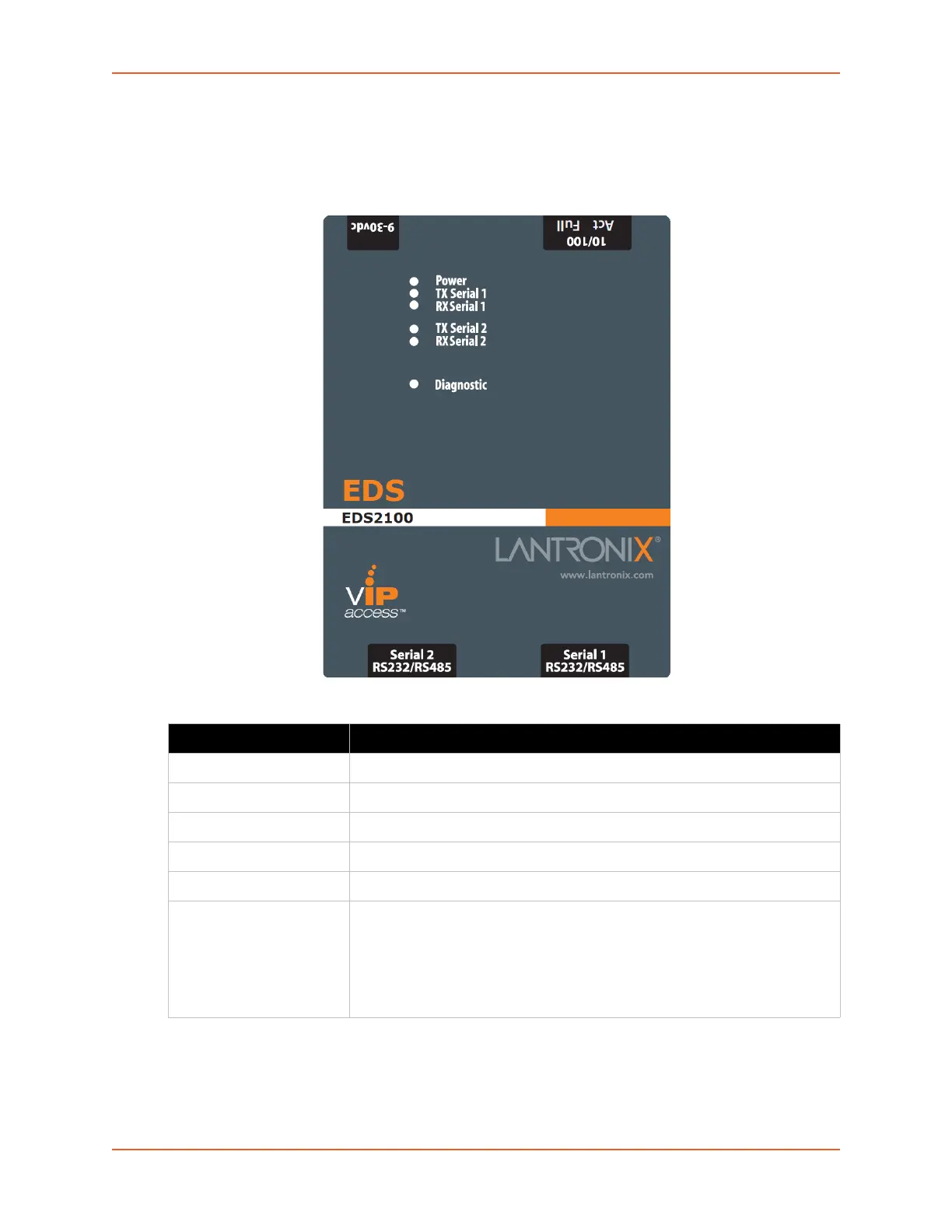

Figure 4-6 shows the top of the EDS2100. Table 4-7 lists and describes the LEDs.

Figure 4-6 EDS2100 Top LEDs

Table 4-7 EDS2100 LEDs and Descriptions

LED Description

Power (blue) ON—EDS is receiving power

TX Serial 1 (green) Blinking—EDS is transmitting data on serial port 1

RX Serial 1 (yellow) Blinking—EDS is receiving data on serial port 1

TX Serial 2 (green) Blinking—EDS is transmitting data on serial port 2

RX Serial 2 (yellow) Blinking—EDS is receiving data on serial port 2

Diagnostic ON—EDS firmware has completed booting

Blinking 1x/sec—EDS firmware is booting

Blinking 2x/sec—EDS is writing a file to flash

Blinking 4x/sec—EDS is compacting the file system

Blinking 5x/sec— EDS is restoring factory defaults
