6: Configuration Using Web Manager

EDS1100/2100 Device Server User Guide 36

Device Status Page

The Device Status page is the first page that appears after you log into Web Manager. It also

appears when you click Status in the menu bar (Figure 6-2).

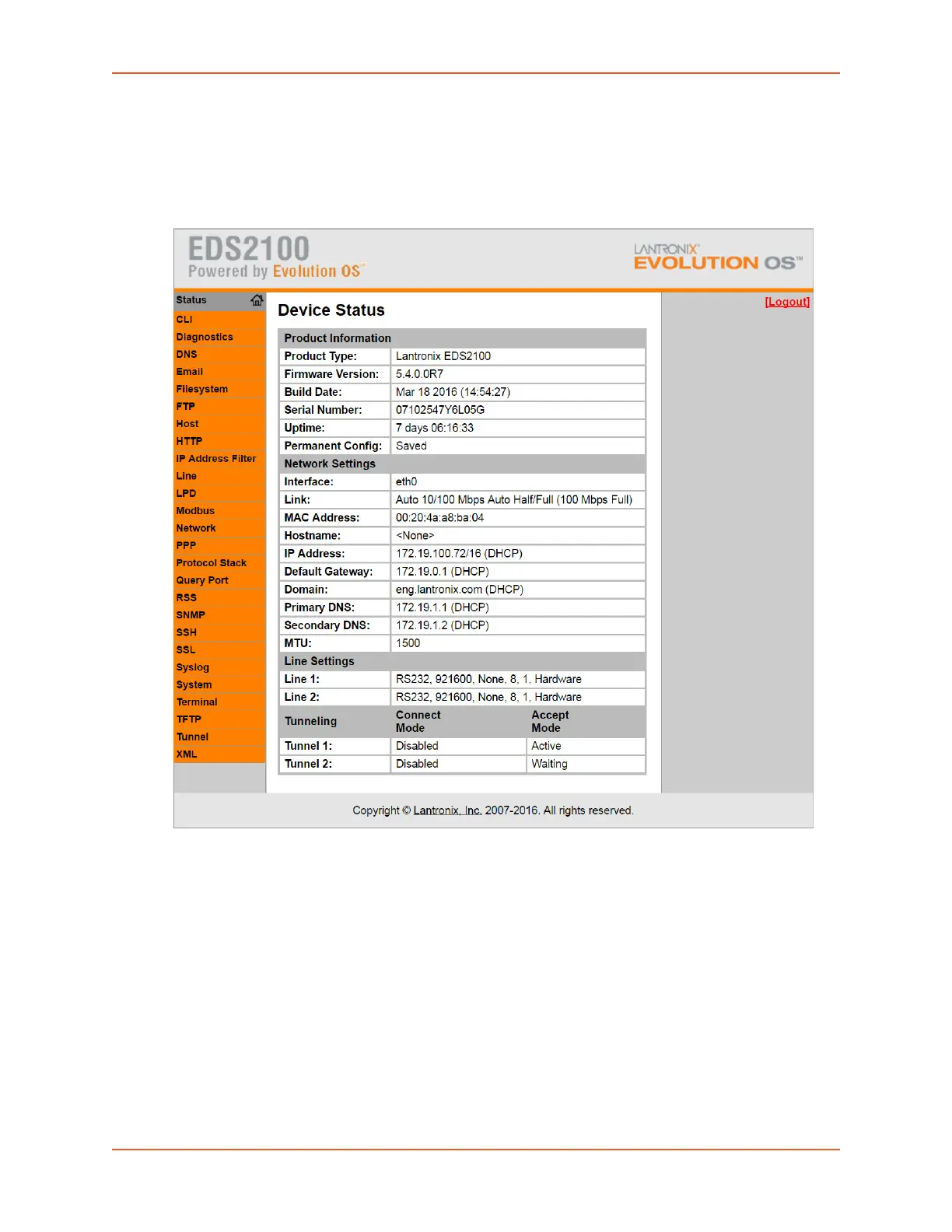

Figure 6-2 Web Manager Home Page
