3: Installation of EDS1100
EDS1100/2100 Device Server User Guide 25
Top LEDs
Figure 3-6 shows the top of the EDS1100 and Table 3-7 lists and describes the LEDs that are on
the top of the device.

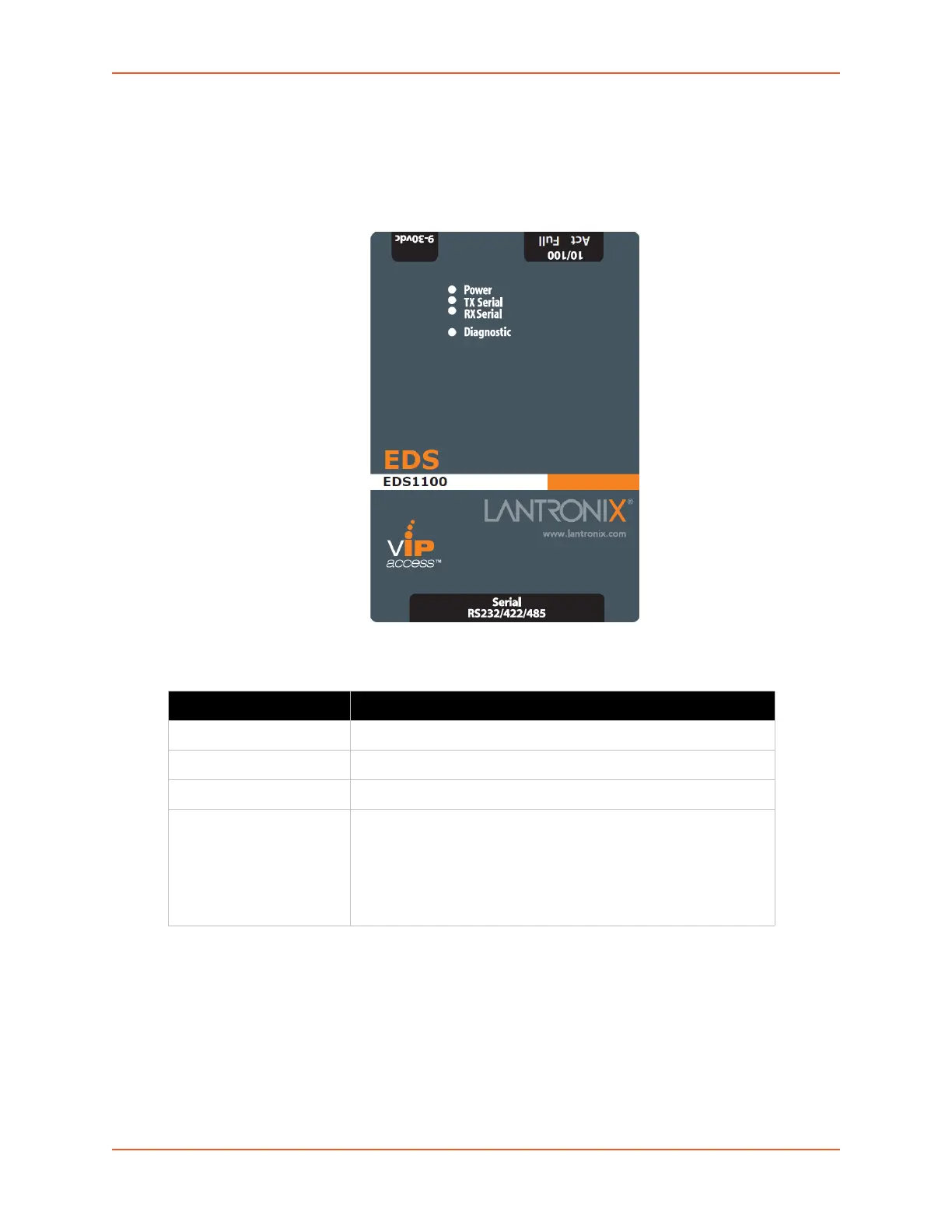

Figure 3-6 EDS1100 Top LEDs
Installing the EDS1100
Be sure to place the device on a flat horizontal or vertical surface. The device comes with
mounting brackets for mounting the device vertically, for example on a wall. If using AC power,
avoid outlets controlled by a wall switch.
Observe the following guidelines when connecting the serial devices:
Table 3-7 EDS1100 LEDs and Descriptions
LED Description
Power (blue) ON—EDS is receiving power
TX Serial (green) Blinking—EDS is transmitting data on the serial port
RX Serial (yellow) Blinking—EDS is receiving data on the serial port
Diagnostic ON—EDS firmware has completed booting
Blinking 1x/sec—EDS firmware is booting
Blinking 2x/sec—EDS is writing a file to flash
Blinking 4x/sec—EDS is compacting the file system
Blinking 5x/sec—EDS is restoring factory defaults
