6: Configuration Using Web Manager
EDS1100/2100 Device Server User Guide 37
Web Manager Page Components
The layout of a typical Web Manager page is below.

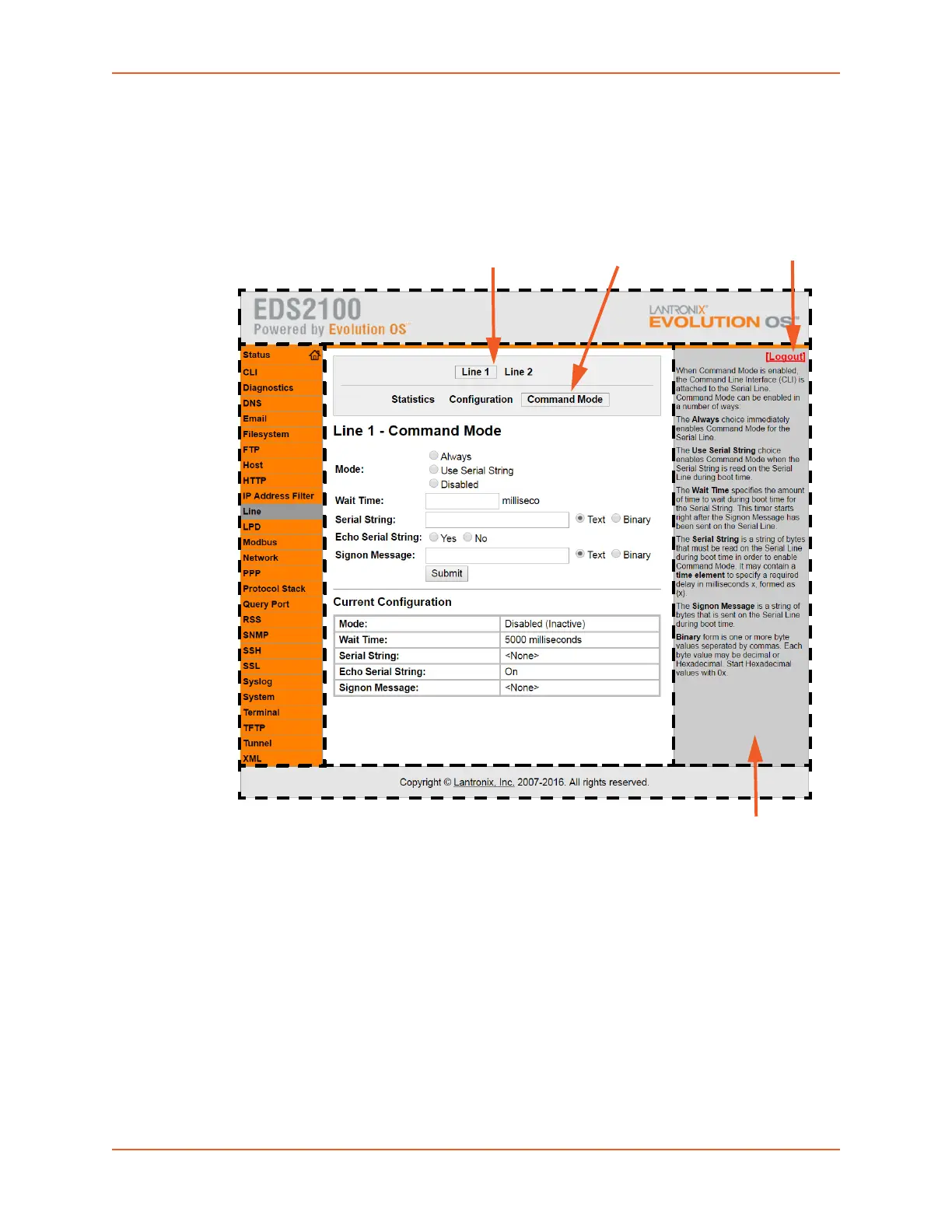

Figure 6-3 Components of the Web Manager Page
The menu bar always appears at the left side of the page, regardless of the page shown. The
menu bar lists the names of the pages available in the Web Manager. To bring up a page, click it in
the menu bar.
The main area of the page has these additional sections:
 At the very top, many pages, such as the one in the example above, enable you to link to sub
pages. On some pages, you must also select the item you are configuring, such as a line or a
tunnel.
Menu Bar
Links to
subpages
Items to
configure
Information
and Help Area
Header
Configuration
and/or
Status Area
Footer
Logout
button
