13: Maintenance and Diagnostics Settings

EDS1100/2100 Device Server User Guide 104

Filesystem Browser

To browse the filesystem:

1. Select Filesystem on the menu bar and then Browse at the top of the page. The Filesystem

Browser page opens.

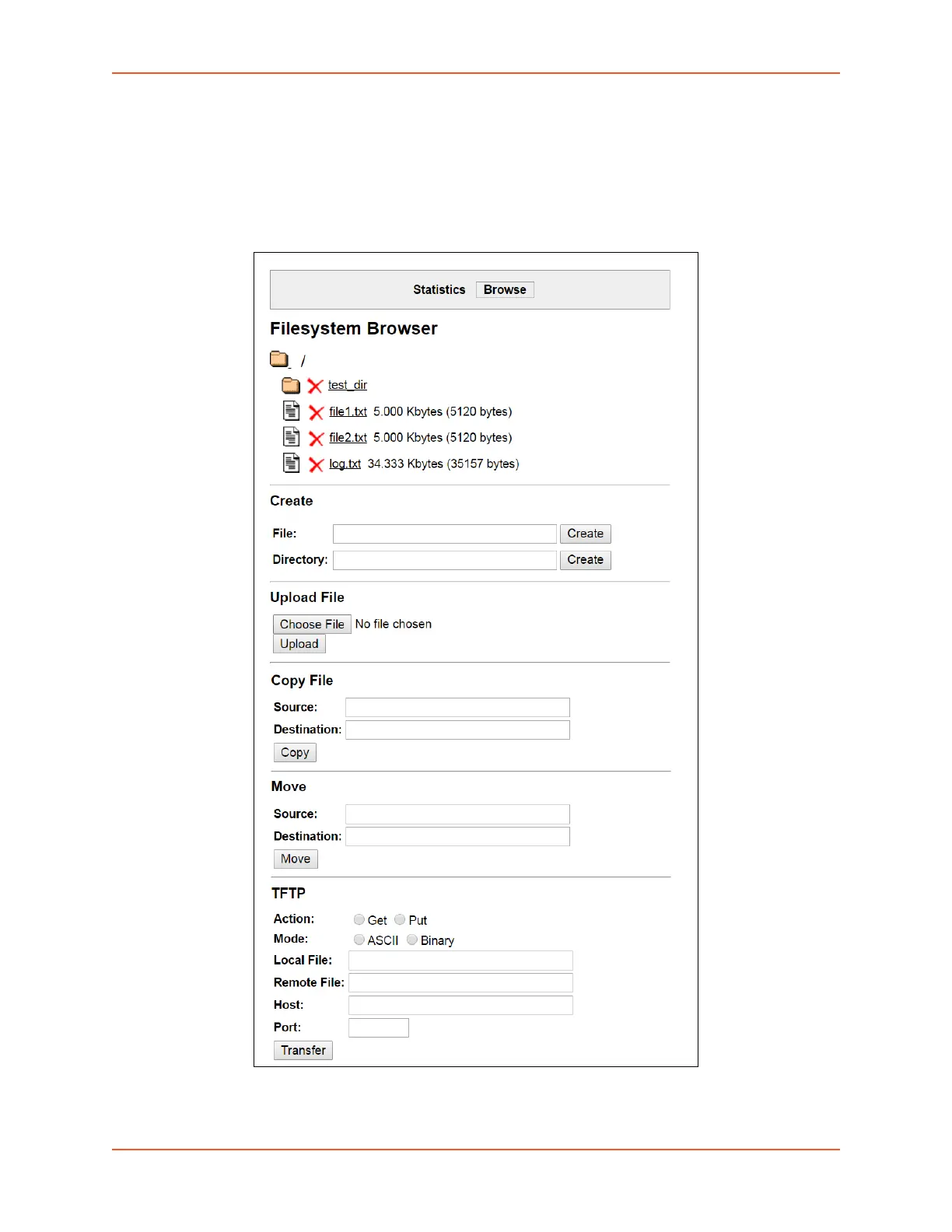

Figure 13-2 Filesystem Browser
