4: Configuration Using Web-Manager

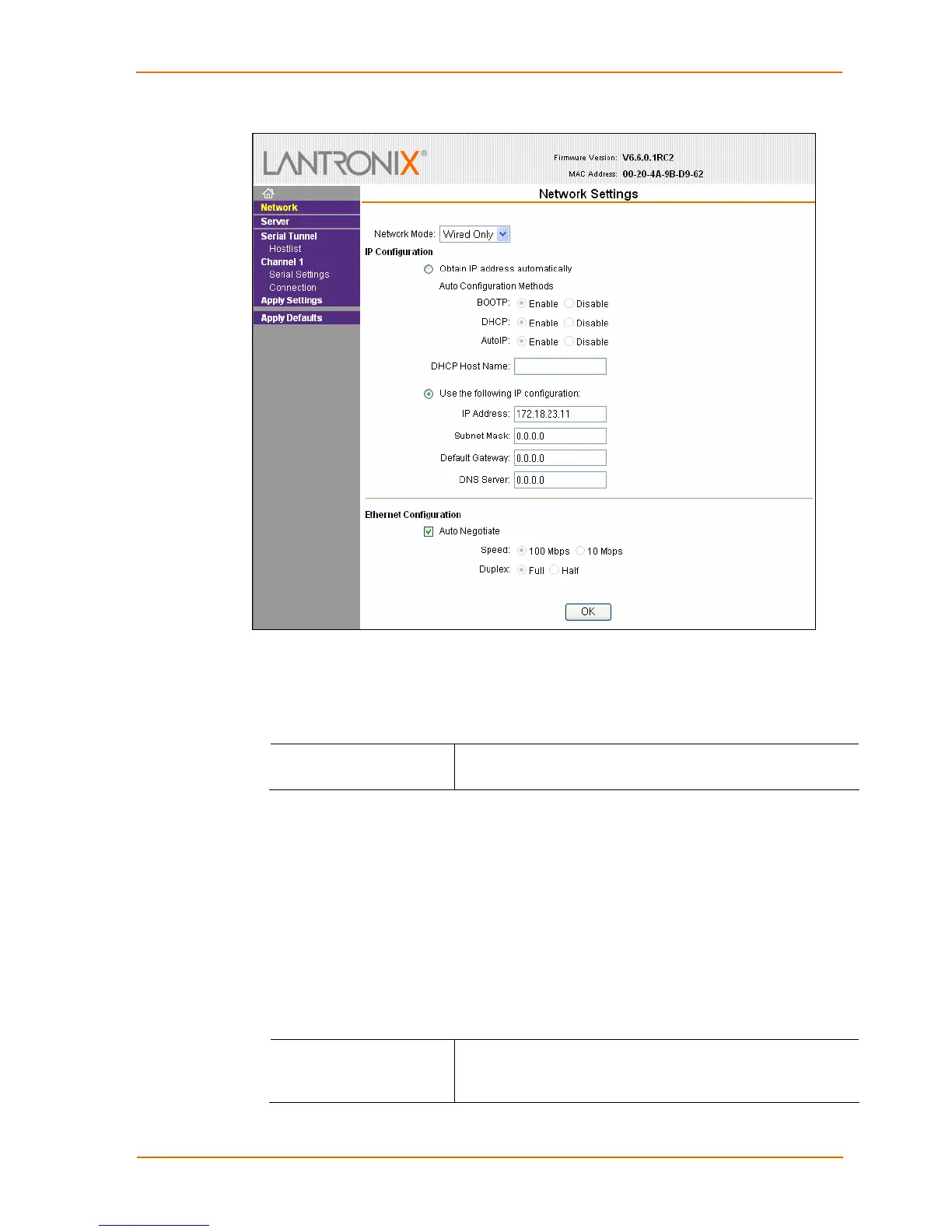

Figure 4-3. Network Settings
Network Mode
1. Click Network from the main menu.
2. Note the following:
Network Mode
For the UDS1100, Wired Only is the only choice. It enables
the Ethernet network connectivity.
Automatic IP Address Configuration
An IP address can be assigned automatically. You then enter related network
settings.
To assign an IP address automatically:
1. On the main menu, click Network.
2. Select Obtain IP address automatically.
3. Enter the following (as necessary):
BOOTP
Select Enable to permit the Bootstrap Protocol (BOOTP)
server to assign the IP address from a pool of addresses
automatically. Enable is the default.
UDS1100 User Guide 25
