4: Configuration Using Web-Manager
To specify how data will be transmitted:
1. On the main menu, click Network.
2. Enter the following (as necessary):
Auto Negotiate With this option, the Ethernet port auto-negotiates the speed
and duplex with the hardware endpoint to which it is
connected. This is the default.
If this option is not selected, complete the fields that become
available:
 Speed: The speed of data transmission. The default
setting is 100 Mbps.
 Duplex: The direction of data transmission. The
default setting is Full.
3. When you are finished, click the OK button.
4. On the main menu, click Apply Settings.
Server Configuration
The unit’s server values display when you select Server from the main menu. The
following sections describe the configurable parameters on the Server Settings page.

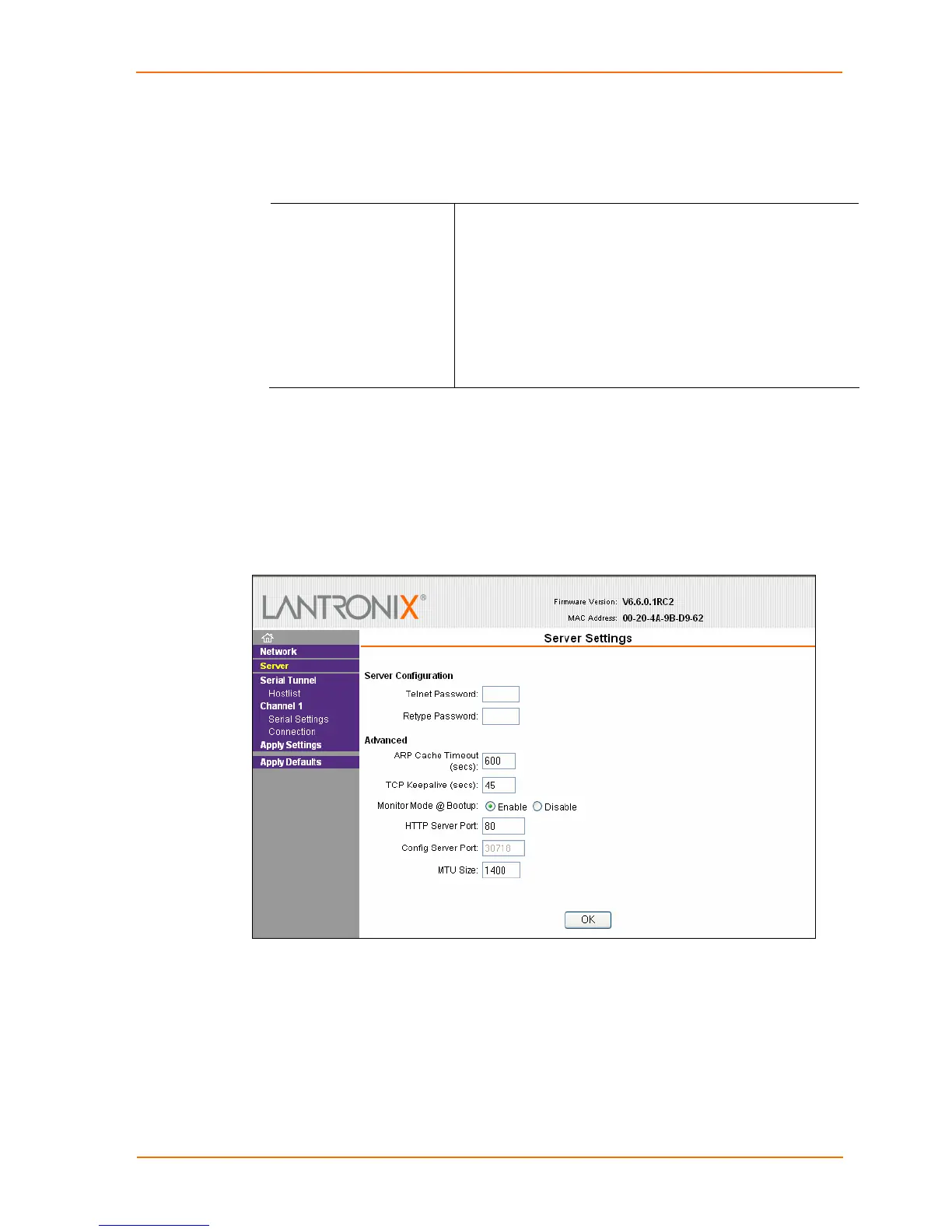

Figure 4-4. Server Settings
To configure the UDS1100’s device server settings:
1. On the main menu, click Server.
2. Configure or modify the following fields:
UDS1100 User Guide 27

Lantronix UDS1100 Specifications

General

Isolation	1.5 kV
Certification	UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864 RoHS
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	100 - 240 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
