Lantronix UDS1100 User Manual

12: Connections and Pinouts
Ethernet Connector Pinouts
The UDS1100 supports 10/100 Mbps half or full duplex Ethernet through an RJ45
connector.

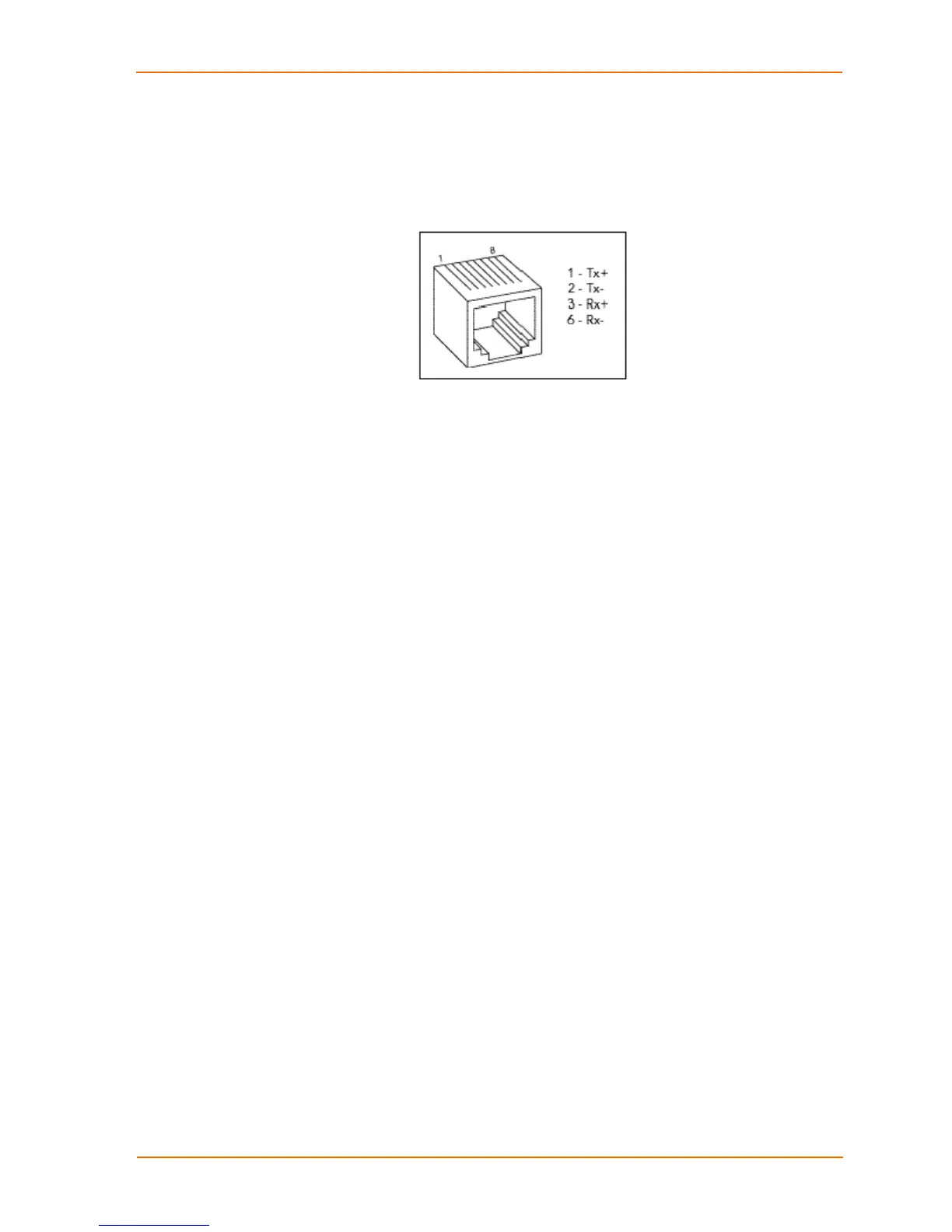

Figure 12-7. RJ45 Ethernet Connector
u
g
Power Plug
Power input on the power plug is 9 -30 VDC (center +) or 10-24 VAC
(1.5W maximum power required).
UDS1100 User Guide 74

Lantronix UDS1100 Specifications

General

Isolation	1.5 kV
Certification	UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864 RoHS
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	100 - 240 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
