This chapter explains how to configure the network settings.
Note: Current values display in parentheses.
Server Configuration (Option 0)
The unit’s basic network parameters display when you select Server configuration
(option 0). The IP Address, Set Gateway IP Address, and Netmask fields display
the current values.

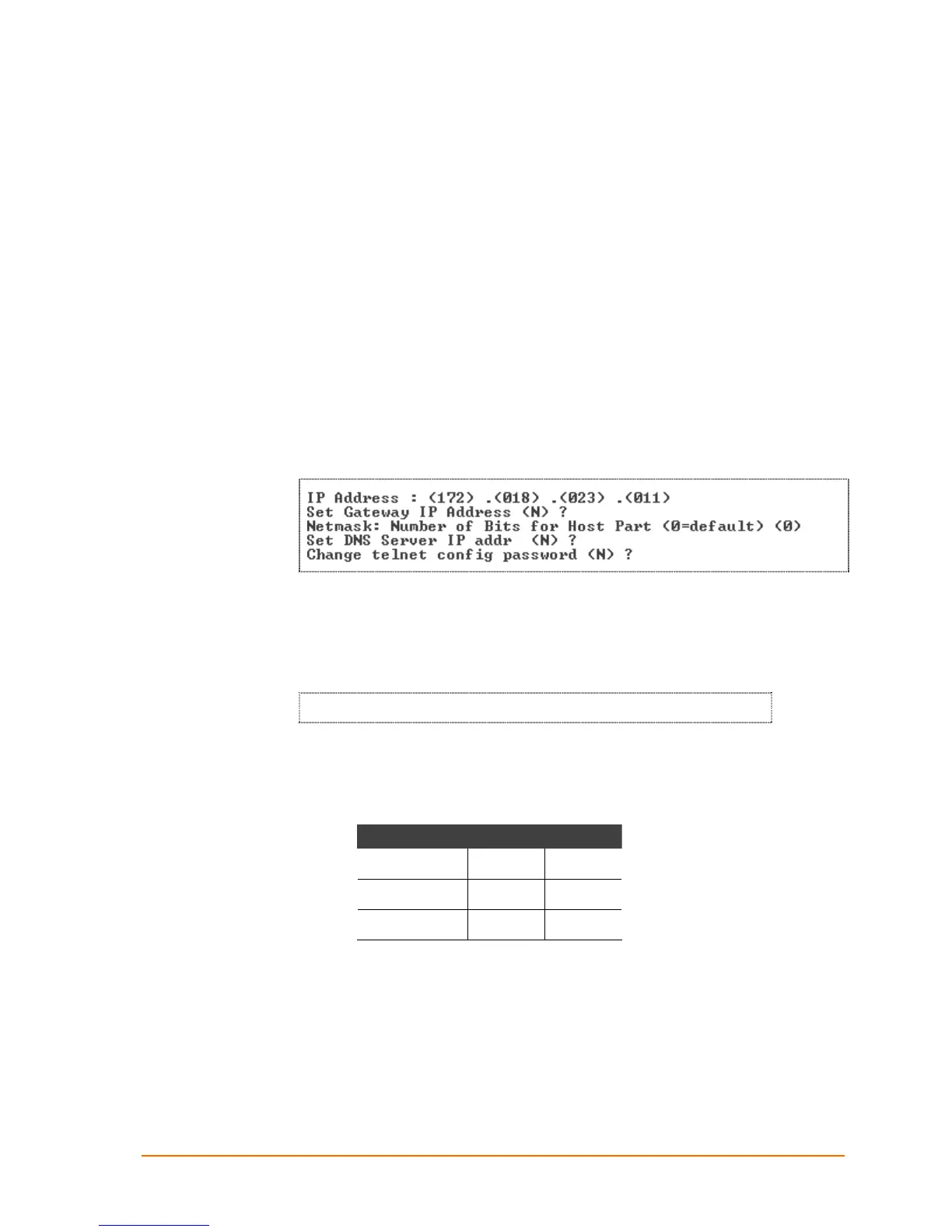

Figure 6-1. Network Settings
IP Address
If DHCP is not used to assign IP addresses, enter the IP address manually. The IP
address must be set to a unique value in the network. Enter each octet and press
Enter between each section. The current value displays in parentheses.
IP Address : (000) (000) (000) (000) _
If DHCP is used, the third octet of the IP address sets the BootP/DHCP/AutoIP
options. The following table shows the bits you can manually configure to force the
UDS1100 to disable AutoIP, DHCP, or BootP. To disable an option, set the
appropriate bit.
Table 6-1. BootP/DHCP/AutoIP options
Options Bit
Value
AutoIP 0 1
DHCP 1 2
BootP 2 4
For example, if the third octet is 0.0.5.0, the AutoIP and BootP options are
disabled; only DHCP is enabled. (The value 5 results from adding the binary
equivalents of 0 and 2.) This is the most common setting when using DHCP.
Set Gateway IP Address
The gateway address, or router, allows communication to other LAN segments. The
gateway address should be the IP address of the router connected to the same LAN
segment as the unit. The gateway address must be within the local network. The
UDS1100 User Guide 39
