Source Select which channel as trigger signal.
Condition To select pulse condition.
Pulse Width Set required pulse width.
High Freq
Rejection
Reject high frequency signals when selected.
12.4.2 Auto
The Scopebox has an Auto feature that sets up the Scopebox automatically to
display the input signal in a best fit.
Tap , the Scopebox may change the current settings to display the signal. It
automatically adjusts the vertical and horizontal scaling, as well as the trigger
coupling, position, slope, level and mode settings.
12.4.3 View Settings
<1> Calibration
This option adjusts the Scopebox’s internal circuitry to get the best accuracy.
Use this function to calibrate the Scopebox’s vertical and horizontal systems.

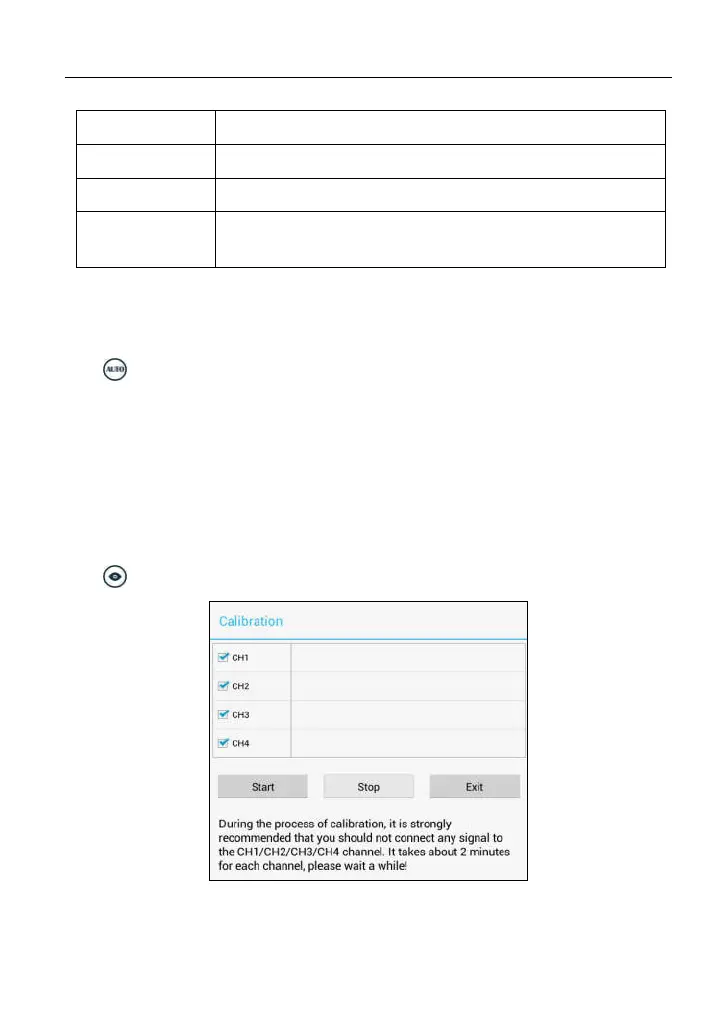

Tap and then tap [Calibration], a dialog box similar to Fig. 12-11 will appear.
Fig. 12-11
Check the box before the channel to select it. To deselect it, just uncheck it. After
choosing the desired channel(s), tap [Start] to start calibration and [Start] button
