3. Turn the Time/Div front panel knob to adjust the window size.
Note: Select among the Horizontal menu options (Main, WinZone,
and Window) by pressing the Horizontal Time/Div front panel
knob (Push-Zoom). Once your selection is made, turning the knob
adjust the selected Zoom function.
4. Turn the Horizontal Position front panel knob to adjust the
window's position.
5. Press the Window option button. The waveform is expanded.
Triggering
Trigger Types

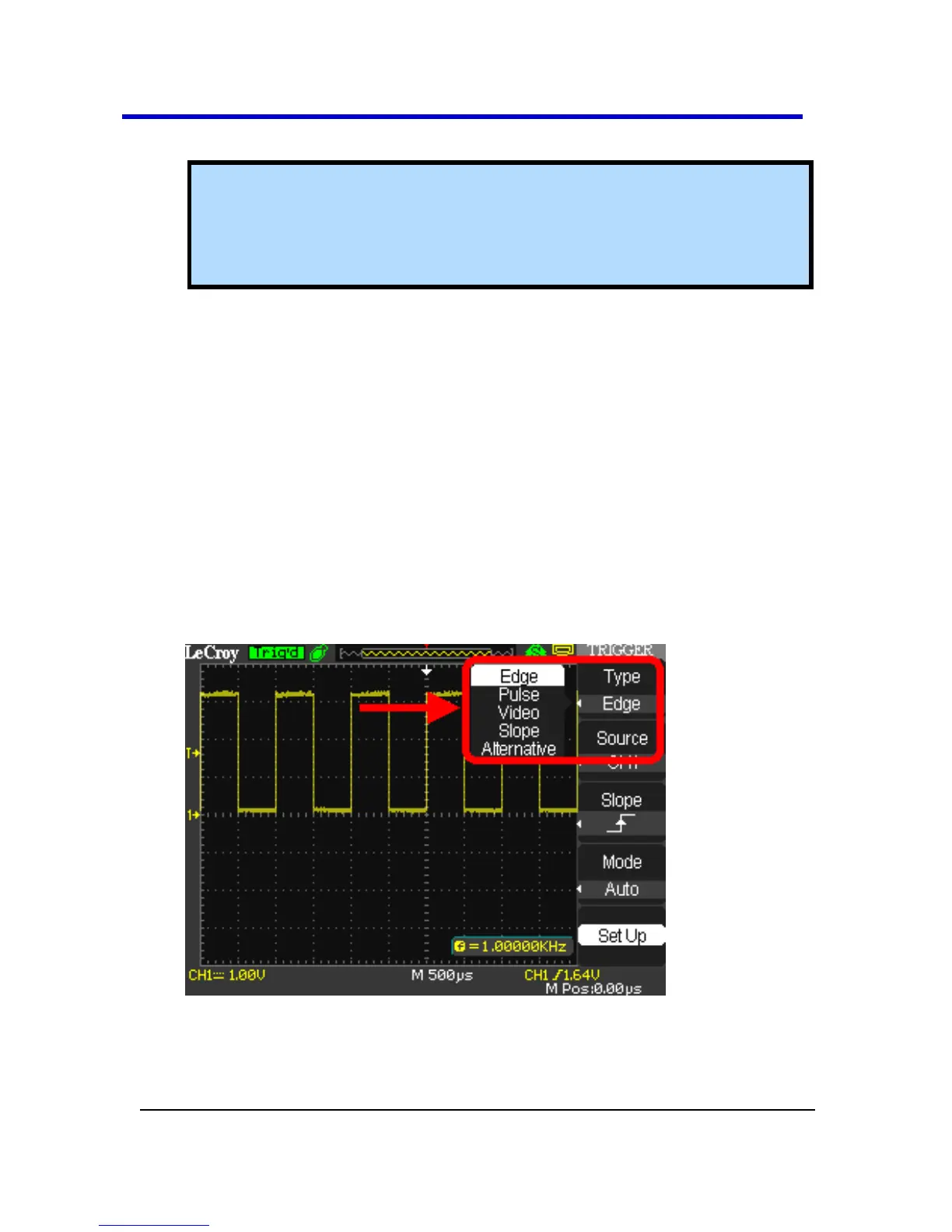

There are five trigger types: Edge, Video, Pulse, Slope, and Alternative.
Access the trigger modes by pressing the TRIG MENU front panel button
(in the Trigger control group) and selecting Type from the Trigger menu.
Edge Triggering
1. Press the Type menu option button and select Edge.
2. Press the Source option button to choose a channel input (CHS 1 - 2;
or CHS 1 - 4 on 4 channel models) or external input.
