2-13GPS1200
User Interface
2.4 Icons
Description The icons provide information related to basic receiver functions. The icons that
appear depend upon which GPS1200 receiver is used and the current receiver
configuration.

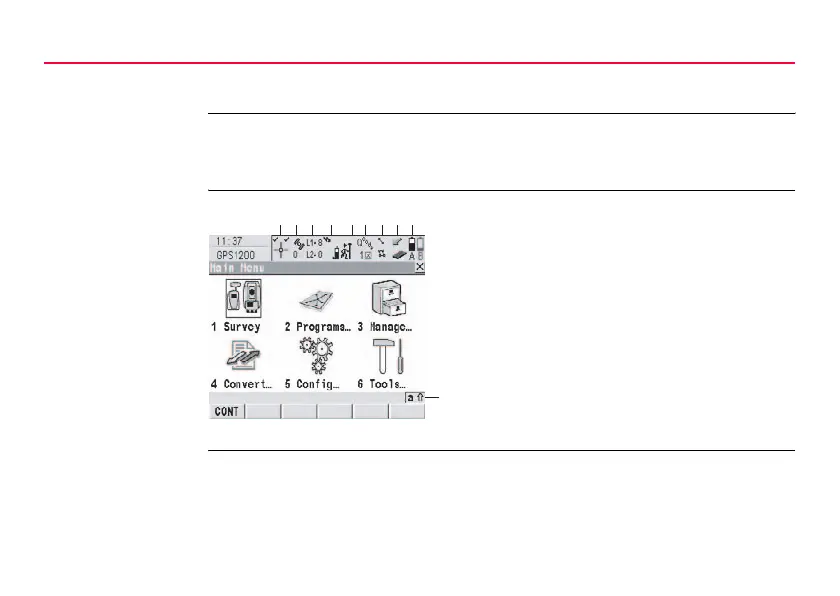

Allocation of icons
Position status Displays the status of the current position.
Touch screen: Tapping the icon leads to STATUS Position.
a) Position status
b) Number of visible satellites
c) Contributing satellites
d) Real-time device and real-time status
e) Position mode
f) Quick coding
g) Line/area
h) CompactFlash card/internal memory
i) Battery
j) SHIFT
j
a
b c d e f g h i
