Page 14

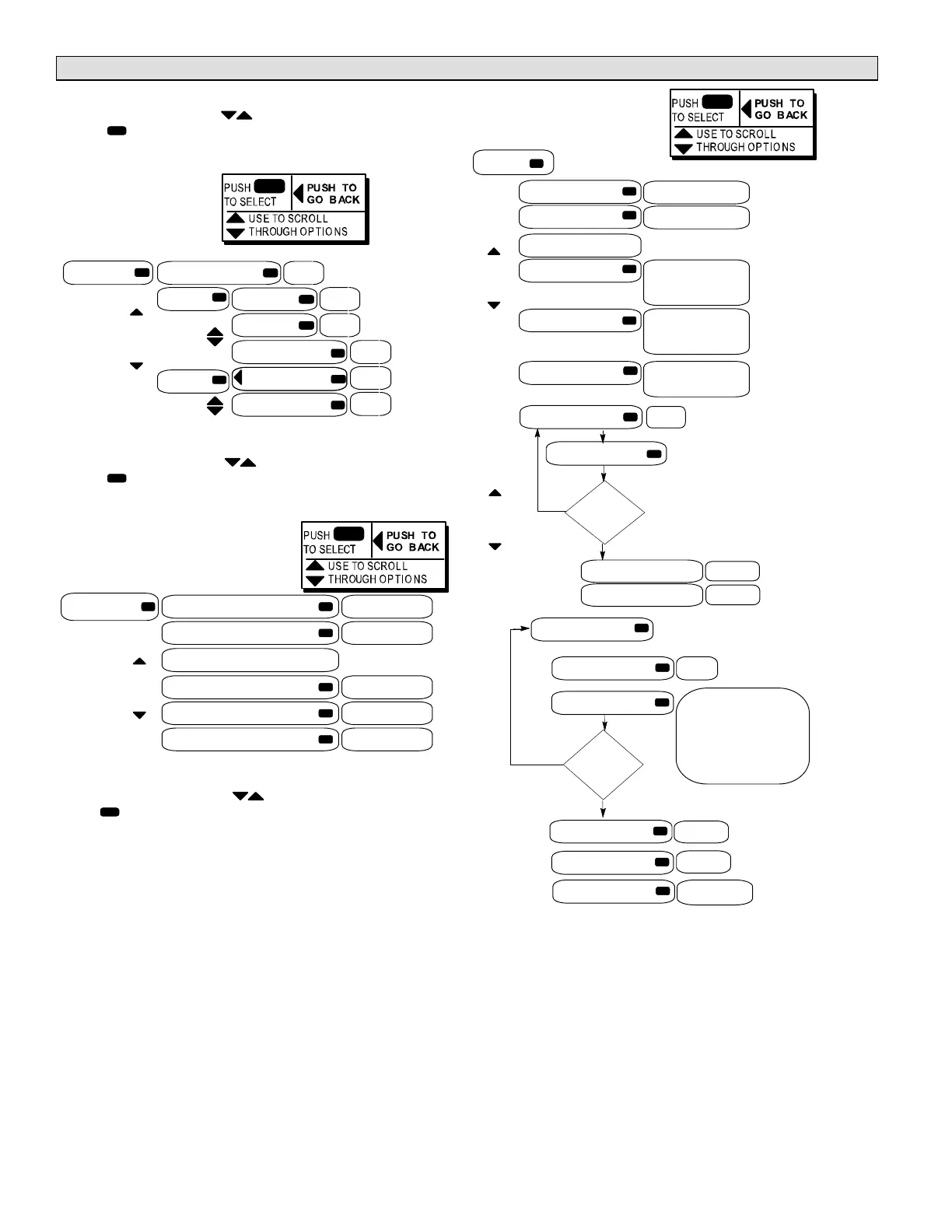

DATA Menu Interface DATA (Continued)
DATA > NETWORK
In the DATA menu, use
until NETWORK is displayed.
Press to enter the NETWORK menu. Read the
NETWORK addresses stored in the M2 unit controller.
NETWORK
LCONN ADDRESS XX
BACNET MAC ADDR XX
BAUD RATE XX.XK
DEVICE INSTANCE XX
LONTALK PROGRAM ID XX
NEURON ID XX
Use
arrows
to
move
DATA > FACTORY
In the DATA menu, use until FACTORY is displayed.
Press to enter the NETWORK menu. Read the
FACTORY information stored in the M2 unit controller.
FACTORY
Use the up/down arrows
to scroll through the read
able entries. Use the se
lect button to view soft
ware versions.
READ M2 SOFTWARE VERSION M2 VX.XX.XX
READ DB SOFTWARE VERSION DB1 VX.XX.XX
READ FACTORY REPORT
CATALOG NO. (catalog number)
MODEL NO. (model number)
SERIAL NO. (serial number)
Use
arrows
to
move
DATA > STATUS
In the DATA menu, use until STATUS is displayed.
Press to enter the STATUS menu.
Read the STATUS information stored in the M2 unit
controller.
STATUS
Use the up/down arrows
to scroll through the read
able entries. Use the se
lect button to view data.
OCC/UNOCC [OCC/UNOCC]
STPTS HH CC F HH:XX CC:XX
APP MODE 255 255
COMM TYPE LCONN, BACNET,
LonTalk LEGACY,
LonTalk, NONE
COMM TIMER NO TRAFFIC,
<1. <2, <3,<4, <5,
5+ MIN
#CURRENT ALRMS: # CURR ALRMS: N:
A1, A2, ...AN A1, A2, .. A7
WHERE N = 0 - 7, 7+
Use
arrows
to
move
SMOKE: XX %
XX%
ACTUAL SUPPLY CFM
TARGET SUPPLY CFM
BLOWER
Use
arrows
to
move
YES
NO
DAMPER TARGET
DAMPER
XX%
DAMPER ACTUAL
NOT INSTALLED,
CLOSED
CLOSED OAS
DVC XX
FEEE COOL XX
MIN POS OAS XX
MINPOS XX
SmartAirflow™
INSTALLED?
YES
NO
ACTUAL OA CFM
XXX cfm
TARGET OA CFM
ECON DIFF
PRESSURE
IN. H20 (0-2)
XXX cfm
XXX cfm
XXX cfm
SEE
NOTE
BELOW
NOTE: Display will indicate OAS when outdoor air could be used
for free cooling. For older hardware OAS LED will be an additional
indication. No OAS indication (display or LED) is available during
demand control ventilation (DVC) operation, although free cool
ing can still occur. xx is the damper position percent open feed
back signal.
SmartAirflow™
INSTALLED?
To Next Page
