SETTINGS Menu Interface SETTINGS (Continued)
SETTINGS > CONTROL > ECTO
When you select ECTO, default settings will be in place. You
may adjust those settings to suit the building's requirements.

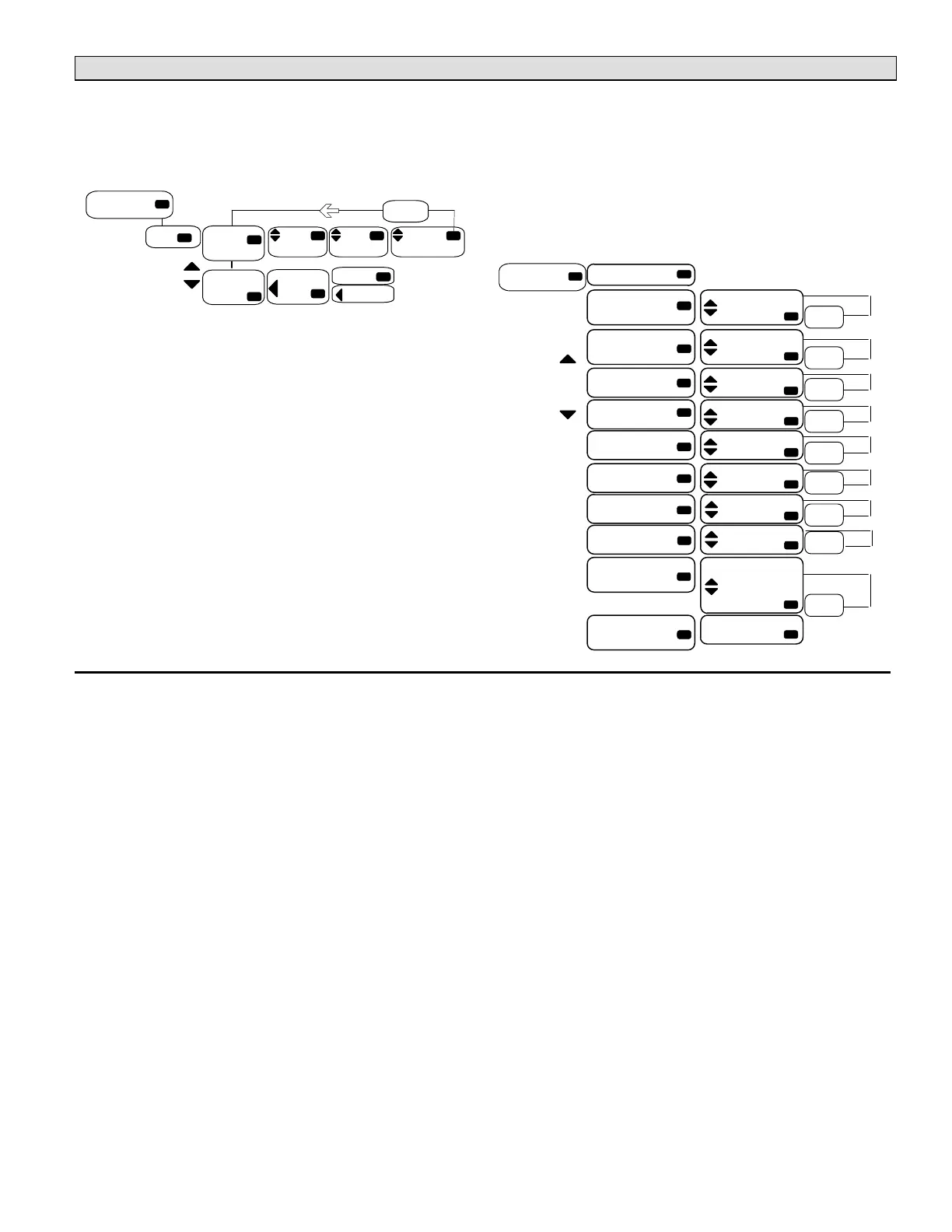

The following diagram shows the ECTO menu's structure
and illustrates how to use the controls to make changes.
BLOCK/
PARAM/
COUNT
RESET TO
FACTORY
ECTO
ECTO
B#: X
[0, 2 TO10]
ARE YOU
SURE?
YES
NO
M2 RESET
P#:XX
[1 TO 27]
CNT:XXX
[0 TO 255]
! SET !
CONTROL
THE BLOCK, PARAMETER, AND COUNT RANGES SHOWN HERE
ARE LIMITS AND WILL BE RESTRICTED IN SOME CASES.
EXAMPLE: When told to set ECTO 6.27=1 navigate to
SETTINGS > CONTROL > ECTO >
BLOCK/PARAM/COUNT>B# and enter 6. At P# enter 27. At
CNT: enter 1. Display shows flashing "!SET!", and returns to
BLOCK/PARAM/COUNT for another change. When changes
are done, use the left arrow to back out of the CONTROL
menu, and UPDATING SETTINGS is shown while changes are
made, and then M2 resets to use the new values.
SETTINGS > INSTALL > (all except NEW M2)
Use SETTINGS > INSTALL as shown in the following
diagram; default settings will be used. Use menu to change
language used, and ancillary components installed. An
expert manual and service software are available for more
complex installations (see Table 7, Page 26). If any alarms
are present, take corrective action prior to installation.
UPDATE DISPLAY SOFTWARE menu only appears in DB1
versions that do not end in "H". If the display does not have a
HOST boot-loader (indicated by the H), then a Windows PC
and USB cable (AtoA, or with BtoA adapter) are needed to
perform firmware upgrade on DB1.
NOTE - The M2 should be reset in order for changes to be
updated within the controller.
Use INSTALL > FLOAT SWITCH to set up a condensate pan
overflow switch. Use INSTALL > UPDATE DISPLAY
SOFTWARE to install new display software.
EXIT
BOOTLOADER
BY HOLDING
BACK ARROW
FOR ~ 3
SECONDS
INSTALL
NEW M2 (SEE PREVIOUS DIAGRAM)
NOT INSTALLED
DAMPER ECON
MOAD ! SET !
ENGLISH
LANGUAGE FRENCH
SPANISH ! SET !
FLOAT NOT INSTALLED
SWITCH INSTALLED ! SET !
BLOWER NOT INSTALLED
PROVING SW INSTALLED ! SET !
DIRTY NOT INSTALLED
FILTER SW INSTALLED ! SET !
BLOWER NOT INSTALLED
OVERLOAD S135 INSTALLED ! SET !
PHASE NOT INSTALLED
MONITOR INSTALLED ! SET !
UV LAMP NOT INSTALLED
INSTALLED ! SET !
ELECTRIC NOT INSTALLED
HEAT 1 STAGE
STAGES 2 STAGES
3 STAGES
4 STAGES ! SET !
UPDATE DISPLAY
DISPLAY WILL RESET ! RESET !
SOFTWARE
