Lenovo 16ACH6H User Manual

Step 3. Pry up the latches and then remove the lower case.

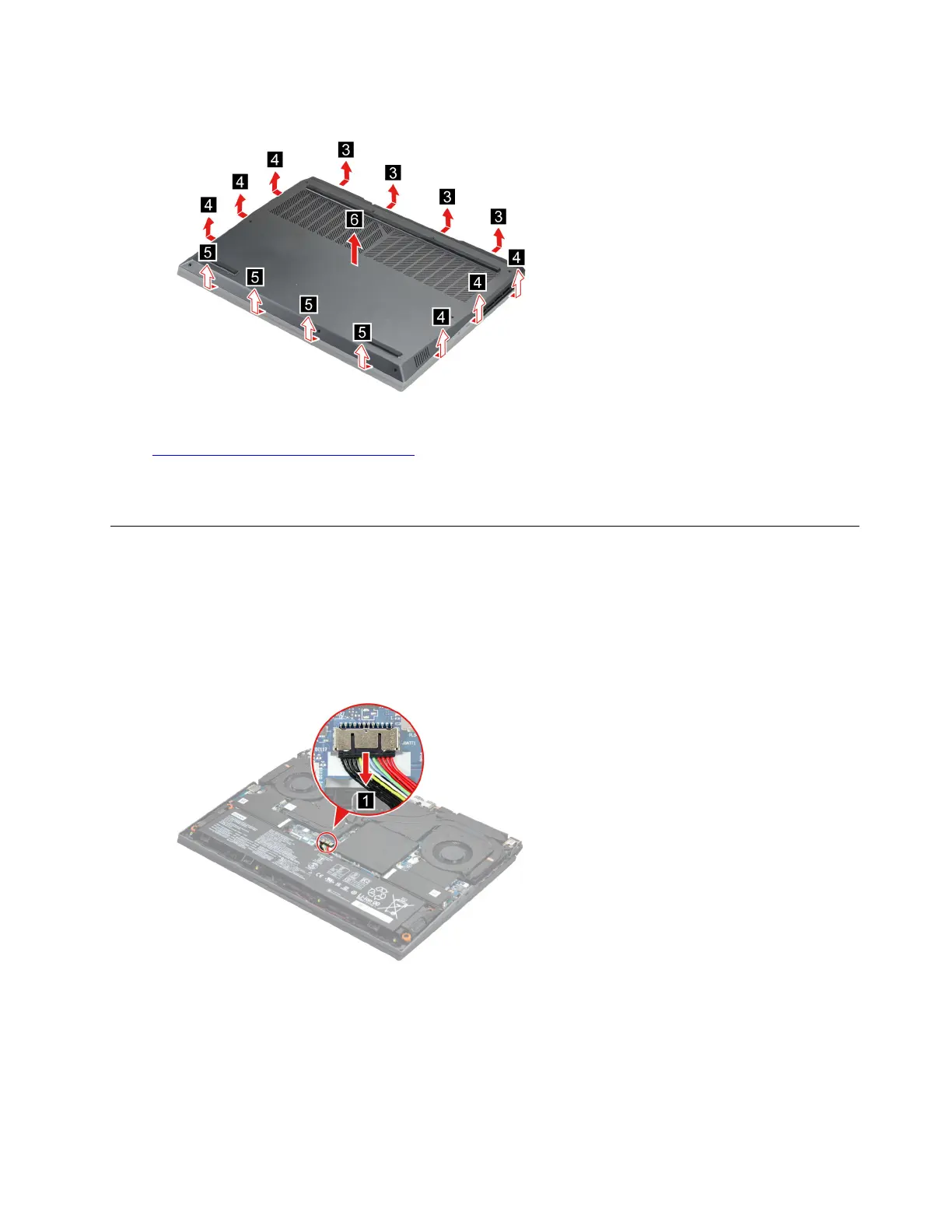

Figure 4. Pry up the latches and remove the lower case
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Lower case
Remove the battery pack
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 30
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Figure 5. Disconnect the battery pack cable from the system board
Step 2. Remove three screws then remove the right SSD plate.
Chapter 4. Removing a FRU or CRU 31

Lenovo 16ACH6H Specifications

General

Series	Legion 5
Processor	AMD Ryzen 7 5800H
Graphics	NVIDIA GeForce RTX 3060
RAM	16GB DDR4
Storage	512GB SSD
Operating System	Windows 10 Home
Battery	80Wh
Weight	2.4 kg
Model	Lenovo 16ACH6H
Display	16-inch, 2560x1600
