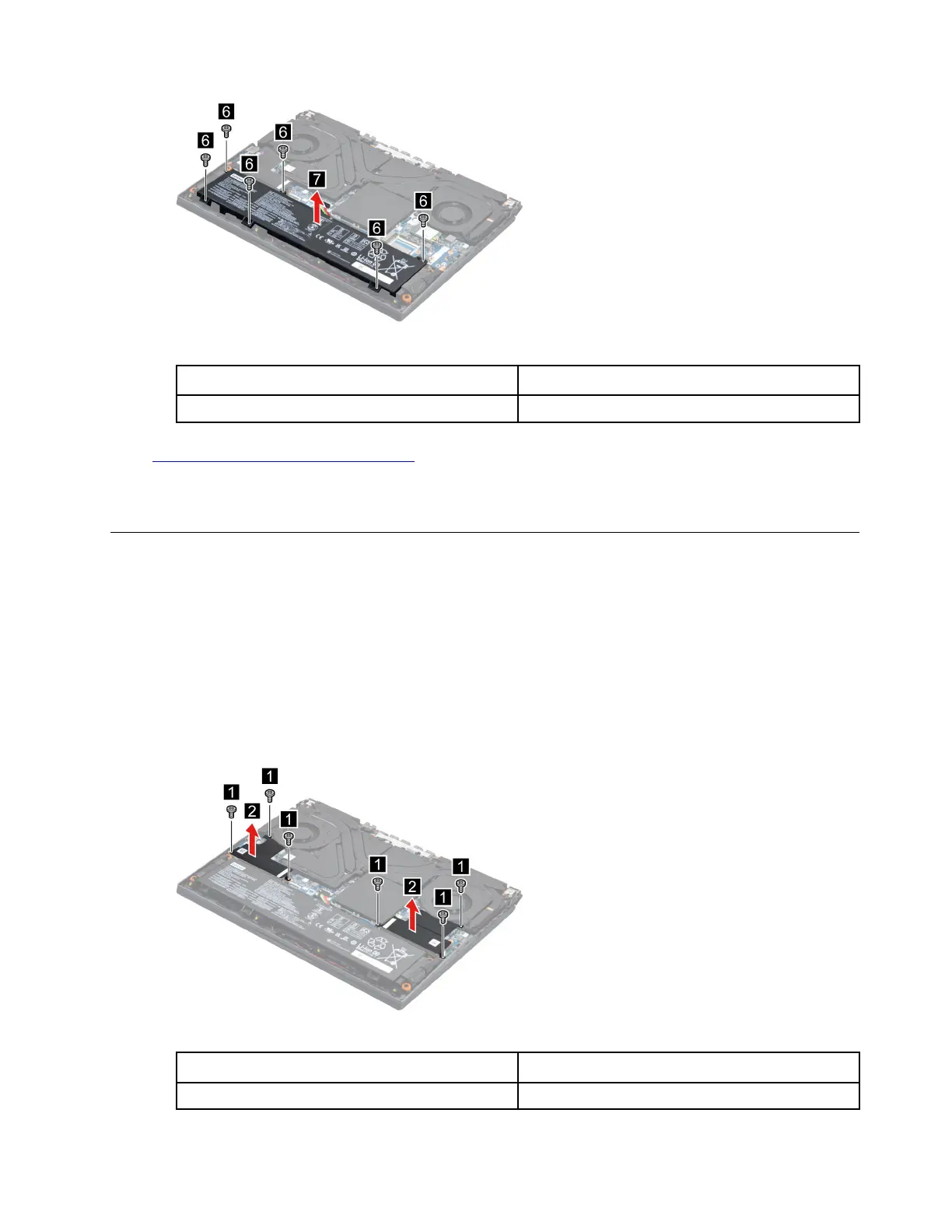

Figure 9. Remove the battery pack
Screw specifications
Number of screws
M2 x L4.5 6
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Battery pack
Remove the solid-state drive (SSD) plate
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 30
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove six screws and then remove the SSD plate carefully.
Note: If your computer includes two SSD drives, there are two SSD plates.
Figure 10. Remove the SSD plate
Screw specifications Number of screws
M2 x L4.5 6
Chapter 4. Removing a FRU or CRU 33
