Remove the LCD bezel (with removable tape)
Make sure the following FRU (CRU) has been removed.
“Remove the LCD module” on page 45
Step 1. Remove the LCD bezel.
Note: The LCD bezel is fragile and should be replaced if damaged.

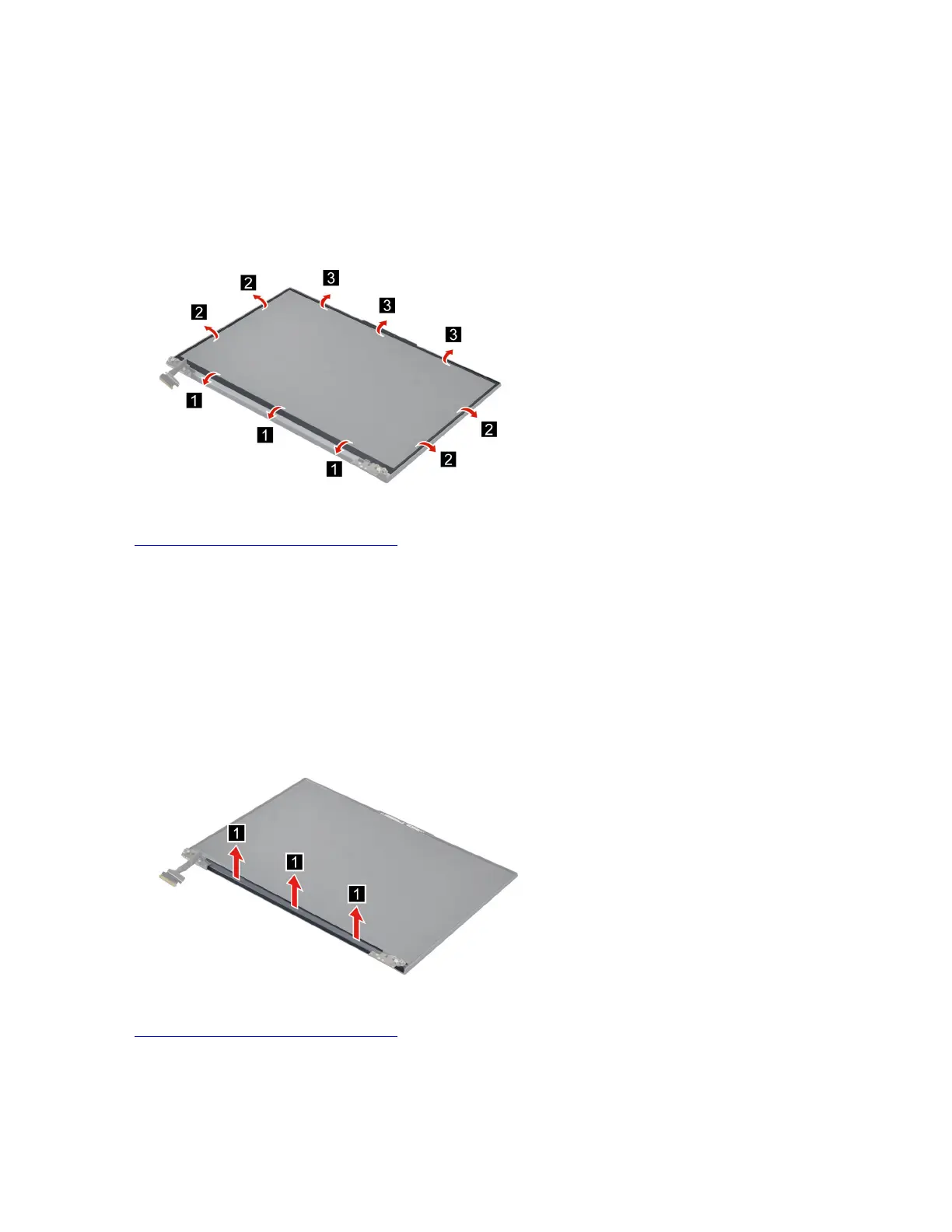

Figure 33. Remove the LCD bezel
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
LCD bezel (with removable tape)
Remove the hinge cover
Make sure the following FRUs (CRUs) have been removed.
“Remove the LCD module” on page 45
“Remove the LCD bezel (with removable tape)” on page 48
Step 1. Remove the hinge cover.
Figure 34. Remove the hinge cover
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Hinge cover
48
Hardware Maintenance Manual
To Next Page
