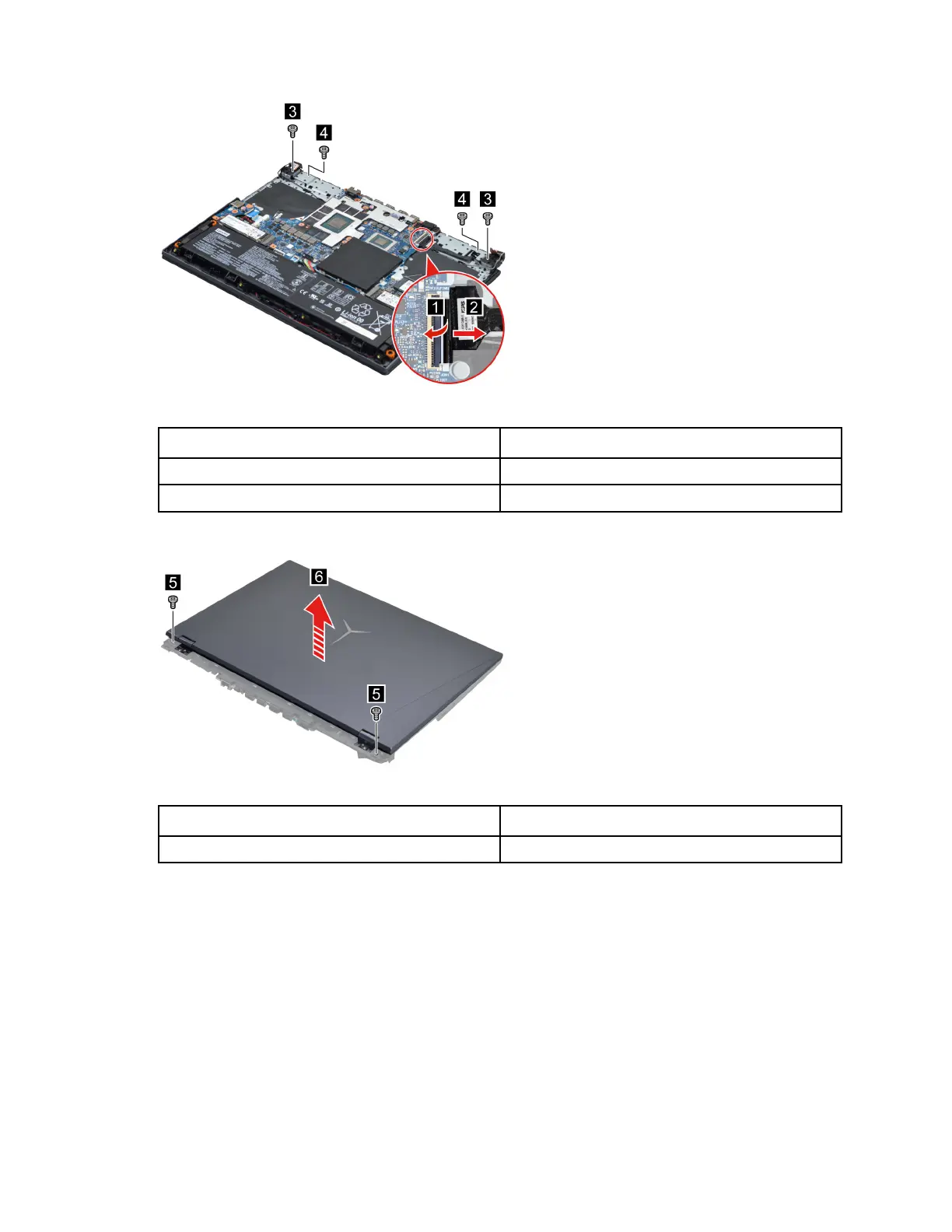

Figure 30. Disconnect the EDP cable from the system board and then remove four screws
Screw specifications Number of screws
M2.5 x L7 2
M2 x L3.0 2
Step 2. Turn over the computer and remove two screws. Lift the LCD module carefully.
Figure 31. Turn over the computer and remove two screws. Lift the LCD module carefully
Screw specifications
Number of screws
M2.5 x L7 2
Step 3. Take out the EDP cable and then remove the LCD module.
46
Hardware Maintenance Manual
