Spécifications techniques

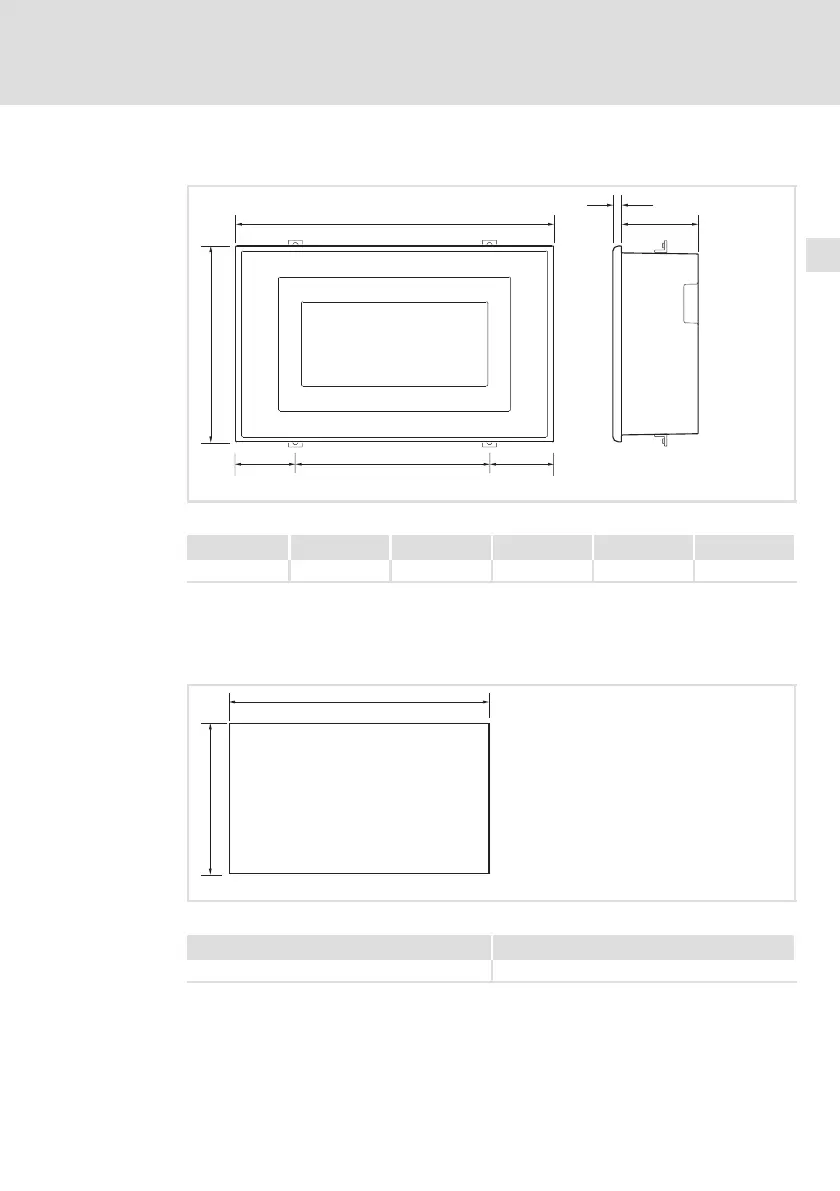

Encombrements
2

105
EDBPM−H502 DE/EN/FR 5.1
2.3 Encombrements
a
d
e
c
f
c
b
h502_001
Fig.2−2 Encombrements
a [mm] b [mm] c [mm] d [mm] e [mm] f [mm]
166.0 100.0 32.0 4.0 39.6 102.0
2.4 Encoche de montage
a
b
h502_02
Fig.2−3 Encoche de montage
a [mm] b [mm]
157.0 91.0
