Technische Daten
Elektrische Daten
Schnittstellenbeschreibung
2
18
EDBPM−H502 DE/EN/FR 5.1
2.2.2 Schnittstellenbeschreibung
12
3
4
5
678
h310_010

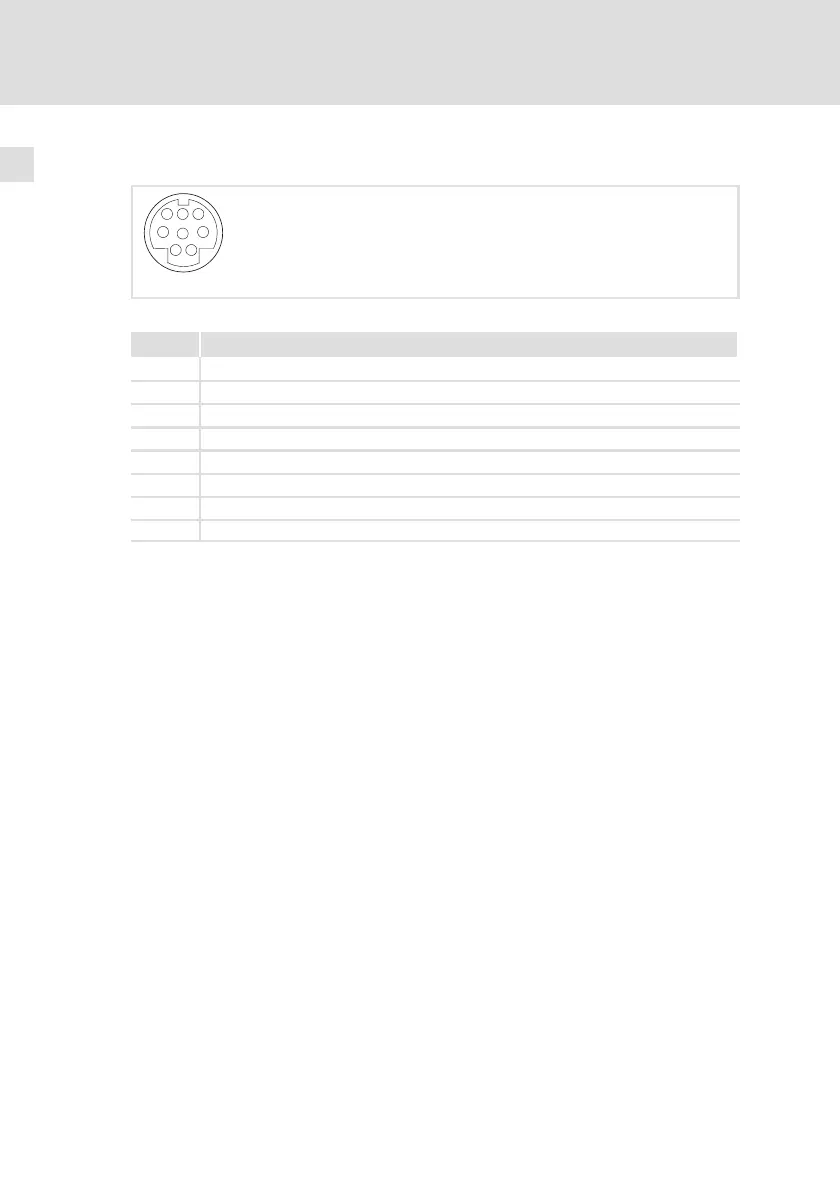

Abb. 2−1 ASP8 Minidin 8pol. Buchse
Pin Signal
1 Rx RS232 IN
2 Tx RS232 OUT
3 n. c.
4 RTS RS232 OUT
5 CTS RS232 IN
6 n. c.
7 Signal GND
8 +5 VCC (reserved)
n.c. Nicht angeschlossen
