Lenze EPM-H502 User Manual

Technical data
Dimensions
2

62
EDBPM−H502 DE/EN/FR 5.1

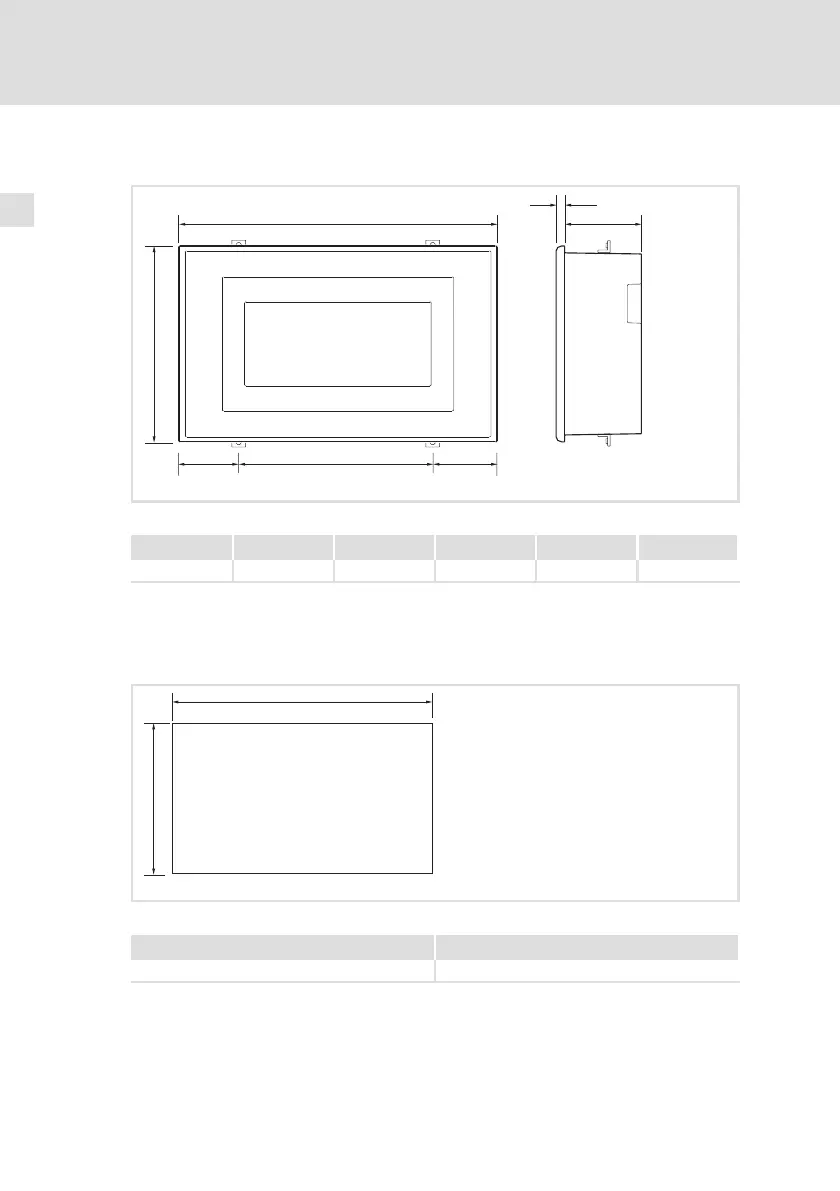

2.3 Dimensions
a
d
e
c
f
c
b
h502_001
Fig. 2−2 Dimensions
a [mm] b [mm] c [mm] d [mm] e [mm] f [mm]
166.0 100.0 32.0 4.0 39.6 102.0
2.4 Mounting cutout
a
b
h502_02
Fig. 2−3 Mounting cutout
a [mm] b [mm]
157.0 91.0

Lenze EPM-H502 Specifications

General

Brand	Lenze
Model	EPM-H502
Category	Control Unit
Language	English
