Lenze i550 Series Instruction Manual

8
Mechanical installaon
Operang Instrucons i550-Cabinet
B
X
X
E2
E1
H
H1
H: Device height X/Y: Number of top/bottom fixings
B: Device width (Y not visible in the illustration)
T: Device depth X - X: Hole spacing over center of device
H1: Hole dimension for top/bottom fixing E1: Top mounting clearance
E2: Bottom mounting clearance

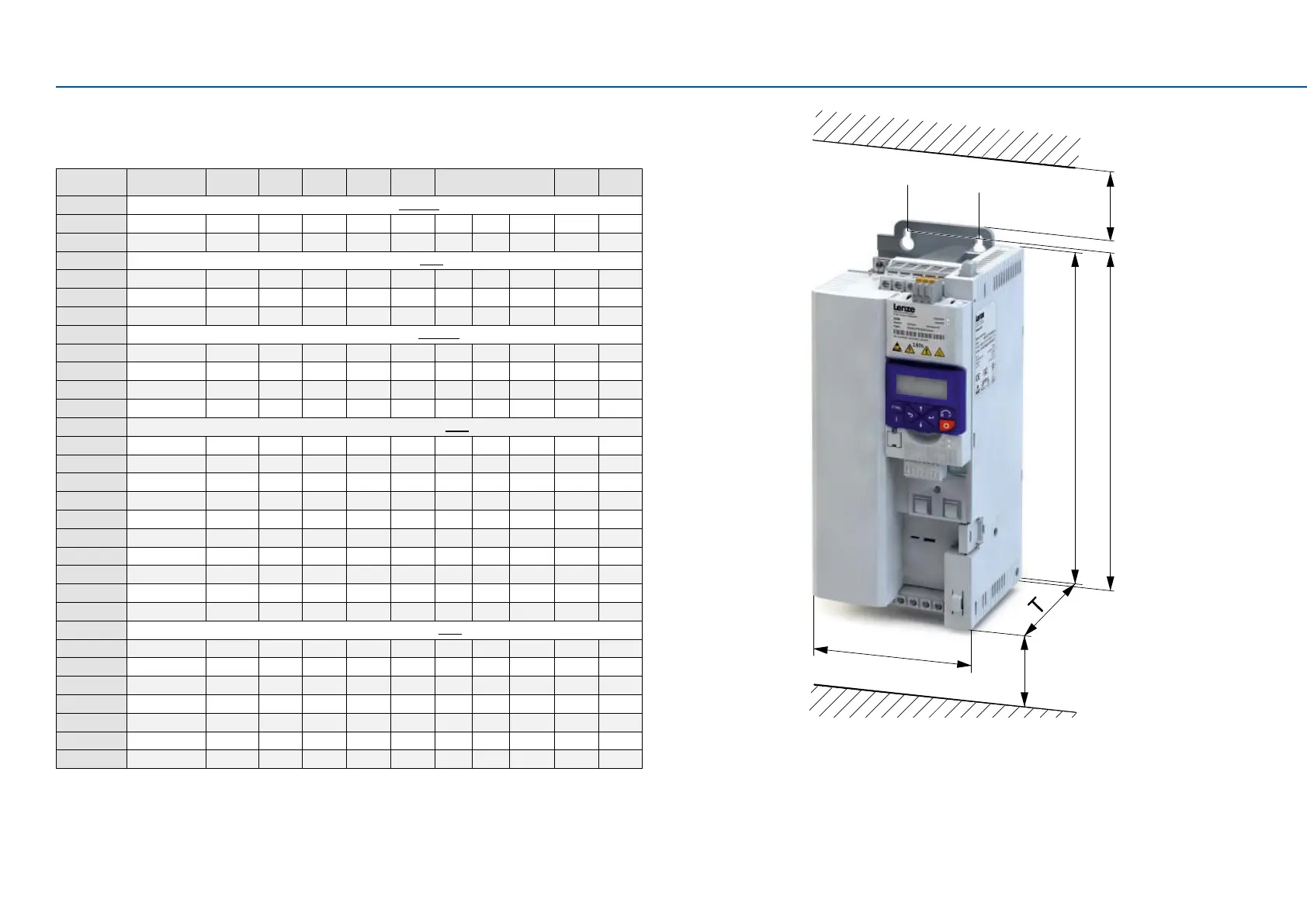

4 Mechanicalinstallaon
4.1 Dimensions and assembly
Rated power
[kW]
Weight
[kg]
H
[mm]
B
[mm]
T
[mm]
H1
[mm]
X/Y [screws + hole
spacing]
E1
[mm]
E2
[mm]
1-phasemainsconnection120V;without integrated RFI filter
I55AExxxA
0.25 ... 0.37 1 180 60 130 190 1/1 - M5 50 50
I55AExxxA
0.75 ... 1.1 1.35 250 60 130 260 1/1 - M5 50 50
1-phasemainsconnection230/240V;with integrated RFI filter
I55AExxxB
0.25 ... 0.37 0.8 155 60 130 165 1/1 - M5 50 50
I55AExxxB
0.55 ... 0.75 1 180 60 130 190 1/1 - M5 50 50
I55AExxxB
1.1 ... 2.2 1.35 250 60 130 260 1/1 - M5 50 50
1-/3-phasemainsconnection230/240V;without integrated RFI filter
I55AExxxD
0.25 ... 0.37 0.8 155 60 130 165 1/1 - M5 50 50
I55AExxxD
0.55 ... 0.75 1 180 60 130 190 1/1 - M5 50 50
I55AExxxD
1.1 ... 2.2 1.35 250 60 130 260 1/1 - M5 50 50
I55AExxxC
4 ... 5.5 2.1 250 90 130 260 1/1 - M5 50 100
3-phasemainsconnection400V...HeavyDuty;with integrated RFI filter
I55AExxxF
0.37 0.8 155 60 130 165 1/1 - M5 50 50
I55AExxxF
0.55 ... 0.75 1 180 60 130 190 1/1 - M5 50 50
I55AExxxF
1.1 ... 2.2 1.35 250 60 130 260 1/1 - M5 50 50
I55AExxxF
3 ... 5.5 2.1 250 90 130 260 2/2 30 M5 50 100
I55BExxxF
3 ... 4 1.35 250 60 130 260 1/1 - M5 50 50
I55AExxxF
7.5 ... 11 3.7 276 120 130 285 2/2 60 M5 50 100
I55AExxxF
15 ... 22 10.3 347 204.5 222 343 2/2 180 M6 50 100
I55AExxxF
30 ... 45 17.2 450 250 230 496 2/2 210 M8 95 120
I55AExxxF
55 ... 75 24 536 250 265 596 2/2 210 M8 95 260
I55AExxxF
90 ... 110 35.6 685 258 304 748 2/2 210 M8 95 260
3-phasemainsconnection400V-LightDuty;with integrated RFI filter
I55AExxxF
4 ... 7.5 2.3 250 90 130 260 2/2 30 M5 50 100
I55BExxxF
3 ... 4 1.35 250 60 130 260 1/1 - M5 50 50
I55AExxxF
11 ... 15 3.7 276 120 130 285 2/2 60 M5 50 100
I55AExxxF
18.5 ... 30 10.3 347 204.5 222 343 2/2 180 M6 50 100
I55AExxxF
37 ... 55 17.2 450 250 230 496 2/2 210 M8 95 120
I55AExxxF
75 ... 90 24 536 250 265 596 2/2 210 M8 95 260
I55AExxxF
110 ... 132 35.6 685 258 304 748 2/2 210 M8 95 260

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
