Lenze i550 Series Instruction Manual

11
Electrical installaon
Operang Instrucons i550-Cabinet

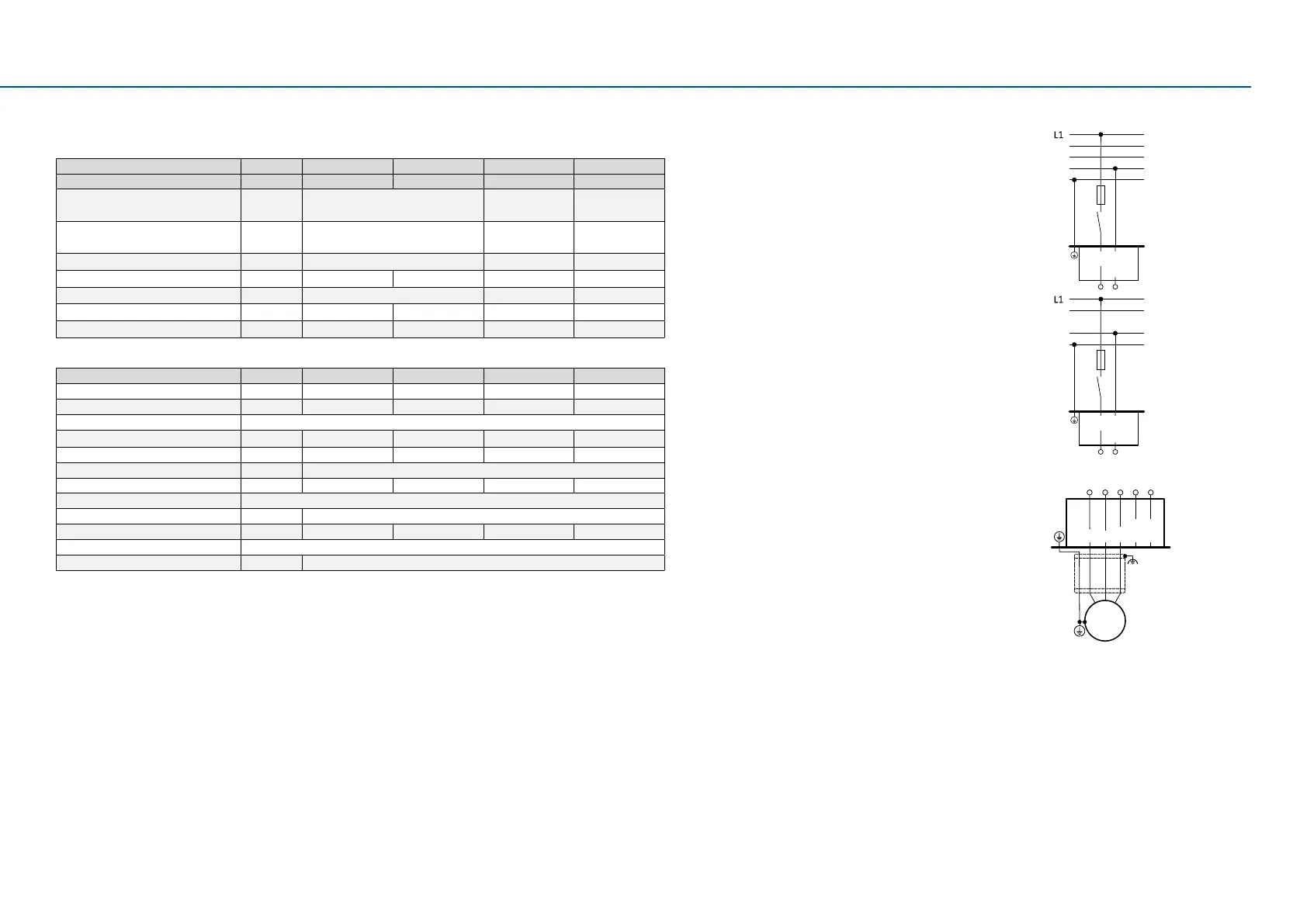

5.6 1-phasemainsconnecon120V
Terminaldata,1-phase120V
I55AxxxA I55AxxxA I55AxxxA I55AxxxA
Inverter [kW] 0.25 ... 0.37 0.75 ... 1.1 0.25 ... 1.1 0.25 ... 1.1
Connecon Mains connecon X100 PE connecon
Motor
connecon X105
Connecon type Pluggable screw terminal PE screw Pluggable screw
terminal
Min. cable cross-secon mm² 1 1.5 1
Max. cable cross-secon mm² 2.5 6 6 2.5
Stripping length mm 8 10 8
Tightening torque Nm 0.5 0.7 2 0.5
Tools required 0.5 x 3.0 0.6 x 3.5 Torx 20 0.5 x 3.0
Fusing data
Inverter [kW] 0.25 0.37 0.75 1.1
Rated output current (8 kHz) A 1.7 2.4 4.2 6
Max. output current (15 s) A 2.6 3.6 6.3 9
Operaonwithoutmainschoke
Rated mains current A 6.8 9.6 16.8 22.9
Fuse
Characterisc gG/gL or gRL
Max. rated current A 16 16 25 25
Circuit breaker
Characterisc B
Max. rated current A 16 16 25 25
Earth-leakage circuit breaker
1-phase mains connecon ≥ 30 mA, type B
Mainsconnecon
1/N/PE
AC 90 V ... 132 V
45 Hz ... 65 Hz
F1
Q1
X100
L1
L2/N
PE
N
L3
L2
3/N/P
AC 208 V ... 240 V
1/N/PE
AC 90 V ... 132 V
45 Hz ... 65 Hz
F1
Q1
X100
L1
L2/N
PE
N
L2
2/N/PE
AC 208 V ... 240 V
Motorconnecon
X105
U V W Rb1 Rb2
M
3~

Lenze i550 Series Specifications

General

Protection Class	IP20
Ambient Temperature	-10°C to +50°C
Overload Capacity	150% for 60 seconds
Control Type	Vector control
Communication Interfaces	CANopen, Modbus, Ethernet, PROFIBUS, PROFINET
Safety	STO (Safe Torque Off)
Frequency Range	0 Hz
Cooling Method	Air cooling
Storage Temperature Range	-25°C to +70°C
Input Voltage Range	3-phase 380...480 V AC -15%/+10%
