Lenze i700 Series User Manual

Technical data
Terminal description
Axis modules
4
l
62
EDS700ACBA EN 5.1

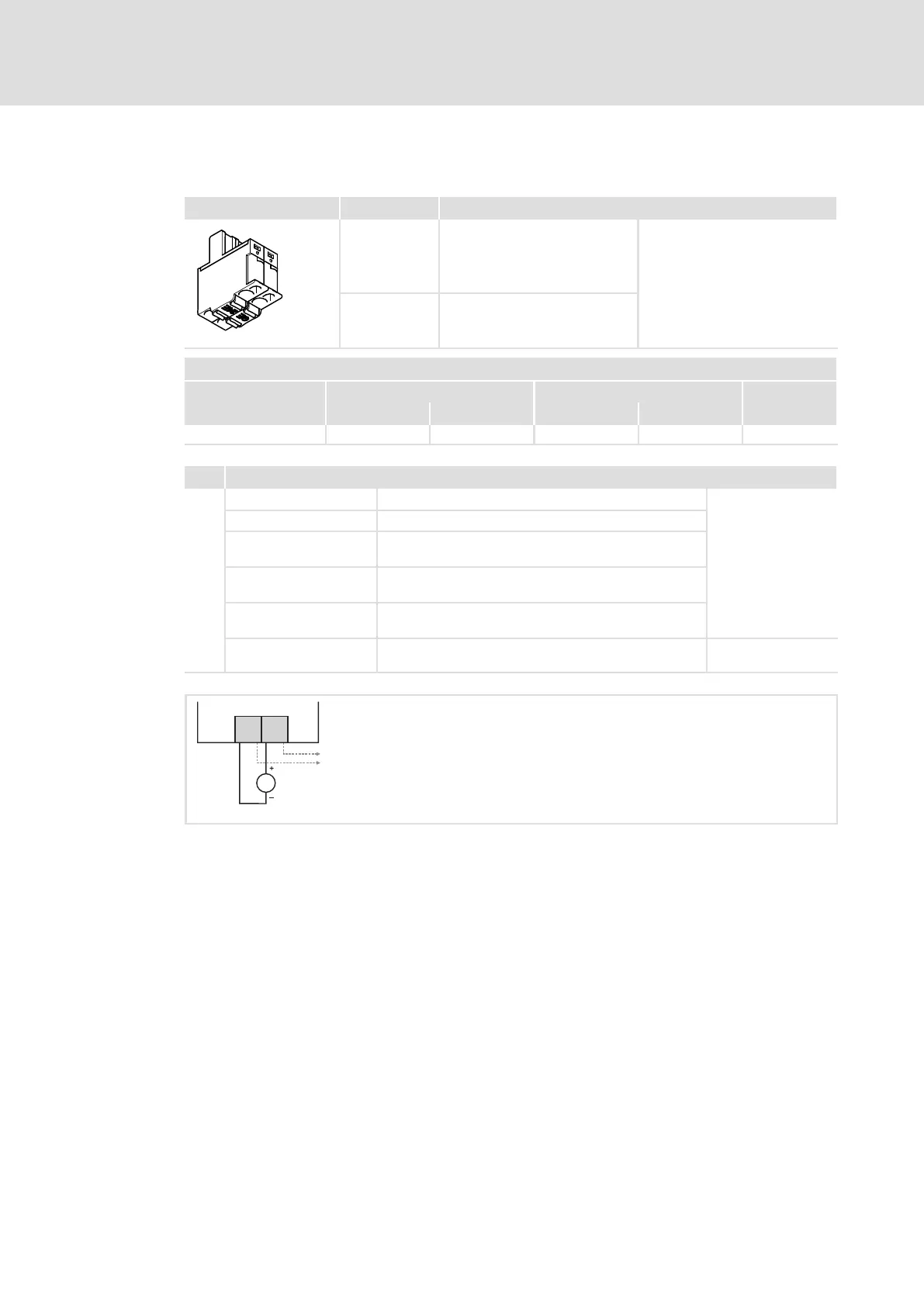

Brake connection
X105 Labelling Description
24E 24 V supply voltage for motor
holding brakes
On double axis devices, there is
one of these connections.
The motor holding brakes of axis
A and B are supplied.
GE Reference potential GND
i700P00x
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
flexible 0.2 ... 2.5 24 ... 12 − − 3.5 x 0.6
X105 Electrical data
24E
GE
Rated voltage 24 V
The supply voltage
of the motor holding
brake must be
independent.
A safely separated
supply is not
required.
^ 87
Voltage range 18 ... 30 V
Current consumption Corresponding to the connected brake
Terminal current when
looped through
With 1.5 mm
2
: max. 10 A
With 2.5 mm
2
: max. 16 A
Polarity reversal
protection
When the polarity is reversed: no function and no
destruction.
Cable protection Circuit breaker with tripping characteristic B or C
Standard blade−type fuses
£ 20 A, ³ 30 V
X105
DC 24 V
X105
24E
GE
i700M00x
Fig. 7 Wiring of X105
X105 Supply voltage connection of motor holding brake, can be looped through
24E 24−V supply voltage for motor holding brakes
GE Reference potential

Lenze i700 Series Specifications

General

Product Category	Inverter
Series	i700
Protection Class	IP20
Frequency Range	0 to 599 Hz
Control Type	Vector control
Communication Interfaces	EtherCAT, CANopen
Safety	STO (Safe Torque Off), SS1 (Safe Stop 1)
Overload Capacity	200% for 3 seconds
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Ambient Temperature	-10°C to +50°C
Voltage	400 V
Input Voltage	3-phase AC
