Technical data
Terminal description
Axis modules
4
l
64
EDS700ACBA EN 5.1

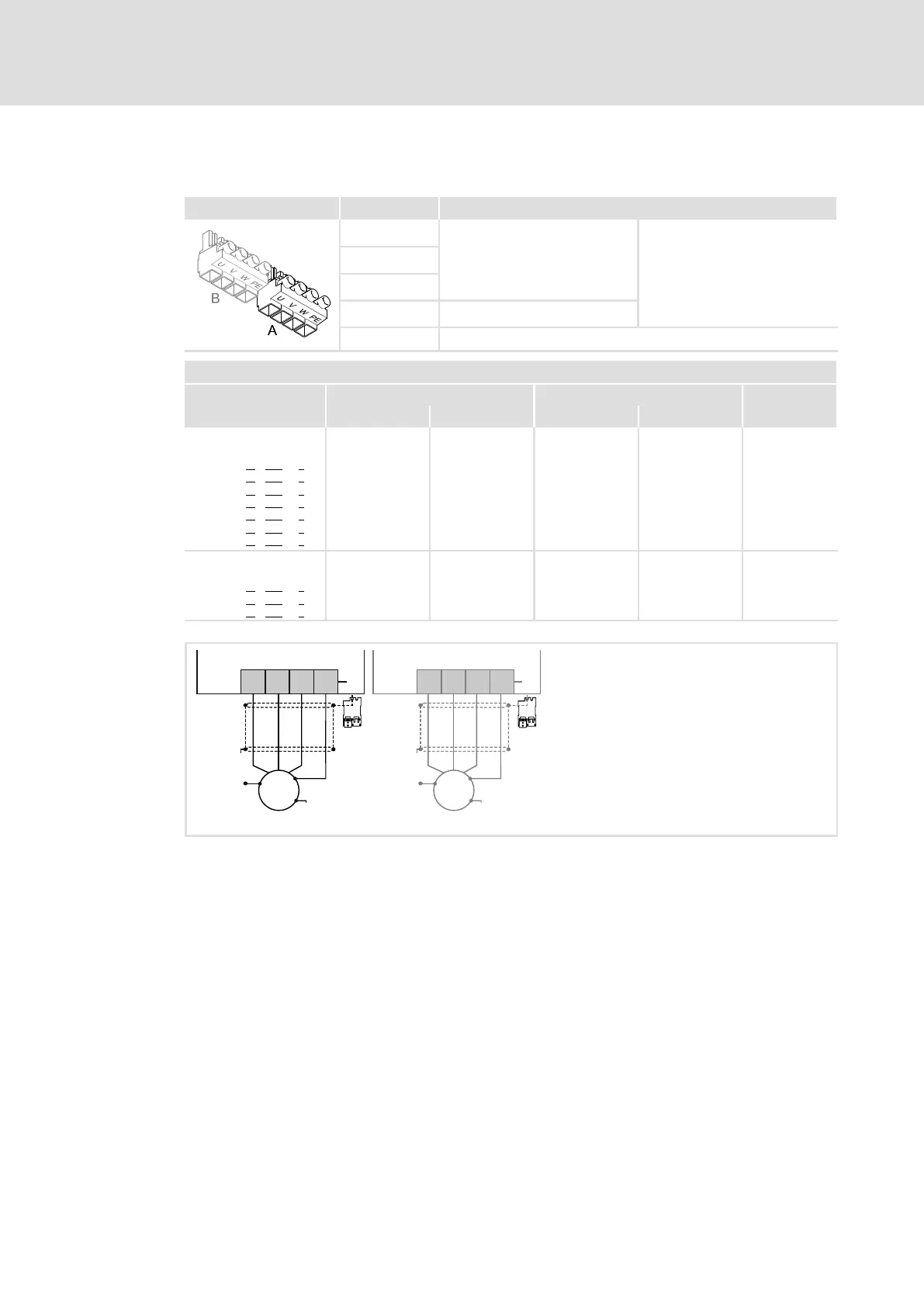

Motor connection
X107/108 Labelling Description
V
Motor phases On double axis devices, there are
two of these connections.
Assignment of the axes:
l Axis "A" = X108
l Axis "B" = X107
V
W
PE Motor earthing +
" Shield connection at the shield sheet
i700P00x
Terminal data
Conductor cross−section Tightening torque
!
[mm
2
] [AWG] [Nm] [lb−in]
flexible
for the devices
E70ACM
xx0054xx1xxx
E70ACM
xx0104xx1xxx
E70ACM
xx0204xx1xxx
E70ACM
xx0054xx2xxx
E70ACM
xx0104xx2xxx
E70ACM
xx0204xx2xxx
E70ACM
xx0324xx2xxx
0.2 ... 4 24 ... 12 0.5 4.4 3.5 x 0.6
flexible
for the devices
E70ACM
xx0324xx1xxx
E70ACM
xx0484xx1xxx
E70ACM
xx0644xx1xxx
0.5 ... 16 22 ... 6 1.5 13.3 5.5 x 1
PE WV
U
+
"
X107
(B)
"
"
M
3~
+
X108
"
+
PE WV
U
(A)
"
"
M
3~
+
i700S010 9
Fig. 9 Wiring of X107 or X108
X107, X108 Connection of motor|s
A 1−axis module: axis A
B Additionally for 2−axis module: axis B
" Functional earth ", shield connection

Lenze i700 Series Specifications

General

Product Category	Inverter
Series	i700
Protection Class	IP20
Frequency Range	0 to 599 Hz
Control Type	Vector control
Communication Interfaces	EtherCAT, CANopen
Safety	STO (Safe Torque Off), SS1 (Safe Stop 1)
Overload Capacity	200% for 3 seconds
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Ambient Temperature	-10°C to +50°C
Voltage	400 V
Input Voltage	3-phase AC
