Lexicon MC-8 User Manual

Basic Operation Lexicon
2-14
COMMAND MATRIX

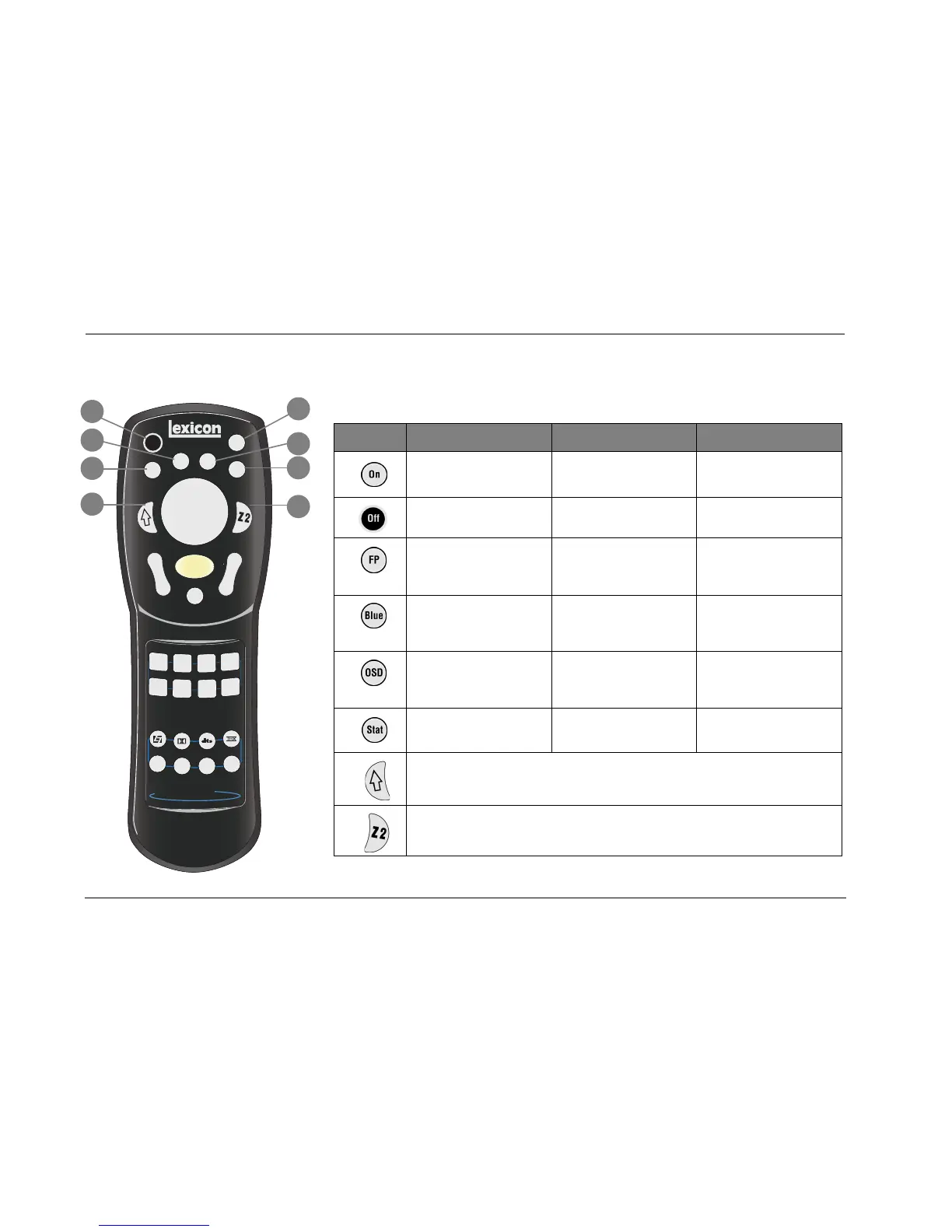

The command matrix describes the commands that the remote control buttons perform when
each command bank is active.
Button Main Zone Zone 2 Shift
1
Deactivates standby mode and
activates the MC-8.
Reserved for future possibilities. Reserved for future possibilities.
2
Activates standby mode and
deactivates the MC-8.
Deactivates Zone 2. Deactivates the Main Zone.
3
Toggles the FRONT PANEL
DISPLAY menu STATUS
parameter between ALWAYS OFF
and its current setting.
Centers the AUDIO CONTROLS
menu ZONE2 BALANCE
parameter.
Centers the AUDIO CONTROLS
menu Main Zone BALANCE and
FADER parameters.
4
Toggles the ON-SCREEN
DISPLAY menu BACKGROUND
parameter between ON and
OFF.
Sets the AUDIO CONTROLS
menu BASS, TREBLE and TILT EQ
parameters to +0.0dB.
Deactivates the trigger output
connector labeled 1 when the
connector is configured for
remote operation.
5
Toggles the ON-SCREEN
DISPLAY menu STATUS
parameter between ON and
OFF.
Reserved for future possibilities. Activates the trigger out put
connector labeled 1 when the
connector is configured for
remote operation.
6
Displays the Main Zone two-line
status for 2 seconds.
Displays the Zone 2 two-line
status for 2 seconds.
Toggles between opening and
closing the STATUS menu for the
current input source.
7
Activates an additional bank of commands that control the Main Zone. Refer to the previous page for
more information.
8
Activates an additional bank of commands that control Zone 2. Refer to the previous page for more
information.
Light
Off
Zone 2
